NB-IoT Smart Meter Solutions

Enabling Remote Monitoring and Control for Energy Infrastructure and Utilities

SRP-E2i130

NB-IoT Smart Meter Solutions

NB-IoT is a wireless communications protocol designed by 3GPP. It accommodates massive deployment by leveraging 4G LTE networks provided by regional telecom operators. NB-IoT’s wireless module solutions, together with the telecom SIM card, Arm Pelion device management platform, and WISEPaaS application server, easily enable a range of smart city applications such as smart street light control, smart meters, and smart parking. Furthermore, 3GPP specifically designed the NB-IoT protocol with a low power consumption mode to fit specific smart city application scenarios.

Advantech's NB-IoT solution ready platform is designed specifically for smart meter systems through a data communication interface allowing for seamless communication with the NB-IoT wireless module. A telecom SIM card is inserted into the module, allowing for the easy transmission and reception of data to/from Arm Pelion and the WISE-PaaS Smart Meter Service. Device-to-cloud solution ready platforms provide remote wireless monitoring and control for hundreds of millions of smart meter devices.

Software Diagram

[M2i130_id_2]

System Diagram

Feature Highlights

Application Story

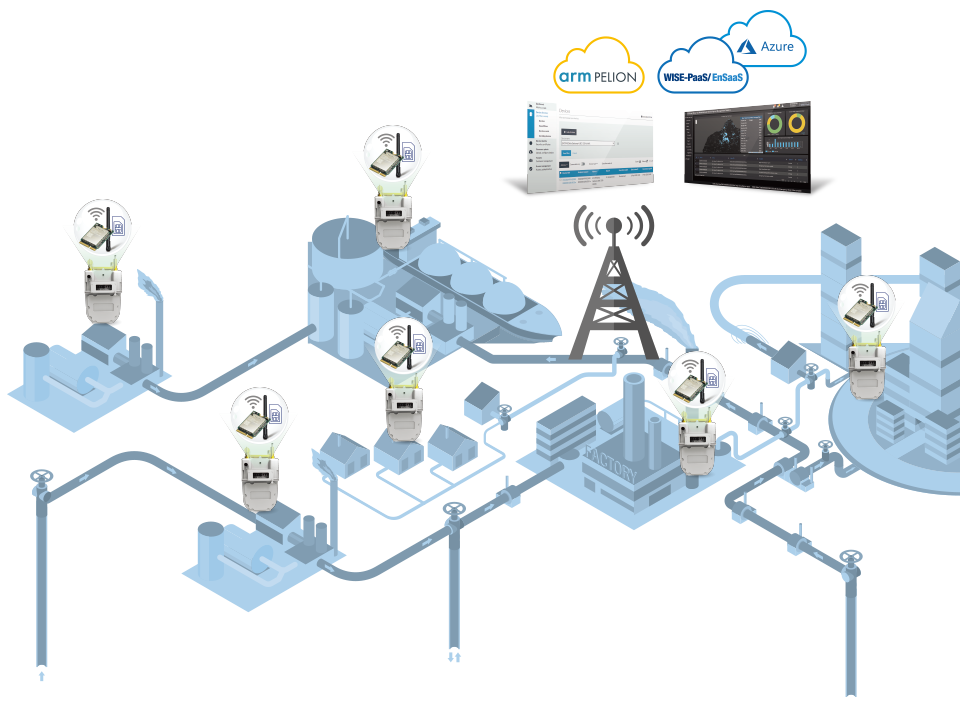

Upgrading Gas Infrastructure and Utilities: From Wired to Wireless

  • Massive deployment becomes easy by leveraging telecom network as IaaS
  • Low-power consumption techniques following the 3GPP standard
  • Rich sensor interface and mbed OS peripheral API for client devices
  • Arm Pelion device management platform support
  • WISEPaaS/EdgSense application server support
Upgrading Gas Infrastructure and Utilities: From Wired to Wireless

SRP Visualization

Arm Pelion Device Management

Arm Pelion Device Management
1

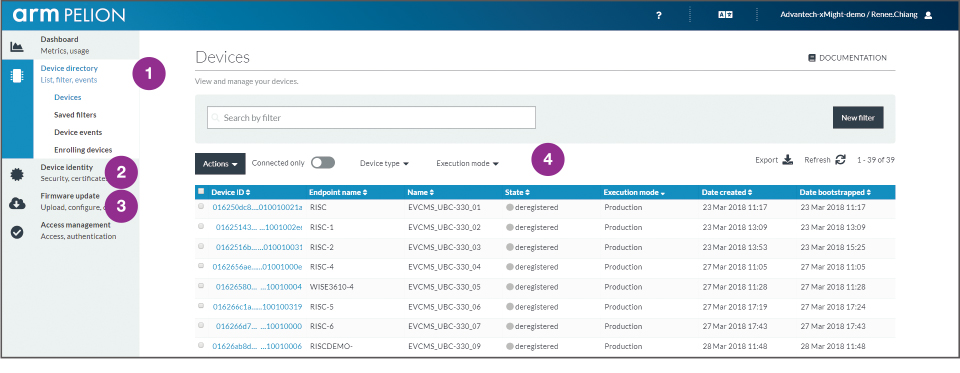

Arm Pelion device management, filtering with event alerts, and device enrolling

2

Arm Pelion device provision with secure features

3

Arm Pelion device firmware update

4

Arm Pelion device ID, name, and status list for management

Smart Meter Frontend Server

Smart Meter Frontend Server
1

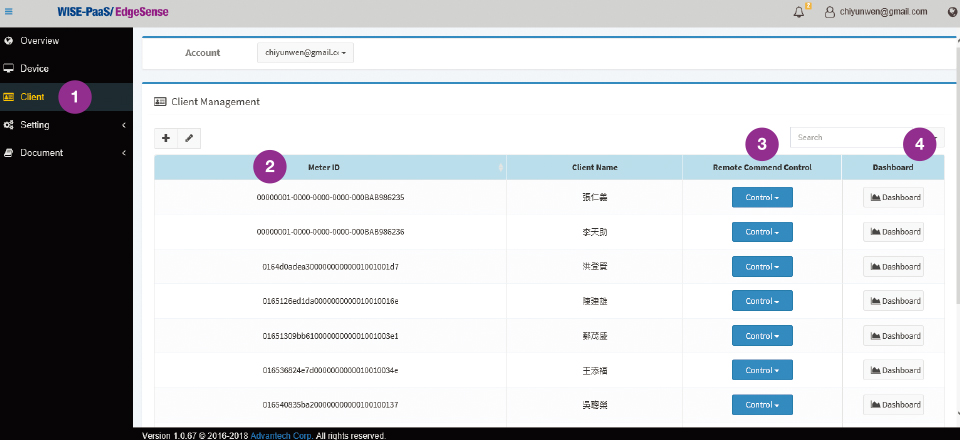

Device user information page displays meter list with control interface

2

Add, edit, or delete user device and show device ID and user information

3

Remote control icon offers interactive interface to downlink control device

4

Interface icon links to single user’s information page

Smart Meter Dashboard - Regional

Smart Meter Dashboard - Regional
1

In-device longitude and latitude reporting allows for regional view of user device location

2

Event alerts and information reporting from the device with status, location, and reporting time

3

Summarizes overall smart meter status and usage percentage

4

Tracks monthly totals of energy input and output for quantity comparison and ROI analysis

Smart Meter Dashboard - Single Device

Smart Meter Dashboard - Single Device
1

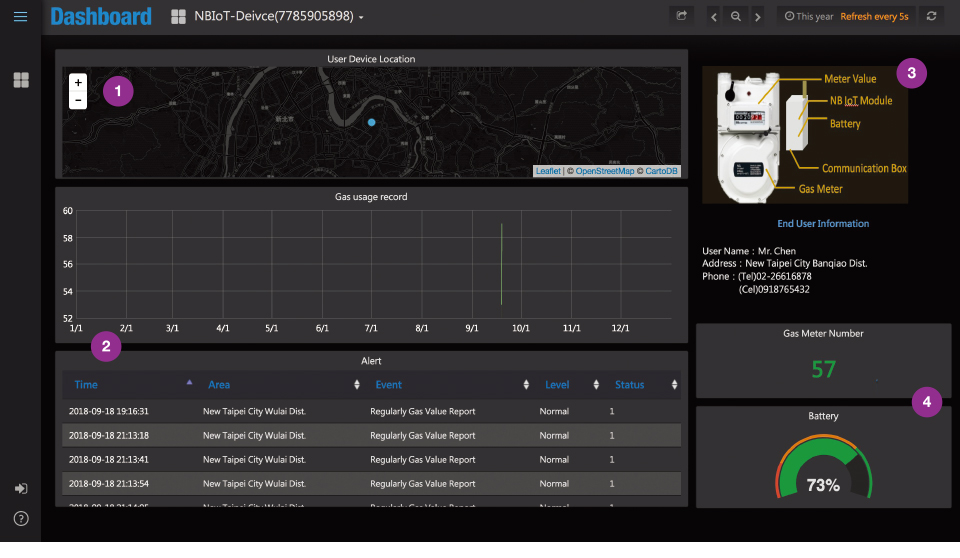

Pinpoint individual user device location with precise longitude and latitude reporting from the device

2

Track energy usage, recieve event alerts, and get history/status reports for individual smart meter devices

3

Track individual user and smart meter device information

4

Get the latest smart meter reading numbers and wireless communication device battery life status
