USC-130

11.6" RISC base all in one

Color

• Color

  USC-130AP-BC106	Black/White
  USC-130AP-BC206	Black/White

Display

• Size

  USC-130AP-BC106	11.6" TFT LCD
  USC-130AP-BC206	11.6" TFT LCD

• Max. Resolution

  USC-130AP-BC106	HD (1366 x 768) ; Optional FHD (1920 x 1080)
  USC-130AP-BC206	HD (1366 x 768) ; Optional FHD (1920 x 1080)

• Brightness

  USC-130AP-BC106	250 cd/m²
  USC-130AP-BC206	250 cd/m²

Processor System

• CPU

  USC-130AP-BC106	Rockchip RK3288 quad-core Cortex™-A17 (up to 1.8 GHz)
  USC-130AP-BC206	Rockchip RK3399 dual-core Cortex™-A72 (up to 1.8 GHz)/quad-core Cortex™-A53 (up to 1.4 GHz)

• RAM

  USC-130AP-BC106	2 GB onboard (4 GB optional)
  USC-130AP-BC206	2 GB onboard (4 GB optional)

• OS

  USC-130AP-BC106	Android 8.1/10, Ubuntu 18.04
  USC-130AP-BC206	Android 8.1/10, Ubuntu 18.04

• Storage

  USC-130AP-BC106	16 GB onboard eMMC (32 GB optional)
  USC-130AP-BC206	16 GB onboard eMMC (32 GB optional)

Touch Screen

• Type

  USC-130AP-BC106	Projected Capacitive Touch Panel (Pcap. Flat Glass)
  USC-130AP-BC206	Projected Capacitive Touch Panel (Pcap. Flat Glass)

Enviroment

• Operating Humidity

  USC-130AP-BC106	10 ~ 95% @ 40°C non-condensing
  USC-130AP-BC206	10 ~ 95% @ 40°C non-condensing

• Operating Temperature

  USC-130AP-BC106	0~40° C
  USC-130AP-BC206	0~40° C

Power Supply

• Input Voltage

  USC-130AP-BC106	36W 12V power adapter
  USC-130AP-BC206	36W 12V power adapter

I/O Interface

• Serial Port

  USC-130AP-BC106	1x COM(RS-232/485), 2 x RS232(optional)
  USC-130AP-BC206	1x COM(RS-232/485), 2 x RS232(optional)

• USB Port

  USC-130AP-BC106	2 x USB 2.0, 2 x USB 2.0(optional)
  USC-130AP-BC206	2 x USB 3.0, 2 x USB 2.0(optional)

• Ethernet

  USC-130AP-BC106	1x Gigabit LAN(with PoE)
  USC-130AP-BC206	1x Gigabit LAN(with PoE)

• Output

  USC-130AP-BC106	1 x HDMI
  USC-130AP-BC206	1 x HDMI

• Audio

  USC-130AP-BC106	1 x Audio Phone Jack
  USC-130AP-BC206	1 x Audio Phone Jack

• Extendable Slot

  USC-130AP-BC106	Full-size Mini PCIe
  USC-130AP-BC206	Full-size Mini PCIe

Peripheral

• WLAN

  USC-130AP-BC106	IEEE 802.11a/b/g/n/ac (2T2R)
  USC-130AP-BC206	IEEE 802.11a/b/g/n/ac (2T2R)

• NFC/RFID Reader

  USC-130AP-BC106	Embedded RFID module (1443A/B, 15693, Filcon)
  USC-130AP-BC206	Embedded RFID module (1443A/B, 15693, Filcon)

• Bluetooth

  USC-130AP-BC106	Bluetooth® v4.2
  USC-130AP-BC206	Bluetooth® v4.2

Weight (kg)

• Weight (kg)

  USC-130AP-BC106	2.0 kg
  USC-130AP-BC206	2.0 kg

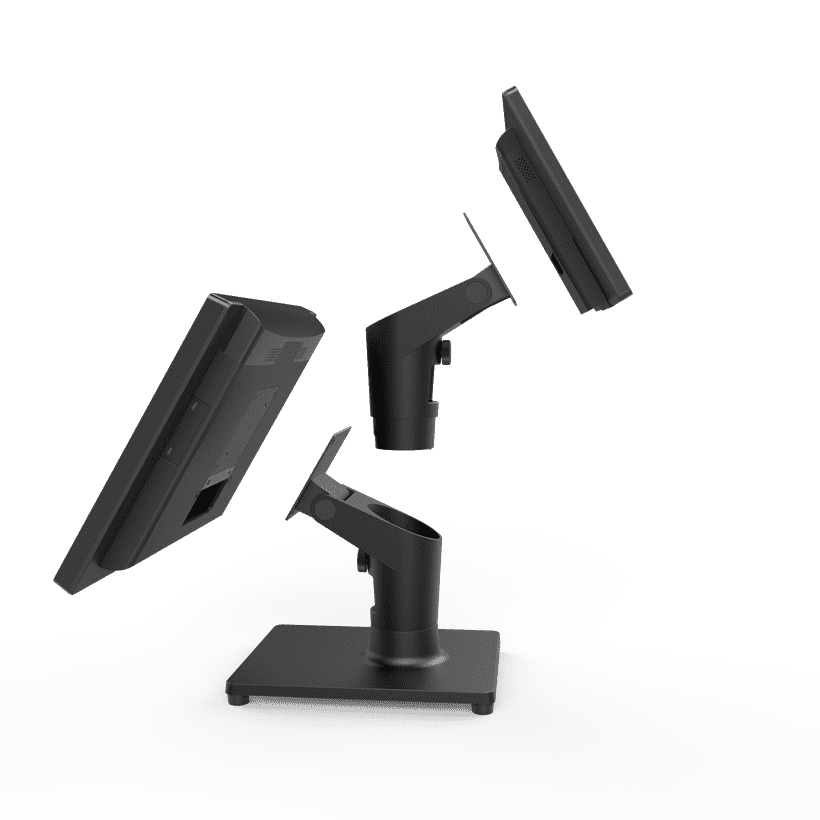

VESA Mounting Patterns

• VESA Mounting Patterns

  USC-130AP-BC106	75 x 75 mm
  USC-130AP-BC206	75 x 75 mm
