- PCIe to 4 channel USB 2.0 port
- MiniPCIe thru PCIe signal
- Full size Mini PCIe
- Widely temperature from -40 ~ 85 degree

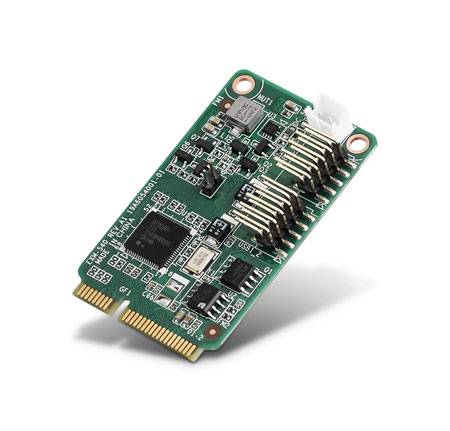

Advantech EXM-540 module is a family of PCIe to 4-Ch USB 2.0 port devices. This model, EXM-540, provides a simple method of adapting four USB 2.0 devices to a modern PCIe x 1 port. This is accomplished by incorporating the industry standard PCIe bridge chip.
The EXM-540 module is compatible with all types of USB devices, including hard drives (HDDs), Solid State Drives (SSD), and optical drives (CD/DVD/BD). A versatile solution for storage applications.
The EXM-540 module is compatible with all types of USB devices, including hard drives (HDDs), Solid State Drives (SSD), and optical drives (CD/DVD/BD). A versatile solution for storage applications.
Product Specifications Download Spec
- Part Number
- Details
-
EXM-540-MPF01E
- Type
- Communication Interface
- Interface Connector
- Channel Connector
- Protocol
- According to
- Operating Temperature
- Storage Temperature
- Supported Voltage and Current
- LED Status
- MTBF
- Dimensions (L*W*H)
- PCIe to 4-Ch USB 2.0 port
- PCIe
- MiniPCIe thru PCIe
- 4
- USB 2.0
- USB 2.0 specification
- -40 ~ +85°C
- -40 ~ +85°C
- --
- NA
- 10,500,000 hours
- 50.95 x 30 x 15 mm
Embedded I/O Modules
-
Type
EXM-540-MPF01E PCIe to 4-Ch USB 2.0 port -
Communication Interface
EXM-540-MPF01E PCIe -
Interface Connector
EXM-540-MPF01E MiniPCIe thru PCIe -
Channel Connector
EXM-540-MPF01E 4 -
Protocol
EXM-540-MPF01E USB 2.0 -
According to
EXM-540-MPF01E USB 2.0 specification -
Operating Temperature
EXM-540-MPF01E -40 ~ +85°C -
Storage Temperature
EXM-540-MPF01E -40 ~ +85°C -
Supported Voltage and Current
EXM-540-MPF01E -- -
LED Status
EXM-540-MPF01E NA -
MTBF
EXM-540-MPF01E 10,500,000 hours -
Dimensions (L*W*H)
EXM-540-MPF01E 50.95 x 30 x 15 mm
