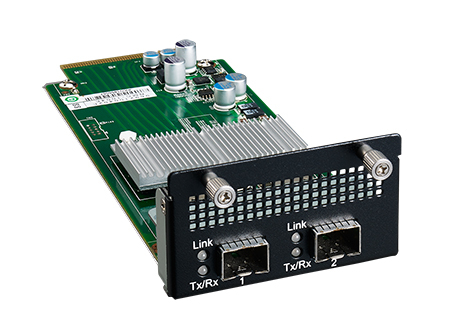

/NMC-1004_Right_B_73-min20180810151528.jpg)

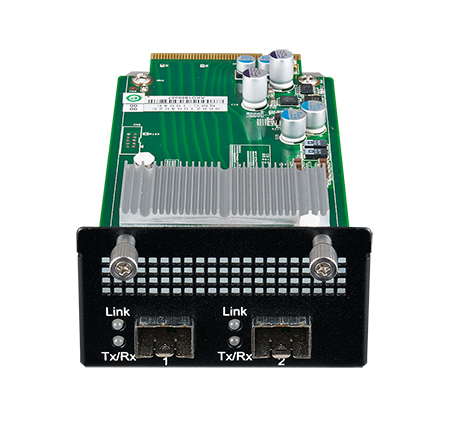

/NMC-1004_Front_B_14-min20180810151517.jpg)

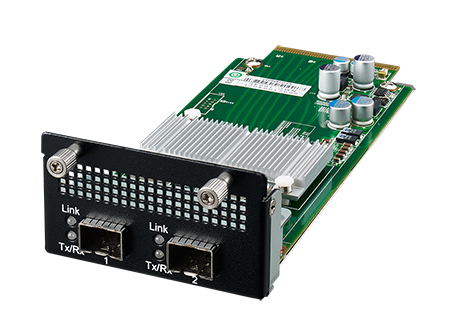

/NMC-1004_Left_B_42-min20180810151509.jpg)
- 1x Intel® 82599ES
- 2 ports SFP+ connector
- PCI-E 2.0 x8
- NC-SI for IPMI Management
- RoHS compliant
NMCs are cost-optimized, high density IO modules for use in Advantech’s Network Application Platforms. A wide choice of GbE, 10GE and 40GE modules supporting copper and fiber interfaces with or without advanced LAN bypass gives our customers the flexibility to match varying deployment scenarios. Complementing a full range of network appliances supporting 1 to 8 NMC bays, these IO modules provide the scalability required to meet target price/performance ratios in even the most demanding use cases. At the same time, NMCs reduce the total cost of ownership and service cost via re-usability across the product range and multiple product generations. The option of factory and field installation enables upselling opportunities and "pay as you grow" concepts.
Leveraging best-in-class Intel® Ethernet controller technology, NMCs provide a "it just works" user experience and a maximum of software compatibility.
Leveraging best-in-class Intel® Ethernet controller technology, NMCs provide a "it just works" user experience and a maximum of software compatibility.
Product Specifications Download Spec
- Part Number
- Details
-
NMC-1004-10E
- Controller
- 1x Intel® 82599ES
- Interface
- PCI-E 2.0 x8
- Speed
- 10GbE
- Port
- 2x SPF+ Port
- LED Definition
- Port#1 & Port#2 Indicator: Link: LED on Act: Blinking
- Advanced Software Features
- Teaming support IEEE 802.3ad IEEE 802.1Q VLANs IEEE 802.3 2005 flow control support Interrupt moderation
- Windows® Server 2012 R2, 2012, 2008 R2 X86-64 Linux RedHat EL 6.5 and 7.0 IA-32, X86-64, and IA-64 Linux SuSE SLES 11 SP3 and 12 IA-32, X86-64, and IA-64 FreeBSD 9 and 10 IA-32, X86-64, and IA-64 UEFI 2.1 and 2.3 X86-64 and I-64 VMware ESXi 5.1, ESXi 5.5 and ESXi 6.0 X86-64
- Operating Conditions
- Operation: 0°C ~ 45°C Storage: -20°C ~ 67°C
- Power Voltage & consumption
- +12V ± 15% 16W
- Dimension (mm)
- 163.7 x 74.6 x 35.5
- Compliance
- CE/FCC
Controller
-
Controller
NMC-1004-10E 1x Intel® 82599ES
Interface
-
Interface
NMC-1004-10E PCI-E 2.0 x8
Speed
-
Speed
NMC-1004-10E 10GbE
Port
-
Port
NMC-1004-10E 2x SPF+ Port
LED Definition
-
LED Definition
NMC-1004-10E Port#1 & Port#2 Indicator: Link: LED on Act: Blinking
Advanced Software Features
-
Advanced Software Features
NMC-1004-10E Teaming support IEEE 802.3ad IEEE 802.1Q VLANs IEEE 802.3 2005 flow control support Interrupt moderation
OS Support
-
NMC-1004-10E Windows® Server 2012 R2, 2012, 2008 R2 X86-64 Linux RedHat EL 6.5 and 7.0 IA-32, X86-64, and IA-64 Linux SuSE SLES 11 SP3 and 12 IA-32, X86-64, and IA-64 FreeBSD 9 and 10 IA-32, X86-64, and IA-64 UEFI 2.1 and 2.3 X86-64 and I-64 VMware ESXi 5.1, ESXi 5.5 and ESXi 6.0 X86-64
Operating Conditions
-
Operating Conditions
NMC-1004-10E Operation: 0°C ~ 45°C Storage: -20°C ~ 67°C
Power Voltage & consumption
-
Power Voltage & consumption
NMC-1004-10E +12V ± 15% 16W
Dimension (mm)
-
Dimension (mm)
NMC-1004-10E 163.7 x 74.6 x 35.5
Compliance
-
Compliance
NMC-1004-10E CE/FCC
