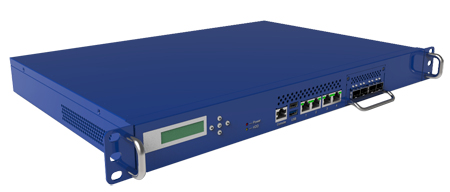

FWA-2330
1U Rackmount Network Appliance with Intel® Celeron® Processor J1900 and 4 GbE ports

Contact Us
Back
All Images
  • Supports Intel® Celeron® Processor J1900
  • One DDR3L 1333/1600 SODIMM, up to 8 GB
  • Four GbE LAN ports with 2 segments LAN bypass
  • One mSATA Slot
  • Supports one fixed 3.5" SATA HDD bay
  • One NMC slot for 4ports Ethernet card expansion
  • One Mini-PCIE slot
Datasheet (PDF)
Documents & Downloads
Conceived as a powerful but low power consumption 1U rackmount Internet security platform, the FWA-2330 series adopts the latest Intel Bay Trail processor and is specifically designed for mainstream IDS/IPS, Anti-virus, VPN gateway and Unified Threat Management (UTM) applications. The FWA-2330 supports up to 8 GB of Single-channel DDR3L 1333/1600 SDRAM on one SODIMM. The platform reserves space for one 3.5" SATA HDD bay and one mSATA slot for storing or upgrade OS and other network security applications. It has four PCIe x 1 lanes connected directly to the Intel I211-AT Ethernet controllers to offer 4 ports of Gigabit Ethernet at wire speed. In addition, the platform also has one NMC (Network Mezzanine Cards) slot for 4 ports Copper or SFP Ethernet card expansion. For easy access, the front panel includes an RJ-45 console port, two USB ports for local system management, maintenance and diagnostics. It is CE, FCC, CB, UL, CCC and RoHS compliant.

Product Specifications Download Spec

  • Part Number
  • Details
Processor System
  • CPU
  • Frequency
  • Core Number
  • L2 Cache
  • BIOS
Memory
  • Technology
  • Socket
  • Capacity
  • ECC Support
Networking
  • Controller
  • 1GbE
  • Legacy LAN bypass
  • PCIe x 4
Expansion
  • NMC
Storage
  • 3.5" HDD
  • mSATA SSD
I/O
  • Console port
  • USB2.0
  • LED Indicator
  • Others
LCD Module
  • LCD Module
Power
  • Power Type
  • Watts
  • Input
  • Connector
  • Power Adaptor
Environment
  • Operating Temperature (air flow 0.7 m/sec)
  • Non-operating Temperature
  • Humidity
  • Vibration Resistance
  • Shock Protection
Mechanical
  • Construction
  • Mounting
  • Dimensions (W x H x D)
  • Weight
OS Support
Advantech S/W Packages
  • QuickStart Linux Image
  • Individual Package
Certification

Processor System

  • CPU

    FWA-2330-00A1E Intel® Celeron® J1900

  • Frequency

    FWA-2330-00A1E 2.0GHz

  • Core Number

    FWA-2330-00A1E 4C

  • L2 Cache

    FWA-2330-00A1E 2MB

  • BIOS

    FWA-2330-00A1E AMI 16 Mbit SPI

Memory

  • Technology

    FWA-2330-00A1E 1 x DDR3L 1066/1333/1600 SODIMM

  • Socket

    FWA-2330-00A1E 1 x 204-pin SODIMM

  • Capacity

    FWA-2330-00A1E 8 GB

  • ECC Support

    FWA-2330-00A1E No

Networking

  • Controller

    FWA-2330-00A1E 4 x Intel® i211-AT

  • 1GbE

    FWA-2330-00A1E 4 x 10/100/1000 Mbps RJ45 via Intel® i211-AT

  • Legacy LAN bypass

    FWA-2330-00A1E 2 x pair of LAN Bypass

  • PCIe x 4

    FWA-2330-00A1E 1 x FH/HL gen2 x4 slot

Expansion

  • NMC

    FWA-2330-00A1E 1 x NMC

Storage

  • 3.5" HDD

    FWA-2330-00A1E 1 x 3.5" HDD

  • mSATA SSD

    FWA-2330-00A1E 1 x mSATA Slot

I/O

  • Console port

    FWA-2330-00A1E 1

  • USB2.0

    FWA-2330-00A1E 2

  • LED Indicator

    FWA-2330-00A1E 1 x Power, HDD LED

  • Others

    FWA-2330-00A1E 1 x power button

LCD Module

  • LCD Module

    FWA-2330-00A1E 16 x 2 graphic display, 5 buttons

Power

  • Power Type

    FWA-2330-00A1E AC

  • Watts

    FWA-2330-00A1E 60W

  • Input

    FWA-2330-00A1E 100 V ~ 240 V

  • Connector

    FWA-2330-00A1E AC 4pin plug

  • Power Adaptor

    FWA-2330-00A1E AC, Openframe

Environment

  • Operating Temperature (air flow 0.7 m/sec)

    FWA-2330-00A1E 0 ~ 40 °C (32 ~ 104 °F)

  • Non-operating Temperature

    FWA-2330-00A1E -40 ~ 60° C (-40 ~ 140° F)

  • Humidity

    FWA-2330-00A1E 95% @ 40° C (non-condensing)

  • Vibration Resistance

    FWA-2330-00A1E with SATA HDD: 0.5 Grms, IEC 60068-2-64, 5-500Hz, 1hr/axis

  • Shock Protection

    FWA-2330-00A1E with SATA HDD: 10G, 11ms, IEC-60068-2-27, X, Y, X-X,-Y-Z axis, 3times per axis

Mechanical

  • Construction

    FWA-2330-00A1E Iron

  • Mounting

    FWA-2330-00A1E 1U Rackmount

  • Dimensions (W x H x D)

    FWA-2330-00A1E 430 x 44 x 301 mm (16.7" x 1.7" x 11.8")

  • Weight

    FWA-2330-00A1E 5.4 kg (11.9 lbs)

OS Support

  • FWA-2330-00A1E Linux (CentOS, Red Hat)

Advantech S/W Packages

  • QuickStart Linux Image

    FWA-2330-00A1E afru, lmsensors, flashrom, Legacy LBP utility

  • Individual Package

    FWA-2330-00A1E Legacy LBP utility

Certification

  • FWA-2330-00A1E CE/FCC/CB/UL/CCC
