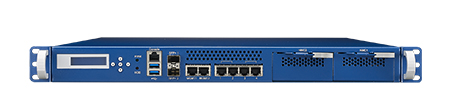

/FWA-3260-Single PSU_Front_B20180809153427.jpg)
/FWA-3260-Single PSU_Left_B20180809153420.jpg)
/FWA-3260-Single PSU_Back_B20180809153408.jpg)
- Intel® Xeon® Processor D System On Chip up to 16 cores and 1.5MB last level cache per core
- 4 x DDR4 ECC UDIMMs/RDIMMs and RDIMMs, up to 2400MHz and up to 128GB
- 4 server class GbE ports implemented by an Intel i350 Ethernet Controller with advanced LAN bypass support
- 2 GbE management ports
- 2 x 10GE SFP+ ports
- 2 Network Mezzanine Card bays for PCIe gen.3 based port expansion with 1GbE and 10GbE and 40GbE ports
- 1 x PCIex8 full-height / half-length add-on cards
- Two 2.5" SATA HDDs/SSDs and two M.2 SSD sockets
- IPMI2.0 compliant Remote Management (optional)
The FWA-3260 1U network appliance features Intel's® Xeon® Processor D System On Chip to meet the need for higher core count, larger and faster memory as well as increased IO performance without sacrificing cost efficiency in a compact footprint.With up to 16 Xeon class cores and 1.5MB last level cache per core tightly integrated with DDR4 memory controllers and a rich IO subsystem, the Xeon® D SoC performs extremely well in applications tailored for multicore designs. Besides supporting memory capacities up to 128GB, Xeon® D also brings enhanced reliability and availability features previously only available on high end Xeon® E5 series processors into a midrange appliance footprint. Two integrated 10GE controllers with 128TX/RX queues per port, support for SR-IOV and optimizations for network overlays such as VxLAN and NVGRE as well as high performance PCIe gen.3 interfaces complement the processor subsystem of the SoC.
With an optimized system design the FWA-3260 adds four server class copper ports based on the Intel i350-AM4 Ethernet controller, Advanced LAN bypass capabilities as well as flexible, scalable and high performance port expansion via two PCIe gen.3 Network Mezzanine bays. Support for a PCIex8 gen.3 full height / half length card provides additional flexibility to integrate special purpose IO cards or QuickAssist™ offload adapters such as Advantech's PCIE-3215.
In the base configuration, the system comes with support for two 2.5" SATA HDDs/SSDs, two M.2 sockets, LCM, RJ45 console, two USB ports and two additional GbE management ports.
While the FWA-3260A SKU is optimized for highest performance and system reliability supporting redundant, hot swap power supplies, the FWA-3260B is tailored for best cost in entry level applications.
Featuring an optional server BMC in accordance with IPMI2.0, the FWA-3260 supports state-of-the-art remote and lights-out management for increased reliability, serviceability and improved total cost of ownership. Advanced features such as power supply monitoring via PMBus allow the whole platform to be remotely managed. All management firmware can be remotely upgraded using the industry standard HPM.1 protocol, same as the motherboard system BIOS. All upgrades are fail safe and support instant rollback allowing for full system recovery without the necessity for onsite service staff.
The system is FCC,CE,CB,UL,CCC and RoHS compliant.
With an optimized system design the FWA-3260 adds four server class copper ports based on the Intel i350-AM4 Ethernet controller, Advanced LAN bypass capabilities as well as flexible, scalable and high performance port expansion via two PCIe gen.3 Network Mezzanine bays. Support for a PCIex8 gen.3 full height / half length card provides additional flexibility to integrate special purpose IO cards or QuickAssist™ offload adapters such as Advantech's PCIE-3215.
In the base configuration, the system comes with support for two 2.5" SATA HDDs/SSDs, two M.2 sockets, LCM, RJ45 console, two USB ports and two additional GbE management ports.
While the FWA-3260A SKU is optimized for highest performance and system reliability supporting redundant, hot swap power supplies, the FWA-3260B is tailored for best cost in entry level applications.
Featuring an optional server BMC in accordance with IPMI2.0, the FWA-3260 supports state-of-the-art remote and lights-out management for increased reliability, serviceability and improved total cost of ownership. Advanced features such as power supply monitoring via PMBus allow the whole platform to be remotely managed. All management firmware can be remotely upgraded using the industry standard HPM.1 protocol, same as the motherboard system BIOS. All upgrades are fail safe and support instant rollback allowing for full system recovery without the necessity for onsite service staff.
The system is FCC,CE,CB,UL,CCC and RoHS compliant.
Product Specifications Download Spec
- Part Number
- Details
-
FWA-3260A-01E
- Processor
- Options
- Core Number
- Frequency
- L2 Cache
- BIOS
- Intel® Xeon® Processor D-1548(8C,2.0G)
- D-1508(2C,2.2G)/D-1528(6C,1.9G)/D-1567(12C,2.1G)/D-1587(16C,1.7G)
- 8C
- 2.0GHz
- 12MB
- AMI EFI 64 Mbit
- VT-x
- VT-x, VT-d
- Technology
- Max. Capacity
- Socket
- ECC Support
- DDR4, 2133/2400MHz
- 128 GB
- 4 x 288-pin RDIMM
- Yes
- Controller
- 1GbE
- 10GbE
- LAN bypass
- 4 x Intel® I350-AM4 2 x Intel® I210-AT
- 4 x 1GbE RJ45 with 2 segment advanced bypass support via Intel® i350-AM4 2 x 1GbE RJ45 for management via Intel® I210-AT
- 2 x 10G SFP+ via BDE SOC+CS4277 (10G Dual PHY)
- 2 segment
- PCIe x 8
- NMC
- 1 x FH/HL
- 2 x NMCs
- 2.5" HDD/SSD
- M.2
- 2 x 2.5" HDD/SSD, Option: 1 x 3.5" HDD
- 2 x (2280/2242)
- Console port
- USB2.0/3.0
- LED Indicator
- GPIO
- Others
- 1
- 1 x USB2.0 on board 2 x USB3.0 ports in the front
- Power, HDD
- 1x 8-bit GPIO pin header
- 1 x power button
- Trust Platform Module
- A SKU: TPM(2.0), Option: TPM(1.2)
- LCD Module
- 16 x 2 graphic display, 5 buttons
- Power Type
- Watts
- Input
- Connector
- Redundant AC PSU (redundant DC PSUs on request)
- 300W
- AC 100 ~ 240 V @ 50 ~ 60 Hz, full range
- AC 3pin plug / DC pin header
- Operating Temperature (air flow 0.7 m/sec)
- Non-operating Temperature
- Vibration Resistance
- Shock Protection
- 0 ~ 40 °C (32 ~ 104 °F)
- -20 ~ 80° C (-4 ~ 167° F) and 40° C @ 95% RH Non-Condensing humidity
- with SATA HDD: 0.5 Grms, IEC 60068-2-64, 5-500Hz, 1hr/axis
- with SATA HDD: 10G, IEC-60068-2-27, half sine, 11ms duration
- Cooling
- 4 x system FAN with smart FAN
- Construction
- Mounting
- Dimensions (W x H x D)
- Weight
- Iron
- 1U Rackmount
- 430 x 44.2 x 500 mm (16.6" x 1.7" x 19.7")
- 15 kg (33lb)
- Linux (CentOS, Red Hat, Ubuntu)
- QuickStart Linux Image
- Individual Package
- afru, ipmitool, lmsensors, flashrom, LCD4Linux, Advanced LBP Utility
- Advanced LBP Library
- IPMI
- LOM Module with Aspeed AST1250 chip Supports IPMI 2.0, redundant BIOS and remote, failsafe BIOS update (Advantech IPMI Core)
- EMC
- CE/FCC/CB/UL/CCC
Processor System
-
Processor
FWA-3260A-01E Intel® Xeon® Processor D-1548(8C,2.0G) -
Options
FWA-3260A-01E D-1508(2C,2.2G)/D-1528(6C,1.9G)/D-1567(12C,2.1G)/D-1587(16C,1.7G) -
Core Number
FWA-3260A-01E 8C -
Frequency
FWA-3260A-01E 2.0GHz -
L2 Cache
FWA-3260A-01E 12MB -
BIOS
FWA-3260A-01E AMI EFI 64 Mbit
Virtualization
-
VT-x
FWA-3260A-01E VT-x, VT-d
Memory
-
Technology
FWA-3260A-01E DDR4, 2133/2400MHz -
Max. Capacity
FWA-3260A-01E 128 GB -
Socket
FWA-3260A-01E 4 x 288-pin RDIMM -
ECC Support
FWA-3260A-01E Yes
Networking
-
Controller
FWA-3260A-01E 4 x Intel® I350-AM4 2 x Intel® I210-AT -
1GbE
FWA-3260A-01E 4 x 1GbE RJ45 with 2 segment advanced bypass support via Intel® i350-AM4 2 x 1GbE RJ45 for management via Intel® I210-AT -
10GbE
FWA-3260A-01E 2 x 10G SFP+ via BDE SOC+CS4277 (10G Dual PHY) -
LAN bypass
FWA-3260A-01E 2 segment
Expansion
-
PCIe x 8
FWA-3260A-01E 1 x FH/HL -
NMC
FWA-3260A-01E 2 x NMCs
Storage
-
2.5" HDD/SSD
FWA-3260A-01E 2 x 2.5" HDD/SSD, Option: 1 x 3.5" HDD -
M.2
FWA-3260A-01E 2 x (2280/2242)
I/O
-
Console port
FWA-3260A-01E 1 -
USB2.0/3.0
FWA-3260A-01E 1 x USB2.0 on board 2 x USB3.0 ports in the front -
LED Indicator
FWA-3260A-01E Power, HDD -
GPIO
FWA-3260A-01E 1x 8-bit GPIO pin header -
Others
FWA-3260A-01E 1 x power button
TPM
-
Trust Platform Module
FWA-3260A-01E A SKU: TPM(2.0), Option: TPM(1.2)
LCD Module
-
LCD Module
FWA-3260A-01E 16 x 2 graphic display, 5 buttons
Power Supply
-
Power Type
FWA-3260A-01E Redundant AC PSU (redundant DC PSUs on request) -
Watts
FWA-3260A-01E 300W -
Input
FWA-3260A-01E AC 100 ~ 240 V @ 50 ~ 60 Hz, full range -
Connector
FWA-3260A-01E AC 3pin plug / DC pin header
Environment
-
Operating Temperature (air flow 0.7 m/sec)
FWA-3260A-01E 0 ~ 40 °C (32 ~ 104 °F) -
Non-operating Temperature
FWA-3260A-01E -20 ~ 80° C (-4 ~ 167° F) and 40° C @ 95% RH Non-Condensing humidity -
Vibration Resistance
FWA-3260A-01E with SATA HDD: 0.5 Grms, IEC 60068-2-64, 5-500Hz, 1hr/axis -
Shock Protection
FWA-3260A-01E with SATA HDD: 10G, IEC-60068-2-27, half sine, 11ms duration
Cooling
-
Cooling
FWA-3260A-01E 4 x system FAN with smart FAN
Mechanical
-
Construction
FWA-3260A-01E Iron -
Mounting
FWA-3260A-01E 1U Rackmount -
Dimensions (W x H x D)
FWA-3260A-01E 430 x 44.2 x 500 mm (16.6" x 1.7" x 19.7") -
Weight
FWA-3260A-01E 15 kg (33lb)
OS Support
-
FWA-3260A-01E Linux (CentOS, Red Hat, Ubuntu)
Advantech S/W Packages
-
QuickStart Linux Image
FWA-3260A-01E afru, ipmitool, lmsensors, flashrom, LCD4Linux, Advanced LBP Utility -
Individual Package
FWA-3260A-01E Advanced LBP Library
IPMI
-
IPMI
FWA-3260A-01E LOM Module with Aspeed AST1250 chip Supports IPMI 2.0, redundant BIOS and remote, failsafe BIOS update (Advantech IPMI Core)
Certification
-
EMC
FWA-3260A-01E CE/FCC/CB/UL/CCC
