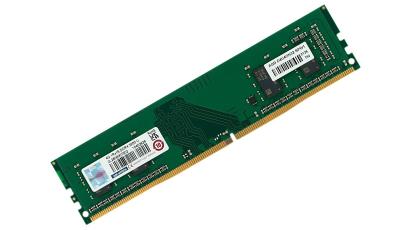

-25/AQD-D4U4GN32-SPW1-front20230619163711.jpg)

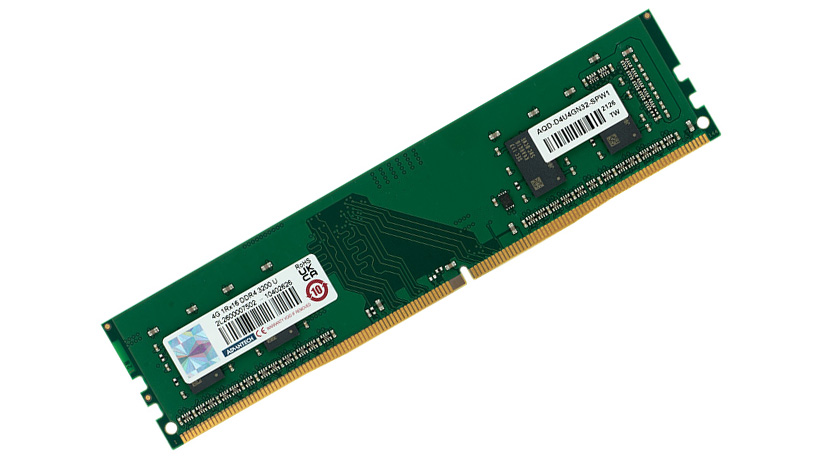

/AQD-D4U4GN32-SPW1-front20230619163728.jpg)
- DDR4 3200Mhz Unbuffered DIMM
- 30u" Gold Plating Thickness
- Anti-sulfurization resistance
- 1.2V power consumption
- Samsung original chip
- wide temperatures from -40° to 85°C
Product Specifications Download Spec
- Part Number
- Details
-
AQD-D4U4GN32-SPW1
- Manufacturer
- Capacity
- Chip Manufacturer
- Chip Organization
- Rank
- Interface
- Frequency
- Voltage
- PCB Height
- Feature
- Operating Temperature
- Advantech
- 4 GB
- SAMSUNG
- 512 M x 16
- 1 Rank
- 288 pin
- 3200 Mhz
- 1.2 V
- 1.23"
- Unbuffered
- -40 ~ 85°C (-40 ~ 185°F)
Memory
-
Manufacturer
AQD-D4U4GN32-SPW1 Advantech -
Capacity
AQD-D4U4GN32-SPW1 4 GB -
Chip Manufacturer
AQD-D4U4GN32-SPW1 SAMSUNG -
Chip Organization
AQD-D4U4GN32-SPW1 512 M x 16 -
Rank
AQD-D4U4GN32-SPW1 1 Rank -
Interface
AQD-D4U4GN32-SPW1 288 pin -
Frequency
AQD-D4U4GN32-SPW1 3200 Mhz -
Voltage
AQD-D4U4GN32-SPW1 1.2 V -
PCB Height
AQD-D4U4GN32-SPW1 1.23" -
Feature
AQD-D4U4GN32-SPW1 Unbuffered -
Operating Temperature
AQD-D4U4GN32-SPW1 -40 ~ 85°C (-40 ~ 185°F)
