Compact 1U High-Performance Server based on Intel® Xeon® Processor Scalable Family.

  • 1U 20" deep rackmount server
  • Single Intel® Xeon® Platinum, Gold, Silver or Bronze Processor
  • 6x DIMM sockets support up to 384 GB DDR4 2933MHz ECC RDIMM/LRDIMM
  • Rich Add-In Card Support: Up to two FH/FL PCIe x8 Gen3 slots (optional: one FH/FL PCIe x16 Gen3 slot), one LP PCIe x8 Gen3 slot, one PCIe x4 Gen3 slot for Advantech Personalization Card
  • Up to 4x 2.5" hot-swappable HDD/SSD drives. 1x M.2 2280 SATA/NVMe SSD
  • IPMI 2.0-compliant management with reliability and security enhancements
  • Optimized platform design for Industrial and Carrier Grade Robustness
  • Redhat certified, including Red Hat Enterprise Linux, Red Hat Virtualization, Red Hat Enterprise Linux for Real Time, and Red Hat OpenStack Platform for Compute
  • VMware ESXI 7.0 certified

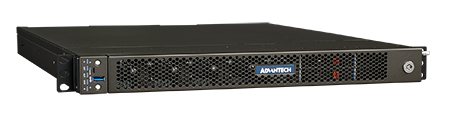

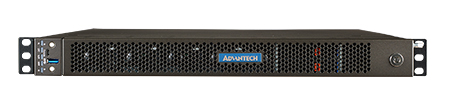

The Advantech SKY-8101 is a highly configurable high-performance server designed to balance the best in x86 server-class processing with maximum I/O and offload density in a 20" depth chassis.
