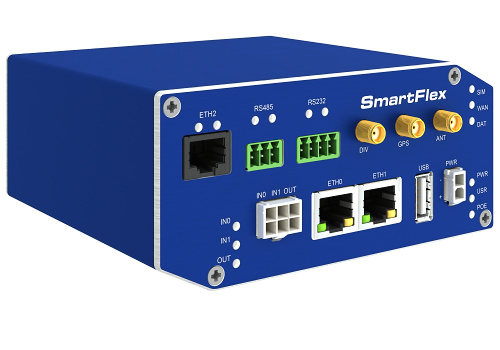

BB-SR30308420-SWH
SmartFlex, EMEA, 3x ETH, 1x RS232, 1x RS485, PoE PSE, Metal, No ACC

  • LTE cat.3, 3G/HSPA+, GPRS/EDGE, EMEA, 2x SIM
  • LTE B1, B3, B7, B8, B20
  • 2x Ethernet port with PoE support, DIN rail mounting
  • Powerful CPU and Memory, Hosting of SW IoT applications
  • 3x ETH, PSE PoE+, PoE+ IEEE 802.3at & 802.3af on 2x ETH
  • 1x RS232, 1x RS485/422
  • GPS, USB, I/O 2x DI + 1x DO, MicroSD
  • Operating temp. –40 °C to +75 °C, Power supply 10 to 60 V DC
  • Certifications: CE, E8
  • Advanced networking, Diagnostics, VPN support, Firewall
The SmartFlex is designed and manufactured for use in tough environmental conditions. Specifications include wide operating temperature ranges from -40 to 75 °C (-20 to 60 °C LTE450 module). It accepts input voltage ranges from 10 V DC to 60 V DC and is equipped with sleep mode for reducing electrical consumption.

製品詳細 詳細ダウンロード

  • パーツナンバー
  • 詳細
Cellular Interface
  • SIM Slot Number

Cellular Interface

  • SIM Slot Number

    BB-SR30308420-SWH 2
