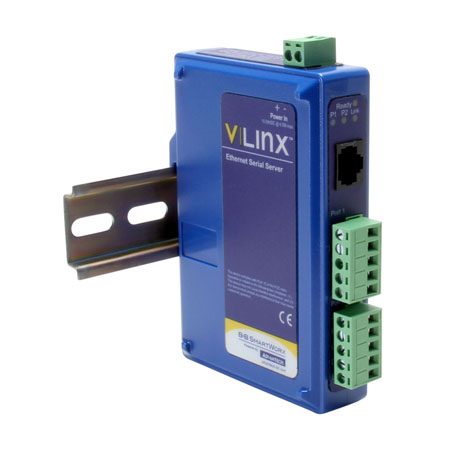

BB-MESR902T
Modbus Gateway, 2 x RS-232/422/485 TB, Ind. DIN

お問い合わせ
戻る
すべての画像
  • Bridge Modbus TCP Ethernet and RS-232/422/485 networks
  • Modbus TCP, ASCII, RTU (up to 16 clients & 32 servers)
  • Data rate: up to 230.4 kbps
  • -40 to +80 °C wide operating temperature range
  • DIN rail mount, IP30 case (panel mount option)
  • 10-48 VDC input required (power supply not included, sold separately)
  • UL Class 1/Division 2
データシート(PDF)
資料＆ダウンロード
BB-MESR02T9 Modbus Gateway bridges devices on Modbus serial networks with those on Modbus TCP networks, allowing seamless integration. Serial port/s can be accessed over a LAN or WAN using Direct IP Mode connections. Supporting up to 16 clients and 32 servers; features auto-detecting 10/100 copper.

製品詳細 詳細ダウンロード

  • パーツナンバー
  • 詳細
General
  • Technology
  • Serial Port Count
  • Serial Type
  • Ethernet Port Count
  • Mounting
  • Power
  • Temperature

General

  • Technology

    BB-MESR902T Serial

  • Serial Port Count

    BB-MESR902T 2

  • Serial Type

    BB-MESR902T RS-232/422/485

  • Ethernet Port Count

    BB-MESR902T 1

  • Mounting

    BB-MESR902T DIN

  • Power

    BB-MESR902T 10-48VDC

  • Temperature

    BB-MESR902T -40 to 80C

技術サポート

Datasheet (PDF) Download 3D Model Documents & Downloads

製品に関するお問い合わせ

お問い合わせフォーム

Accessories

BB-232HESP

ULI-242T - RS-232 (Terminal Block) High Energy Surge Protector

BB-MDR-60-24

60W, 24VDC, 2.5A, AC-DC Single Output DIN Power Supply, Slim Plastic Case

BB-TBKT1

Replacement TB - 2-position, 5.08mm, 8A, 300V (QTY 1)

BB-TBKT2

Replacement TB - 5-position, 5.08mm, 8A, 300V (QTY 1)

BB-422HESP

ULI-244T - RS-422/485 (4-Wire) (Terminal Block) High Energy Surge Protector

BB-485HESP

ULI-246T - RS-485 (2W) (Terminal Block) High Energy Surge Protector

BB-HESP4DR

ULI-244TI - RS-422/485 Dataline Surge Suppressor, DIN Rail Mounted, Terminal Blocks

BB-MDR-20-24

24W, 24VDC, 1A, AC-DC Single Output DIN Power Supply, Slim Plastic Case

BB-MDR-40-24

40.8W, 24VDC, 1.7A, AC-DC Single Output DIN Power Supply, Slim Plastic Case
