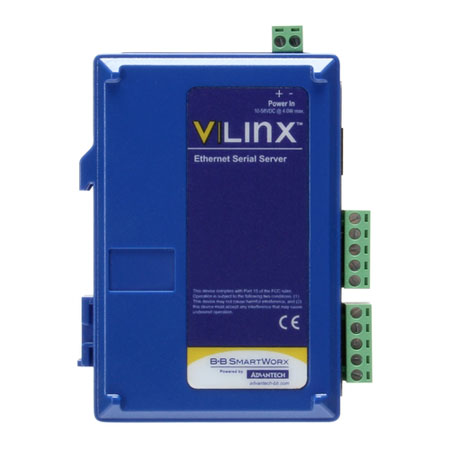

BB-VESR902T
Serial Device Server, 2 x RS-232/422/485 TB, Ind. DIN

お問い合わせ
戻る
すべての画像
  • Ethernet enable RS-232/422/485 serial devices
  • Direct IP, virtual COM port or paired mode
  • Industrial 10 to 48 VDC input power (power supply required, not included, sold separately)
  • Wide operating temperature – -40 to +80 °C
  • UL Class 1/Division 2
データシート(PDF)
資料＆ダウンロード
Take control of your serial devices with Vlinx™ Model VESR902T Industrial Ethernet Serial Server. If it has a serial port, it can be monitored and controlled from anywhere on your Ethernet LAN or WAN. Keep it at maximum productivity without leaving your office. Even troubleshoot it from outside your LAN via the internet. The easy-to-use Vlinx™ Manager software puts access to your entire factory floor on your desk. Configure devices, upgrade firmware and monitor activity. Configuration changes can also be made using a web browser. Heartbeat connectivity keeps the serial server online. If connectivity is lost, it attempts to reconnect every five seconds until connection is regained. A manual reboot is not needed when communications are restored. Industrial 10 to 48 VDC input power. External power source required, not included, sold separately.

製品詳細 詳細ダウンロード

  • パーツナンバー
  • 詳細
Certification
  • EMC
  • EMI
  • EMS
  • Safety
General
  • Technology
  • Serial Port Count
  • Serial Type
  • Ethernet Port Count
  • Mounting
  • Power
  • Temperature
Ethernet Communication
  • RJ-45 Port Connector Type
  • RJ-45 Port Number
Serial Communication
  • Serial Port Connector Type
  • Serial Port Number
  • RS-232
  • RS-422
  • RS-485
  • Baud Rate
  • Serial Transmission Speed
Environment
  • Humidity (Operating Range)
  • Temperature (Min. Operating)
  • Temperature (Max. Operating)
  • Temperature (Operating Range)
Mechanism
  • Dimensions (W x H x D)
  • Enclosure (Plastic)
  • IP Rating
  • Mounting (DIN-rail)
Power
  • Power Consumption
  • Power Input (DC)
Software
  • Configuration
  • Driver
  • Operation Mode
Warranty
  • Warranty Period

Certification

  • EMC

    BB-VESR902T CE, FCC

  • EMI

    BB-VESR902T CE, FCC

  • EMS

    BB-VESR902T CE / FCC

  • Safety

    BB-VESR902T NO

General

  • Technology

    BB-VESR902T Serial

  • Serial Port Count

    BB-VESR902T 2

  • Serial Type

    BB-VESR902T RS-232/422/485

  • Ethernet Port Count

    BB-VESR902T 1

  • Mounting

    BB-VESR902T DIN

  • Power

    BB-VESR902T 10-48VDC

  • Temperature

    BB-VESR902T -40 to 80C

Ethernet Communication

  • RJ-45 Port Connector Type

    BB-VESR902T RJ-45

  • RJ-45 Port Number

    BB-VESR902T 1

Serial Communication

  • Serial Port Connector Type

    BB-VESR902T Terminal block

  • Serial Port Number

    BB-VESR902T 2

  • RS-232

    BB-VESR902T Yes

  • RS-422

    BB-VESR902T Yes

  • RS-485

    BB-VESR902T Yes

  • Baud Rate

    BB-VESR902T 50 ~ 230.4 Kbps

  • Serial Transmission Speed

    BB-VESR902T 230.4 kbps

Environment

  • Humidity (Operating Range)

    BB-VESR902T 0~95%

  • Temperature (Min. Operating)

    BB-VESR902T -40°C

  • Temperature (Max. Operating)

    BB-VESR902T 80°C (176°F)

  • Temperature (Operating Range)

    BB-VESR902T -40 ~ 80°C (-40 ~ 176°F)

Mechanism

  • Dimensions (W x H x D)

    BB-VESR902T 120 x 80 x 29 mm

  • Enclosure (Plastic)

    BB-VESR902T Yes

  • IP Rating

    BB-VESR902T IP30

  • Mounting (DIN-rail)

    BB-VESR902T Yes

Power

  • Power Consumption

    BB-VESR902T 4W

  • Power Input (DC)

    BB-VESR902T 10 ~ 48 VDC

Software

  • Configuration

    BB-VESR902T Windows utility, Web Browser

  • Driver

    BB-VESR902T Windows XP/7/8.1/10, Windows Server 2008

  • Operation Mode

    BB-VESR902T Virtual COM, TCP/UDP server TCP/UDP client

Warranty

  • Warranty Period

    BB-VESR902T 5 years
