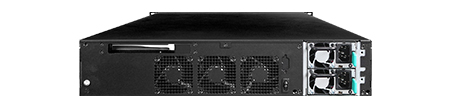

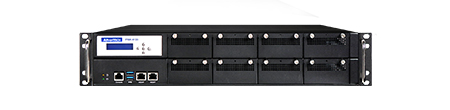

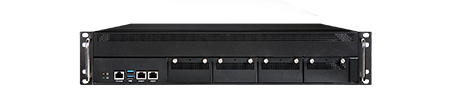

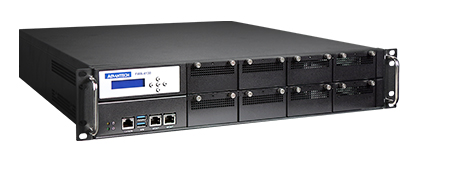

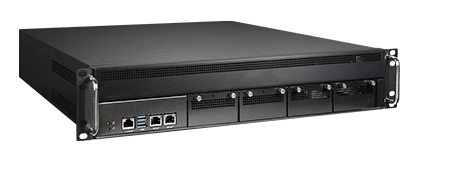

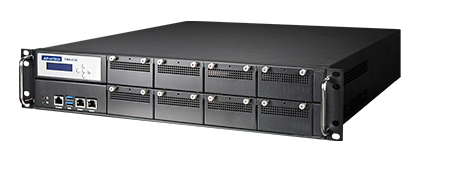

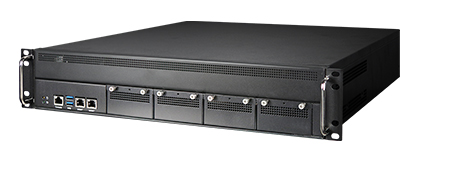

FWA-4130
2U Rackmount Network Appliance Platform based on Intel® Xeon® E3 series and 6th/7th generation Intel® Core™i7/i5/i3 Processors

Entre em contato conosco
Voltar
Todas as Imagens
  • Intel® Xeon® E3 V5/V6 family and 6th/7th gen. Intel® Core™ i7/i5/i3 processors
  • 4 x DDR4 2133/2400MHzECC UDIMMs, up to 64GB
  • 2 x GbE Mgmt. ports
  • 4 x NMC slots (Network Mezzanine Card) for a wide range of GbE , 10GbE and 40GbE NMCs with or without advanced LAN bypass, up to 8NMC slots(SKU optional)
  • One PCIE x8 Slot on rear, support FH/HL add-on cards with Gen3 PCIE x4 bandwidth
  • One mSATA slot, 2 x 3.5" HDD Bay, CF slot (Optional)
  • IPMI2.0 compliant Remote Management (Module Optional)
Ficha Técnica (PDF)
Documents & Downloads

Especificação do Produto Download de Especificação

  • Part Number
  • Detalhes
Form Factor
Processor System
  • Processor
  • Core Number
  • Frequency
  • L2 Cache
  • BIOS
Memory
  • Technology
  • Max. Capacity
  • Socket
  • ECC Support
Networking
  • Controller
  • 1GbE
  • LAN bypass
Expansion
  • PCIe x 8
  • NMC
Storage
  • mSATA
  • CF
  • 3.5" HDD
I/O
  • Console port
  • USB3.0
  • LED Indicator
  • Others
TPM
  • TPM
LCD Module
  • LCD Module
Power
  • Power Type
  • Watts
  • Input
  • Connector
Environment
  • Operating Temperature (air flow 0.7 m/sec)
  • Non-operating Temperature
  • Vibration Resistance
  • Shock Protection
Mechanical
  • Construction
  • Mounting
  • Dimensions (W x H x D)
  • Weight
OS Support
Advantech S/W Packages
  • Individual Package
IPMI
  • IPMI
Certification

Form Factor

  • FWA-4130L-0000E 2U - Rack Mount

Processor System

  • Processor

    FWA-4130L-0000E Socket LGA 1151 (E3-1200v5; 6th Core-I; Pentium; Celeron®)

  • Core Number

    FWA-4130L-0000E 2C/4C

  • Frequency

    FWA-4130L-0000E 2.4GHz~3.6GHz

  • L2 Cache

    FWA-4130L-0000E 2MB/4MB/6MB/8MB

  • BIOS

    FWA-4130L-0000E AMI EFI 64 Mbit

Memory

  • Technology

    FWA-4130L-0000E DDR4, 2133/2400MHz

  • Max. Capacity

    FWA-4130L-0000E 64GB

  • Socket

    FWA-4130L-0000E 4 x 288-pin RDIMM

  • ECC Support

    FWA-4130L-0000E Yes (E3 CPU only)

Networking

  • Controller

    FWA-4130L-0000E 2 x Intel® i210-AT

  • 1GbE

    FWA-4130L-0000E 2 x 10/100/1000 Mbps RJ45 via Intel® I210 chip

  • LAN bypass

    FWA-4130L-0000E LBP support by NMC

Expansion

  • PCIe x 8

    FWA-4130L-0000E 1 x FH/HL

  • NMC

    FWA-4130L-0000E 4 NMCs

Storage

  • mSATA

    FWA-4130L-0000E 1x mSATA slot(Half or Full Size)

  • CF

    FWA-4130L-0000E 1x CF slot

  • 3.5" HDD

    FWA-4130L-0000E 2

I/O

  • Console port

    FWA-4130L-0000E 1

  • USB3.0

    FWA-4130L-0000E 2

  • LED Indicator

    FWA-4130L-0000E 1 x Power led, 1 x HDD LED

  • Others

    FWA-4130L-0000E 1 x power button

TPM

  • TPM

    FWA-4130L-0000E TPM 2.0

LCD Module

  • LCD Module

    FWA-4130L-0000E 16 x 2 graphic display, 5 buttons

Power

  • Power Type

    FWA-4130L-0000E AC, redundant DC, redundant (optional)

  • Watts

    FWA-4130L-0000E 300W

  • Input

    FWA-4130L-0000E 100 V ~ 240 V

  • Connector

    FWA-4130L-0000E AC 3pin plug

Environment

  • Operating Temperature (air flow 0.7 m/sec)

    FWA-4130L-0000E 0 ~ 40 °C (32 ~ 104 °F)

  • Non-operating Temperature

    FWA-4130L-0000E -40 ~ 60° C (-40 ~ 140° F) 5 ~ 95%

  • Vibration Resistance

    FWA-4130L-0000E with SATA HDD: 0.5 Grms, IEC 60068-2-64, 5-500Hz, 1hr/axis

  • Shock Protection

    FWA-4130L-0000E with SATA HDD: 10G, 11ms, IEC-60068-2-27, X, Y, X-X,-Y-Z axis, 3times per axis

Mechanical

  • Construction

    FWA-4130L-0000E Iron

  • Mounting

    FWA-4130L-0000E 2U Rackmount

  • Dimensions (W x H x D)

    FWA-4130L-0000E 438x88x520mm(17.24"x3.4"x20.4")

  • Weight

    FWA-4130L-0000E 2.0 kg (3.3lb)

OS Support

  • FWA-4130L-0000E Linux (CentOS, Red Hat)

Advantech S/W Packages

  • Individual Package

    FWA-4130L-0000E Advanced LBP Library

IPMI

  • IPMI

    FWA-4130L-0000E Opiton

Certification

  • FWA-4130L-0000E CB/UL/CE/FCC/CCC
