- Signal transmission with zero latency to provide effective surgical assistance in Eye–hand coordination
- Provision of open APIs to ensure easy system integration
- Capability to transmit signals from different sources via 10 GB optical fiber, including video, images, audio, USB, and other sources
- Capability to display Multi-view on a screen from different sources simultaneously
- Ultra-fast and lossless video transmission over IP
- Functionality as an encoder and a decoder at the same time
- Support of control system for mouse, keyboard, and Touch Through

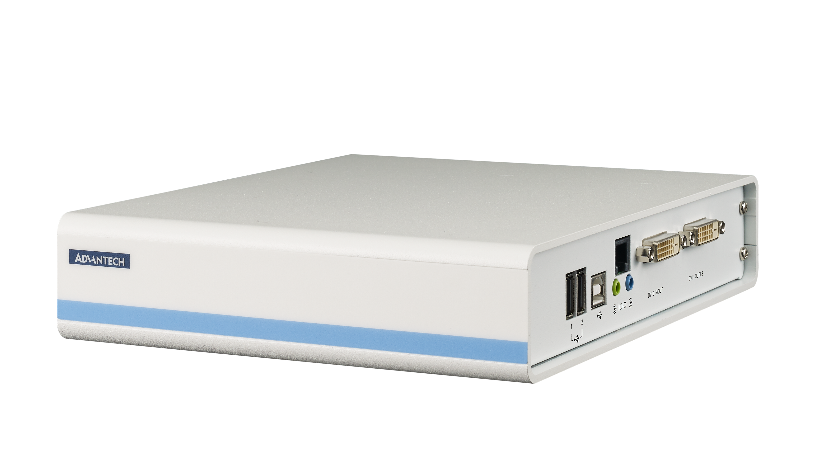

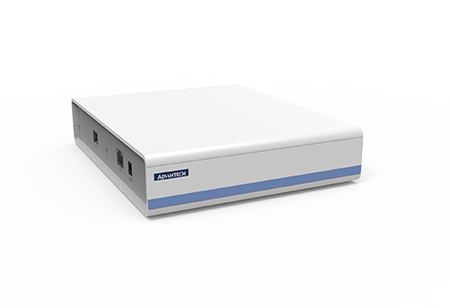

AVAS-200 Series are IP-based data transmission system with a single-cable distribution architecture designed for operating rooms. This system supports video, audio, and control signal streaming with low latency and allows rapid switching between streams. Moreover, video data can be transmitted over 10 Gigabit Ethernet without compression or data loss.
Especificação do Produto Download de Especificação
- Part Number
- Detalhes
-
AVAS-212-VNN0-D00
-
AVAS-212-HNN0-D00
-
AVAS-212-KNN0-D00
- Input Resolution
- Output Resolution
- Direct display
- Seamless switching
- MultiView
- Up to 4K UHD (4096 x 2160), 1 x uncompressed video
- Up to 4K UHD (4096 x 2160), 1 x uncompressed video
- Up to 4K UHD (4096 x 2160), 1 x uncompressed video
- Up to 4K UHD (4096 x 2160), 1 x uncompressed video
- Up to 4K UHD (4096 x 2160), 1 x uncompressed video
- Up to 4K UHD (4096 x 2160), 1 x uncompressed video
- Uncompressed video, latency < 1 frame
- Uncompressed video, latency < 1 frame
- Uncompressed video, latency < 1 frame
- Latency 1 frame
- Latency 1 frame
- Latency 1 frame
- Picture-in-Picture, Side-by-Side, Quad view, 1+3 bottom, 1+3 right
- Picture-in-Picture, Side-by-Side, Quad view, 1+3 bottom, 1+3 right
- Picture-in-Picture, Side-by-Side, Quad view, 1+3 bottom, 1+3 right
- Audio
- Analog audio in/out
- Analog audio in/out
- Analog audio in/out
- Network Bandwidth
- Network Cabling
- 10GbE
- 10GbE
- 10GbE
- SFP+
- SFP+
- SFP+
- DVI 0 in
- DVI 1 out/LB
- HDMI in
- HDMI out
- SFP+ slot
- Status LED
- Ethernet
- DC input jack
- USB Host
- USB device
- Audio out/in
- RS232
- 1 x DVI-D input single link
- N/A
- N/A
- 1 x DVI-D output single link
- N/A
- N/A
- N/A
- 1 x HDMI 0 in
- 1 x HDMI 0 in
- N/A
- 1 x HDMI 0 out & 1 x HDMI 1 out
- 1 x HDMI 1 out
- 1 for SFP+ module only
- 1 for SFP+ module only
- 1 for SFP+ module only
- 1 for indicate the AVAS-212 operational status
- 1 for indicate the AVAS-212 operational status
- 1 for indicate the AVAS-212 operational status
- 1 RJ45 1GbE (no function, for future use)
- 1 RJ45 1GbE (no function, for future use)
- 1 RJ45 1GbE (no function, for future use)
- 1 for 12V DC power in
- 1 for 12V DC power in
- 1 for 12V DC power in
- 2 for USB 2.0 host type A connectors
- 2 for USB 2.0 host type A connectors
- 2 for USB 2.0 host type A connectors
- 1 for USB 2.0 type B connector
- 1 for USB 2.0 type B connector
- 1 for USB 2.0 type B connector
- 2 for Audio out/in 3.5mm stereo jack connectors
- 2 for Audio out/in 3.5mm stereo jack connectors
- 2 for Audio out/in 3.5mm stereo jack connectors
- 1 RJ-10 type connector (no function, for future use)
- 1 RJ-10 type connector (no function, for future use)
- 1 RJ-10 type connector (no function, for future use)
- -
- External Medical PSU, 100~240V AC / NDcoder AVAS-212,12V/2A DC
- External Medical PSU, 100~240V AC / NDcoder AVAS-212,12V/2A DC
- External Medical PSU, 100~240V AC / NDcoder AVAS-212,12V/2A DC
- CE, FCC, 60601, MDD, CB, UL, CCC, RoHS, REACH
- CE, FCC, 60601, MDD, CB, UL, CCC, RoHS, REACH
- CE, FCC, 60601, MDD, CB, UL, CCC, RoHS, REACH
- Operating Temperature
- Storage Temperature
- 0 °C to +40 °C
- 0 °C to +40 °C
- 0 °C to +40 °C
- -10 °C to +50 °C
- -10 °C to +50 °C
- -10 °C to +50 °C
- Dimensions
- 176.50 x 220 x 44 mm
- 176.50 x 220 x 44 mm
- 176.50 x 220 x 44 mm
- -
- 12V DC Medical power supply unit (PSU)
- 12V DC Medical power supply unit (PSU)
- 12V DC Medical power supply unit (PSU)
Video
-
Input Resolution
AVAS-212-VNN0-D00 Up to 4K UHD (4096 x 2160), 1 x uncompressed video AVAS-212-HNN0-D00 Up to 4K UHD (4096 x 2160), 1 x uncompressed video AVAS-212-KNN0-D00 Up to 4K UHD (4096 x 2160), 1 x uncompressed video -
Output Resolution
AVAS-212-VNN0-D00 Up to 4K UHD (4096 x 2160), 1 x uncompressed video AVAS-212-HNN0-D00 Up to 4K UHD (4096 x 2160), 1 x uncompressed video AVAS-212-KNN0-D00 Up to 4K UHD (4096 x 2160), 1 x uncompressed video -
Direct display
AVAS-212-VNN0-D00 Uncompressed video, latency < 1 frame AVAS-212-HNN0-D00 Uncompressed video, latency < 1 frame AVAS-212-KNN0-D00 Uncompressed video, latency < 1 frame -
Seamless switching
AVAS-212-VNN0-D00 Latency 1 frame AVAS-212-HNN0-D00 Latency 1 frame AVAS-212-KNN0-D00 Latency 1 frame -
MultiView
AVAS-212-VNN0-D00 Picture-in-Picture, Side-by-Side, Quad view, 1+3 bottom, 1+3 right AVAS-212-HNN0-D00 Picture-in-Picture, Side-by-Side, Quad view, 1+3 bottom, 1+3 right AVAS-212-KNN0-D00 Picture-in-Picture, Side-by-Side, Quad view, 1+3 bottom, 1+3 right
Audio
-
Audio
AVAS-212-VNN0-D00 Analog audio in/out AVAS-212-HNN0-D00 Analog audio in/out AVAS-212-KNN0-D00 Analog audio in/out
Network
-
Network Bandwidth
AVAS-212-VNN0-D00 10GbE AVAS-212-HNN0-D00 10GbE AVAS-212-KNN0-D00 10GbE -
Network Cabling
AVAS-212-VNN0-D00 SFP+ AVAS-212-HNN0-D00 SFP+ AVAS-212-KNN0-D00 SFP+

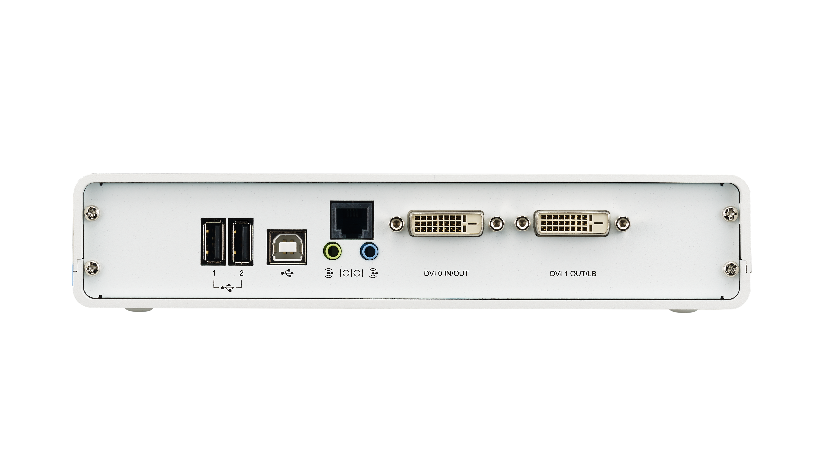

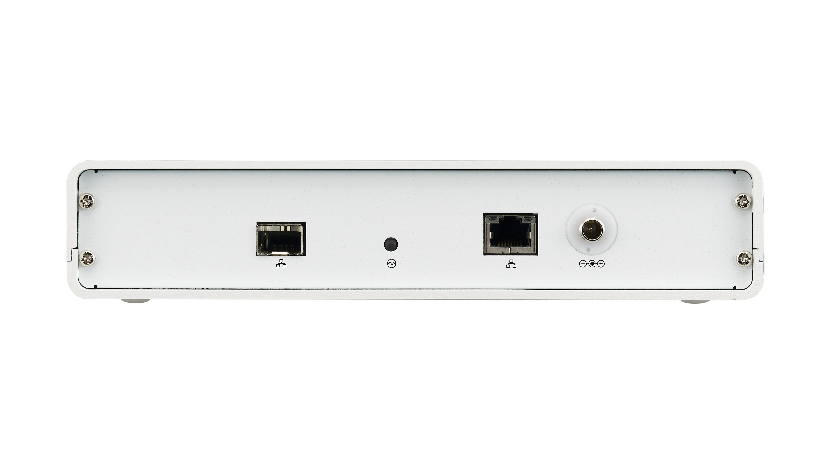

I/O
-
DVI 0 in
AVAS-212-VNN0-D00 1 x DVI-D input single link AVAS-212-HNN0-D00 N/A AVAS-212-KNN0-D00 N/A -
DVI 1 out/LB
AVAS-212-VNN0-D00 1 x DVI-D output single link AVAS-212-HNN0-D00 N/A AVAS-212-KNN0-D00 N/A -
HDMI in
AVAS-212-VNN0-D00 N/A AVAS-212-HNN0-D00 1 x HDMI 0 in AVAS-212-KNN0-D00 1 x HDMI 0 in -
HDMI out
AVAS-212-VNN0-D00 N/A AVAS-212-HNN0-D00 1 x HDMI 0 out & 1 x HDMI 1 out AVAS-212-KNN0-D00 1 x HDMI 1 out -
SFP+ slot
AVAS-212-VNN0-D00 1 for SFP+ module only AVAS-212-HNN0-D00 1 for SFP+ module only AVAS-212-KNN0-D00 1 for SFP+ module only -
Status LED
AVAS-212-VNN0-D00 1 for indicate the AVAS-212 operational status AVAS-212-HNN0-D00 1 for indicate the AVAS-212 operational status AVAS-212-KNN0-D00 1 for indicate the AVAS-212 operational status -
Ethernet
AVAS-212-VNN0-D00 1 RJ45 1GbE (no function, for future use) AVAS-212-HNN0-D00 1 RJ45 1GbE (no function, for future use) AVAS-212-KNN0-D00 1 RJ45 1GbE (no function, for future use) -
DC input jack
AVAS-212-VNN0-D00 1 for 12V DC power in AVAS-212-HNN0-D00 1 for 12V DC power in AVAS-212-KNN0-D00 1 for 12V DC power in -
USB Host
AVAS-212-VNN0-D00 2 for USB 2.0 host type A connectors AVAS-212-HNN0-D00 2 for USB 2.0 host type A connectors AVAS-212-KNN0-D00 2 for USB 2.0 host type A connectors -
USB device
AVAS-212-VNN0-D00 1 for USB 2.0 type B connector AVAS-212-HNN0-D00 1 for USB 2.0 type B connector AVAS-212-KNN0-D00 1 for USB 2.0 type B connector -
Audio out/in
AVAS-212-VNN0-D00 2 for Audio out/in 3.5mm stereo jack connectors AVAS-212-HNN0-D00 2 for Audio out/in 3.5mm stereo jack connectors AVAS-212-KNN0-D00 2 for Audio out/in 3.5mm stereo jack connectors -
RS232
AVAS-212-VNN0-D00 1 RJ-10 type connector (no function, for future use) AVAS-212-HNN0-D00 1 RJ-10 type connector (no function, for future use) AVAS-212-KNN0-D00 1 RJ-10 type connector (no function, for future use)
Power
-
-
AVAS-212-VNN0-D00 External Medical PSU, 100~240V AC / NDcoder AVAS-212,12V/2A DC AVAS-212-HNN0-D00 External Medical PSU, 100~240V AC / NDcoder AVAS-212,12V/2A DC AVAS-212-KNN0-D00 External Medical PSU, 100~240V AC / NDcoder AVAS-212,12V/2A DC
Certification
-
AVAS-212-VNN0-D00 CE, FCC, 60601, MDD, CB, UL, CCC, RoHS, REACH AVAS-212-HNN0-D00 CE, FCC, 60601, MDD, CB, UL, CCC, RoHS, REACH AVAS-212-KNN0-D00 CE, FCC, 60601, MDD, CB, UL, CCC, RoHS, REACH
Environment
-
Operating Temperature
AVAS-212-VNN0-D00 0 °C to +40 °C AVAS-212-HNN0-D00 0 °C to +40 °C AVAS-212-KNN0-D00 0 °C to +40 °C -
Storage Temperature
AVAS-212-VNN0-D00 -10 °C to +50 °C AVAS-212-HNN0-D00 -10 °C to +50 °C AVAS-212-KNN0-D00 -10 °C to +50 °C
Dimensions
-
Dimensions
AVAS-212-VNN0-D00 176.50 x 220 x 44 mm AVAS-212-HNN0-D00 176.50 x 220 x 44 mm AVAS-212-KNN0-D00 176.50 x 220 x 44 mm
Accessories
-
-
AVAS-212-VNN0-D00 12V DC Medical power supply unit (PSU) AVAS-212-HNN0-D00 12V DC Medical power supply unit (PSU) AVAS-212-KNN0-D00 12V DC Medical power supply unit (PSU)
