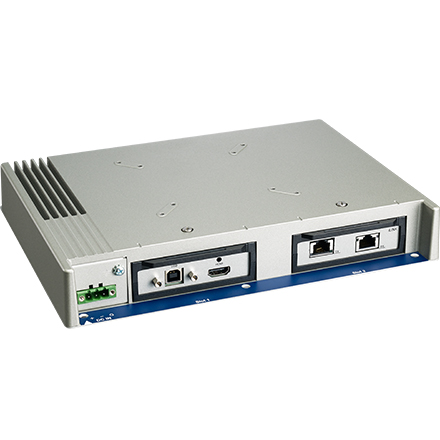

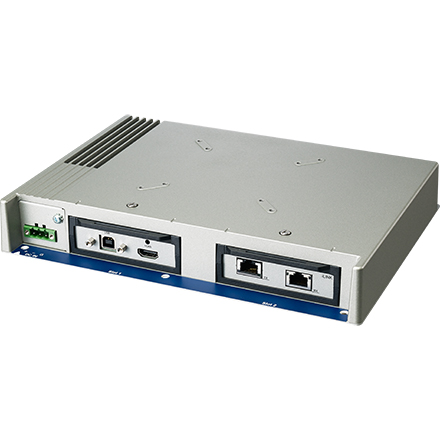

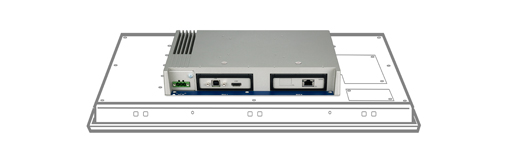

FPM-B700
Video Input Box Module with 2 I/O slots

Entre em contato conosco
Voltar
Todas as Imagens
  • Monitor Box with 2 flexible I/O slots to accommodate FPM-M700 I/O modules for video signal or long distance transmission
  • Multiple sized front panel module offering with P-Cap multi-touch sensor (12.1" & 19" w/ robust 5-wire resistive touch)
  • Supports USB touch and two independent video interfaces with picture-inpicture function and up to 100m long signal transmission distance (iLINK technology)
  • Ultimate Long Distance USB touch and Video Transmission Solution, up to 400M Signal Transmission in Daisy Chaining Clone mode
  • Simplified cabling with standard Ethernet cable
  • Compatible with TPC/UNO Box PC + iDoor Long Distant Display RJ45 Transmitter, PCM-29R1TX
Ficha Técnica (PDF)
Documents & Downloads
The FPM series of modular industrial monitors extend the functionality of typical industrial monitors. The flexible modularized design allowed users to change the video interface according to their usage demands. Additionally, unlike traditional industrial touch monitors that can only support controllers in a one-to-one capacity, the FPM series monitors can support two controllers simultaneously. Moreover, with the inclusion of Picture-in-Picture (PiP) technology, users can easily change the display layout and switch between units that need operating. The FPM-7002 model also supports Advantech’s iLINK technology, a long-distance data transmission solution. This technology is designed to resolve issues of touch signal degradation.

Especificação do Produto Download de Especificação

  • Part Number
  • Detalhes
Environment
  • Operating Temperature
  • Storage Temperature
Hardware
  • Certification
  • I/O
  • Power Input
Mechanical
  • Dimension (W x H x D)
  • Mounting
  • Weight (Net)

Environment

  • Operating Temperature

    FPM-B700-AE 0~55 °C (32~131 °F)

  • Storage Temperature

    FPM-B700-AE -20~60 °C (-4~140 °F)

Hardware

  • Certification

    FPM-B700-AE CB, UL, CE, FCC Class A, CCC, BSMI

  • I/O

    FPM-B700-AE 2 x Modular I/O Slot

  • Power Input

    FPM-B700-AE 24 VDC ±20%

Mechanical

  • Dimension (W x H x D)

    FPM-B700-AE 269 x 203 x 40 mm

  • Mounting

    FPM-B700-AE Panel, Wall, Stand, VESA

  • Weight (Net)

    FPM-B700-AE 1.6 kg

Suporte

Ficha Técnica (PDF) Baixar Modelo 3D Documents & Downloads
