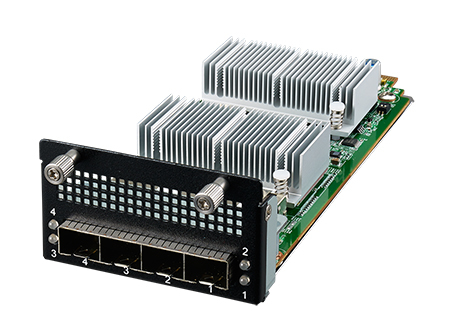

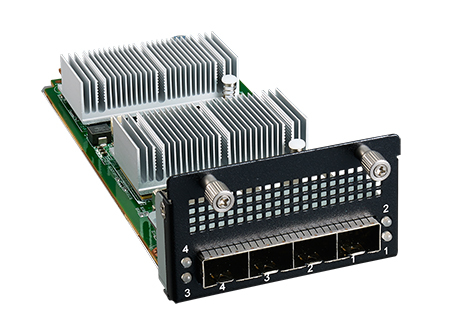

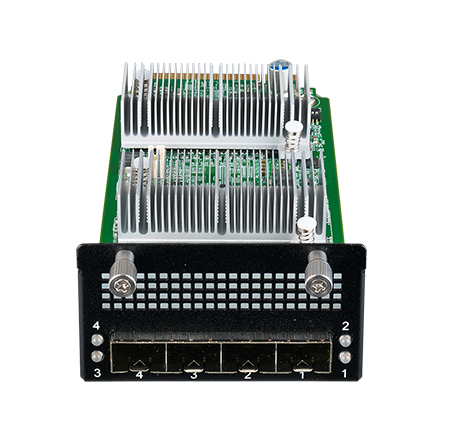

NMC-4001
4 Ports 10GbE SFP+ Module

Entre em contato conosco
Voltar
Todas as Imagens
  • 2x Intel® 82599ES + 1x PEX 8724
  • 4 ports SFP+ connector
  • 1x PCI-E 2.0 x8
  • NC-SI for IPMI Management
  • RoHS compliant
Ficha Técnica (PDF)
Documents & Downloads
NMCs are cost-optimized, high density IO modules for use in Advantech’s Network Application Platforms. A wide choice of GbE, 10GE and 40GE modules supporting copper and fiber interfaces with or without advanced LAN bypass gives our customers the flexibility to match varying deployment scenarios. Complementing a full range of network appliances supporting 1 to 8 NMC bays, these IO modules provide the scalability required to meet target price/performance ratios in even the most demanding use cases. At the same time, NMCs reduce the total cost of ownership and service cost via re-usability across the product range and multiple product generations. The option of factory and field installation enables upselling opportunities and "pay as you grow" concepts. Leveraging best-in-class Intel® Ethernet controller technology, NMCs provide a "it just works" user experience and a maximum of software compatibility.

Especificação do Produto Download de Especificação

  • Part Number
  • Detalhes
Controller
  • Controller
Interface
  • Interface
Speed
  • Speed
Port
  • Port
LED Definition
  • LED Definition
Advanced Software Features
  • Advanced Software Features
OS Support
Operating Conditions
  • Operating Conditions
Power Voltage & consumption
  • Power Voltage & consumption
Dimension (mm)
  • Dimension (mm)
Compliance
  • Compliance

Controller

  • Controller

    NMC-4001-10E 2x Intel® 82599ES + 1x PEX 8724

Interface

  • Interface

    NMC-4001-10E PCI-E 2.0 x4

Speed

  • Speed

    NMC-4001-10E 10GbE

Port

  • Port

    NMC-4001-10E 4x SFP+ connector

LED Definition

  • LED Definition

    NMC-4001-10E Port#1 & Port#2 Indicator: Link: LED on Act: Blinking

Advanced Software Features

  • Advanced Software Features

    NMC-4001-10E Teaming support IEEE 802.3ad IEEE 802.1Q VLANs IEEE 802.3 2005 flow control support Interrupt moderation

OS Support

  • NMC-4001-10E Windows® Server 2012 R2, 2012, 2008 R2 X86-64 Linux RedHat EL 6.5 and 7.0 IA-32, X86-64, and IA-64 Linux SuSE SLES 11 SP3 and 12 IA-32, X86-64, and IA-64 FreeBSD 9 and 10 IA-32, X86-64, and IA-64 UEFI 2.1 and 2.3 X86-64 and I-64 VMware ESXi 5.1, ESXi 5.5 and ESXi 6.0 X86-64

Operating Conditions

  • Operating Conditions

    NMC-4001-10E Operation: 0°C ~ 45°C Storage: -20°C ~ 67°C

Power Voltage & consumption

  • Power Voltage & consumption

    NMC-4001-10E +12V ± 15% 16W

Dimension (mm)

  • Dimension (mm)

    NMC-4001-10E 163.7 x 74.6 x 35.5

Compliance

  • Compliance

    NMC-4001-10E CE/FCC
