/NMC-4006Right_B_33-min20180806151647.jpg)

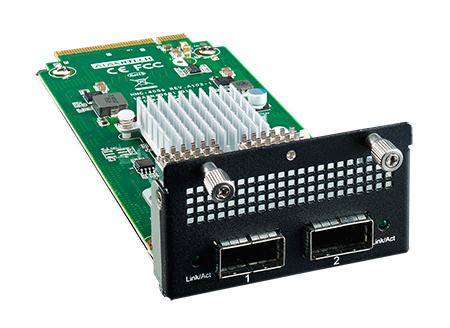

/NMC-4006Right_B_33-min20180806151715.jpg)

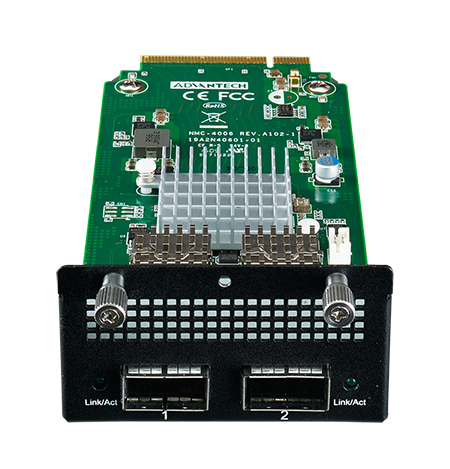

/NMC-4006_Front_B_22-min20180806151708.jpg)

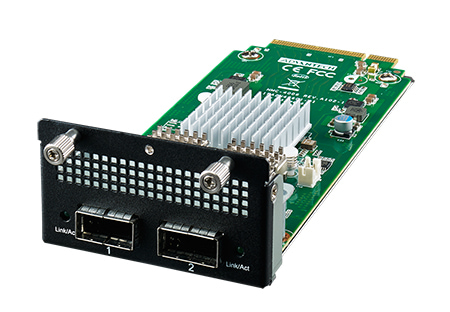

/NMC-4006_Left_B_28-min20180806151701.jpg)
- 1x Intel® XL710-BM2
- 2 ports QSFP connector
- PCI-E 3.0 x8
- RoHS compliant
NMCs are cost-optimized, high density IO modules for use in Advantech’s Network Application Platforms. A wide choice of GbE, 10GE and 40GE modules supporting copper and fiber interfaces with or without advanced LAN bypass gives our customers the flexibility to match varying deployment scenarios. Complementing a full range of network appliances supporting 1 to 8 NMC bays, these IO modules provide the scalability required to meet target price/performance ratios in even the most demanding use cases. At the same time, NMCs reduce the total cost of ownership and service cost via re-usability across the product range and multiple product generations. The option of factory and field installation enables upselling opportunities and "pay as you grow" concepts.
Leveraging best-in-class Intel® Ethernet controller technology, NMCs provide a "it just works" user experience and a maximum of software compatibility.
Leveraging best-in-class Intel® Ethernet controller technology, NMCs provide a "it just works" user experience and a maximum of software compatibility.
Especificação do Produto Download de Especificação
- Part Number
- Detalhes
-
NMC-4006-000010E
-
NMC-4006-02FSA1
- Interface
- PCI-E 3.0 x8
- PCI-E 3.0 x8
- Controller
- 1x Intel® X710-BM2
- 1x Intel® X710-BM2
- Speed
- 40GbE
- 40GbE
- Port
- 2x QSPF+ Port
- 2x QSPF+ Port
- LED Definition
- Port#1 & Port#2 Indicator: Link: LED on Act: Blinking
- Port#1 & Port#2 Indicator: Link: LED on Act: Blinking
- Advanced Software Features
- Advanced LAN Bypass
- Teaming support IEEE 802.3ad IEEE 802.1Q VLANs IEEE 802.3 2005 flow control support Interrupt moderation
- Teaming support IEEE 802.3ad IEEE 802.1Q VLANs IEEE 802.3 2005 flow control support Interrupt moderation
- N/A
- N/A
- Windows® Server 2012 R2, 2012, 2008 R2 X86-64 Linux RedHat EL 6.5 and 7.0 IA-32, X86-64, and IA-64 Linux SuSE SLES 11 SP3 and 12 IA-32, X86-64, and IA-64 FreeBSD 9 and 10 IA-32, X86-64, and IA-64 UEFI 2.1 and 2.3 X86-64 and I-64 VMware ESXi 5.1, ESXi 5.5 and ESXi 6.0 X86-64
- Windows® Server 2012 R2, 2012, 2008 R2 X86-64 Linux RedHat EL 6.5 and 7.0 IA-32, X86-64, and IA-64 Linux SuSE SLES 11 SP3 and 12 IA-32, X86-64, and IA-64 FreeBSD 9 and 10 IA-32, X86-64, and IA-64 UEFI 2.1 and 2.3 X86-64 and I-64 VMware ESXi 5.1, ESXi 5.5 and ESXi 6.0 X86-64
- Operating Conditions
- Operation: 0°C ~ 40°C Storage: -20°C ~ 67°C
- Operation: 0°C ~ 40°C Storage: -20°C ~ 67°C
- Power Voltage & consumption
- +12V ± 10% 15W
- +12V ± 10% 15W
- Dimension (mm)
- (W x H x D)=74.6 x 35.6 x 175.0mm
- (W x H x D)=74.6 x 42.4 x 174.7mm
- Compliance
- CE/FCC
- CE/FCC
Interface
-
Interface
NMC-4006-000010E PCI-E 3.0 x8 NMC-4006-02FSA1 PCI-E 3.0 x8
Controller
-
Controller
NMC-4006-000010E 1x Intel® X710-BM2 NMC-4006-02FSA1 1x Intel® X710-BM2
Speed
-
Speed
NMC-4006-000010E 40GbE NMC-4006-02FSA1 40GbE
Port
-
Port
NMC-4006-000010E 2x QSPF+ Port NMC-4006-02FSA1 2x QSPF+ Port
LED Definition
-
LED Definition
NMC-4006-000010E Port#1 & Port#2 Indicator: Link: LED on Act: Blinking NMC-4006-02FSA1 Port#1 & Port#2 Indicator: Link: LED on Act: Blinking
Advanced Software Features
-
Advanced Software Features
NMC-4006-000010E Teaming support IEEE 802.3ad IEEE 802.1Q VLANs IEEE 802.3 2005 flow control support Interrupt moderation NMC-4006-02FSA1 Teaming support IEEE 802.3ad IEEE 802.1Q VLANs IEEE 802.3 2005 flow control support Interrupt moderation -
Advanced LAN Bypass
NMC-4006-000010E N/A NMC-4006-02FSA1 N/A
OS Support
-
NMC-4006-000010E Windows® Server 2012 R2, 2012, 2008 R2 X86-64 Linux RedHat EL 6.5 and 7.0 IA-32, X86-64, and IA-64 Linux SuSE SLES 11 SP3 and 12 IA-32, X86-64, and IA-64 FreeBSD 9 and 10 IA-32, X86-64, and IA-64 UEFI 2.1 and 2.3 X86-64 and I-64 VMware ESXi 5.1, ESXi 5.5 and ESXi 6.0 X86-64 NMC-4006-02FSA1 Windows® Server 2012 R2, 2012, 2008 R2 X86-64 Linux RedHat EL 6.5 and 7.0 IA-32, X86-64, and IA-64 Linux SuSE SLES 11 SP3 and 12 IA-32, X86-64, and IA-64 FreeBSD 9 and 10 IA-32, X86-64, and IA-64 UEFI 2.1 and 2.3 X86-64 and I-64 VMware ESXi 5.1, ESXi 5.5 and ESXi 6.0 X86-64
Operating Conditions
-
Operating Conditions
NMC-4006-000010E Operation: 0°C ~ 40°C Storage: -20°C ~ 67°C NMC-4006-02FSA1 Operation: 0°C ~ 40°C Storage: -20°C ~ 67°C
Power Voltage & consumption
-
Power Voltage & consumption
NMC-4006-000010E +12V ± 10% 15W NMC-4006-02FSA1 +12V ± 10% 15W
Dimension (mm)
-
Dimension (mm)
NMC-4006-000010E (W x H x D)=74.6 x 35.6 x 175.0mm NMC-4006-02FSA1 (W x H x D)=74.6 x 42.4 x 174.7mm
Compliance
-
Compliance
NMC-4006-000010E CE/FCC NMC-4006-02FSA1 CE/FCC
