- Supports Intel® Xeon® Processor E3-1275/E3-1225/E3-1268LV3 and 4th Gen Intel® Core™ Processors i5-4570TE,i3-4360,i3-4330,i3-4330TE, Intel® Pentium® Processor G3320TE and Intel® Celeron® Processor G1820TE.
- Supports four DDR3L Un-buffered 1333/1600 DIMMs, up to 32GB (FWA-3230A); two DDR3L Un-buffered 1333/1600 DIMMs, up to16GB (FWA-3230B)
- Six 10/100/1000 Mbps LAN on Board with up to 3 bypass segments
- Two 2.5" SATA HDDs / SSDs or 1x 3.5" HDD
- Up to two Advantech Network Mezzanine Cards (NMCs)
- IPMI2.0 compliant Remote Management (optional)

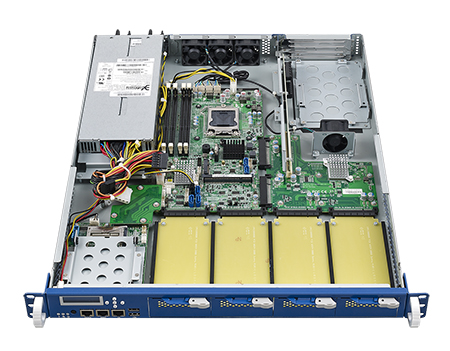

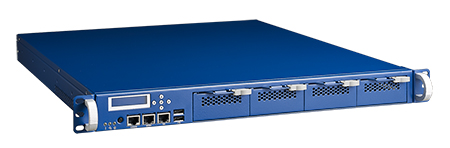

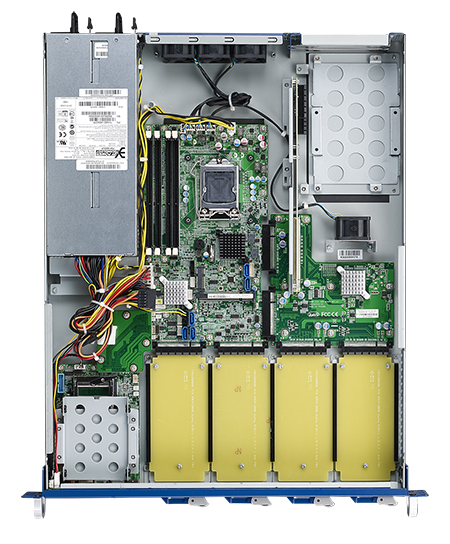

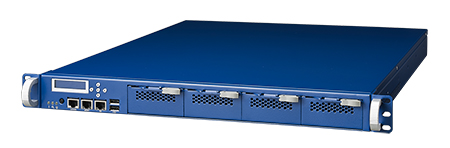

The FWA-3231 1U network appliance can scale from entry-level performance using Intel® Celeron® and Pentium® processors to the mid-range segment using Intel® Xeon® series processors, offering an outstanding price/performance ratio with each SKU. In addition to supporting the latest Haswell micro architecture enhancements for increased CPU performance, virtualization support and I/O throughput, the FWA-3231 adds support for latest Gigabit Ethernet controllers, PCIe gen.3 connectivity, support for remote management and advanced LAN bypass to create state-of-the-art platforms for specific enterprise networking applications.
Memory configurations can include four DDR3 1333/1600 DIMMs for up to 32GB in total.

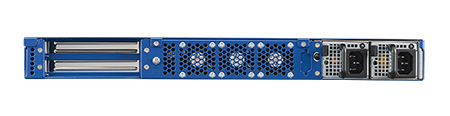

For I/O expandability, two standard PCIe full-height, half-length slots with rear access allow the integration of off-the-shelf PCIe adapters and up to four Advantech Network Mezzanine Card (NMC) slots offer further flexibility for additional front-panel network ports.

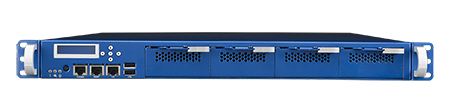

In the base configuration, the system comes with a single internal 2.5" SATA HDD/SSD, The management panel at the front provides one RJ45 Serial port, two Intel® I210-AT GbE Management ports,two USB Ports and an LCD Module, and LED Indicators for power/locate/alert for local system management ,maintenance, and diagnostics.
Memory configurations can include four DDR3 1333/1600 DIMMs for up to 32GB in total.
For I/O expandability, two standard PCIe full-height, half-length slots with rear access allow the integration of off-the-shelf PCIe adapters and up to four Advantech Network Mezzanine Card (NMC) slots offer further flexibility for additional front-panel network ports.
In the base configuration, the system comes with a single internal 2.5" SATA HDD/SSD, The management panel at the front provides one RJ45 Serial port, two Intel® I210-AT GbE Management ports,two USB Ports and an LCD Module, and LED Indicators for power/locate/alert for local system management ,maintenance, and diagnostics.
