What is RS-232? Fundamentals of the Protocol

10/22/2018

There is an entire generation of technicians in the work force today that did not grow up in the days of the TRS- 80 and Commodore 64 PC. Rather, they were brought up on broadband and Wi-Fi. To them that funny looking 9-pin connector that we old folks cut our teeth on is a mystery full of uncertainty and doubt – with a little bit of fear mixed in for good measure. In this paper, we hope to dispel some of the mystery and give you the essentials of RS-232.

What Is It?

At one time, RS-232 / EIA-232 was the most widely used communication standard on the planet. It was defined and redefined many times. The “EIA” stands for “Electronic Industries Association” and the “RS” stands for “Recommended Standard.” That being the case, it was always rather loose.

The physical characteristics of the hardware include both a 25-pin and 9-pin D sub connector. RS-232 is capable of operating at data rates up to 20 Kbps and can transmit data about 15 meters (50 ft). The absolute maximum data rate is difficult to determine due the differences in the transmission line and cable length. It is possible to operate at rather high data rates if the distance is short.

Voltage levels are defined as a range from -12 to +12 Volts. RS-232 is also single-ended. This means that a single electrical signal is compared to a common signal (Ground) to determine binary logic states. A voltage of +12 Volts (usually +3 to +10 Volts) represents a binary 0 and -12 Volts (-3 to -10 Volts) is a binary 1.

Also, RS-232 is an “asynchronous serial protocol”. This implies that the data word is transmitted as single bits to the receiver, which puts the word back together. To make this happen correctly, the data rate, hand-shaking, start and stop bits, and error checking must all be pre-defined.

RS-232 is also an “unbalanced protocol.” It uses a single conductor for each signal and a common ground. The signal level is relative to the common ground. This method is cost effective and easy. However, it is also susceptible to noise and almost always requires a lower data rate than balanced protocols such as RS-422 or RS-485. The effective distance is roughly 15 meters (50 ft).

Connections

One of the confusing aspects of RS-232 is the cable pin-out and the dual nature of the signals. In some cases Transmit Data may be an input and in others it is an output. To those of us who have been around awhile, it is second nature.

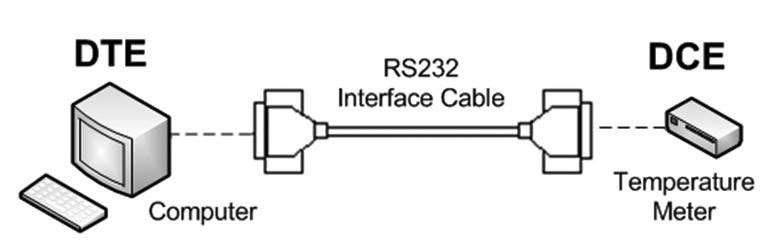

However, it can create problems to those who are unaware. RS-232 defines two types of equipment: the first is Date Terminal Equipment or DTE; the second is Data Communication Equipment or DCE. These terms were introduced by IBM and are used to differentiate the different device types at each end of the cable.

DTE is the computer or terminal that serves as the data source or the data sink. It also provides the control functions. The DTE usually has a male DB connector.

The DCE is the MODEM or peripheral device. It typically has a female DB connector. Connecting a DTE to a DCE is easy. The cabling is straight through. Pin x goes to Pin x on the other side.

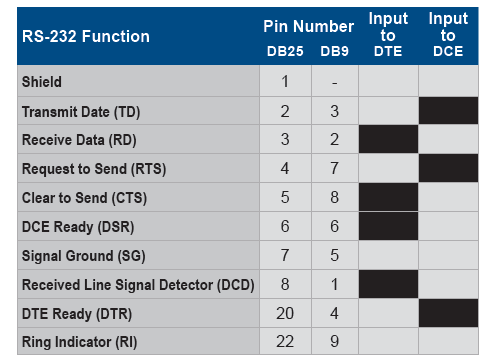

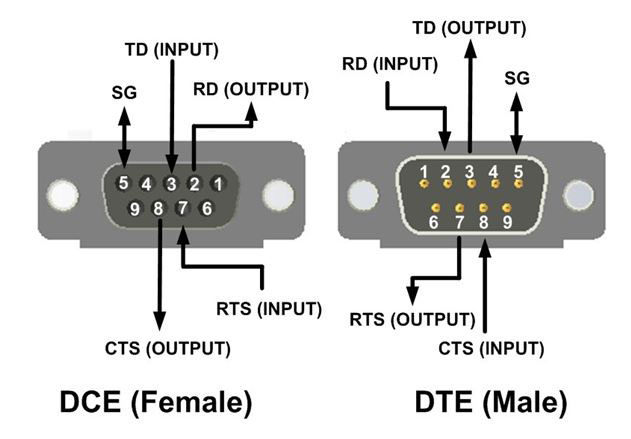

You run into problems when you try to connect two DTEs or DCEs to each other. In this case. you need to use a “null-modem” cable that crosses Transmit and Receive lines. This will make better sense by reviewing the following chart and connector diagrams.

2






Control Signals

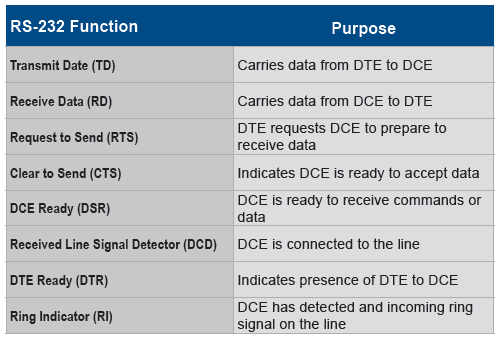

The hardware control signals can also be confusing. For the most part, we only use the actual data (TD and RD). In some cases, the hardware may be required to act as a “traffic cop” by asserting or RTS and CTS. Here is a list of the available control signals and what they do:




In some applications, RS-232’s use of the RTS and CTS lines is asymmetric: DTE asserts RTS to indicate a desire to transmit to the DCE, and in response, DCE asserts CTS to grant permission. This allows for half-duplex modems that disable their transmitters when not required and must transmit a synchronization preamble to the receiver when they are re-enabled. Most of the time though, flow control is handled by the software and the RTS and CTS lines do not play a significant role in communications.

However, these lines do present a handy but unplanned feature. Instead of letting the power available on these lines go to waste, they can be used to power a serial converter or other device. This is often called “port-powering.” Be careful though as some manufacturers provide an externally sourced, regulated 5 VDC power on Pin 1. This is used to power devices that have a higher current draw than can be supplied by the RS-232 port.

Protocol

The communications speed is measured in “baud.” Simply put this is a measure of “bits transferred per second.” For example, 19200 baud is 19200 bits per second.

Data bits are a measurement of the actual data bits in the word. For example, the below diagram shows an 8 bit word. The word is a single -yte transfer, including Start/Stop Bits, Data Bits and Parity. If you are transferring standard ASCII (0 to 127) seven data bits are enough. If it is an extended ASCII code (128 to 255), then 8 data bits are needed.

4

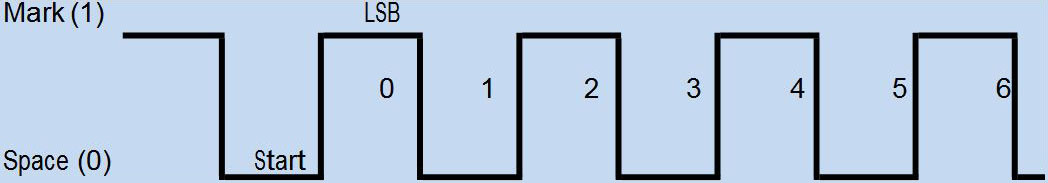

Typical RS-232 Waveform
1 Start Bit, 8 Data Bits, No Parity, 1 Stop Bit



Parity is a simple way to error-check. Parity is either Even, Odd, Mark or Space. You can also use No Parity. For Even and Odd parity, the serial port sets the parity bit (the last bit after the data bit) to a value to ensure that the data packet has an Even or Odd number of logic-high bits. For example, for Even parity, if the data is 10010010, the serial port sets the parity bit as 1 to keep the number of logic-high bits Even.

For Odd parity, the parity bit is 0 so that the number of logic-high bits is Odd. Mark parity simply sets the parity bit to logic-high and Space sets the parity bit to logic-low, so that the receiving party can determine if the data is corrupted.

Stop bits are used to signal the end of a communication packet. This also helps to synchronize different clocks on the serial devices.

Summary

In summary, RS-232 is not nearly as mysterious as it seems. If you have this basic knowledge, you should be able to utilize this valuable communications port both now and in the future. As far as the demise of the RS-232 port goes, who knows? Prognosticators have been threatening its demise for years. But billions of ports still remain active in the industrial world. The RS-232 work horse should be with us awhile longer. If you have further questions, please contact B+B SmartWorx Technical Support group. They will be happy to help you solve any and all RS-232 problems.
