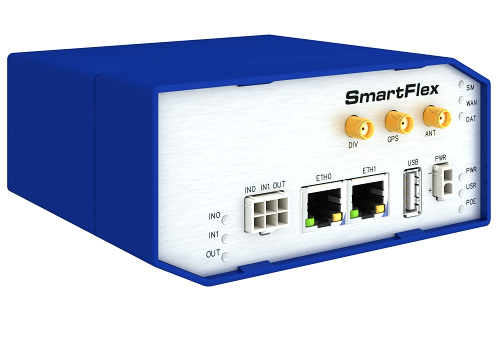

BB-SR30300015-SWH
SmartFlex, EMEA, 2x ETH, Plastic

Contact Us
Back
All Images
  • LTE LTE.3, 3G/HSPA+, GPRS/EDGE, EMEA, 2 SIM
  • LTE B1, B3, B7, B8, B20
  • CPU và bộ nhớ mạnh mẽ, hosting của các ứng dụng SW IoT
  • Gắn DIN rail, Sleep mode
  • 2 x ETH
  • GPS, USB, I/O 2x DI + 1x DO, MicroSD
  • Nhiệt độ hoạt động -40 ° C đến +75 ° C, nguồn điện 10 đến 60 VDC
  • Chứng chỉ: CE, UL C1D2/Atex, E8
  • Mạng nâng cao, Chẩn đoán, hỗ trợ VPN, Tường lửa
Datasheet (PDF)
Documents & Downloads
SmartFlex, EMEA, 2x ETH, Plastic

Product Specifications Download Spec

  • Part Number
  • Details
Region
  • EMEA
Interface
  • ETH Port(s)
  • USB
  • I/O
  • MicroSD
Wi-Fi / PS / PoE
  • GNSS receiver
Antenna Connectors
  • Cellular Antennas
  • GPS Antenna
Power
  • Power Input (DC)
  • Sleep Mode
Environment
  • Temperature (Operating Range)
  • Humidity (Operating Range)
Mechanism
  • Dimensions (W x H x D)
  • Mounting
  • Enclosure (Plastic)

Region

  • EMEA

    BB-SR30300015-SWH Yes

Interface

  • ETH Port(s)

    BB-SR30300015-SWH 2

  • USB

    BB-SR30300015-SWH 1

  • I/O

    BB-SR30300015-SWH 2 x DI + 1 x DO

  • MicroSD

    BB-SR30300015-SWH Yes

Wi-Fi / PS / PoE

  • GNSS receiver

    BB-SR30300015-SWH Yes

Antenna Connectors

  • Cellular Antennas

    BB-SR30300015-SWH 2 x SMA

  • GPS Antenna

    BB-SR30300015-SWH 1 x SMA

Power

  • Power Input (DC)

    BB-SR30300015-SWH 10 ~ 60 VDC

  • Sleep Mode

    BB-SR30300015-SWH Yes

Environment

  • Temperature (Operating Range)

    BB-SR30300015-SWH -40 ~ 75°C (-40 ~ 167°F)

  • Humidity (Operating Range)

    BB-SR30300015-SWH 0~95%

Mechanism

  • Dimensions (W x H x D)

    BB-SR30300015-SWH 125 x 55 x 97 mm

  • Mounting

    BB-SR30300015-SWH DIN-rail

  • Enclosure (Plastic)

    BB-SR30300015-SWH Yes
