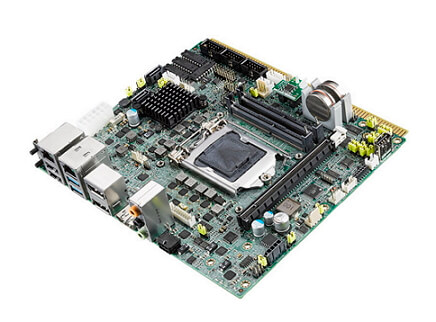

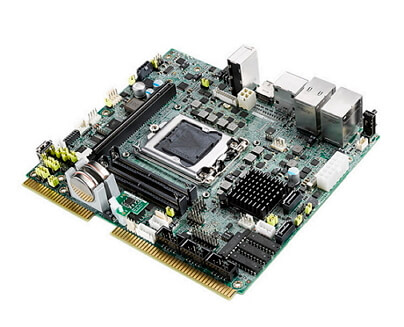

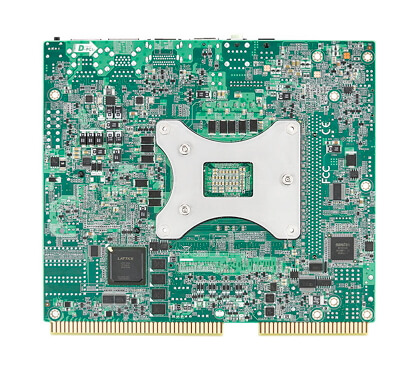

DPX-S445
6/7th Generation Intel® Core™ Gaming platform

Contact Us
Back
All Images
  • API trình điều khiển đầy đủ tính năng cho IO và bảo mật
Datasheet (PDF)
Documents & Downloads
CPU Core i thế hệ thứ 6 và thứ 7 của Intel làm cho DPX-S445 trở thành nền tảng chơi game hiệu năng cao nhất hiện có và phù hợp với các ứng dụng đòi hỏi khắt khe nhất. Lõi đồ họa tích hợp (Intel GT2-530) cung cấp hiệu năng tăng đáng kể so với các thế hệ tr

Product Specifications (5) Download Spec

  • Part Number
  • Details
Processor
  • CPU
  • Frequency
Memory
  • Max. Capacity

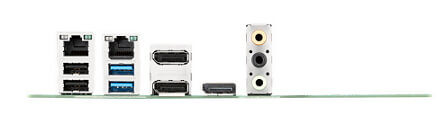

I/O
  • COM Port
  • Digital I/O
  • Video Output
  • USB3.0/2.0
Ethernet
  • Controller
Audio
  • Connector
Expansion
  • PCIe
Display
  • Controller
Security
  • SRAM
  • Intrusion inputs
  • TPM
  • EEPROM, ROM, IDROM

Processor

  • CPU

    DPX-S445-PNA1E Intel Quad Core CPU / i7-7700T
    DPX-S445-QLA1E Intel Quad Core CPU / i5-7500T
    DPX-S445-RYA1E Intel Dual Core CPU / i3-7101E
    DPX-S445-WHA1E Intel Quad Core CPU / i5-6500TE
    DPX-S445-YSA1E Intel Dual Core CPU / G4400

  • Frequency

    DPX-S445-PNA1E 2.9 GHz
    DPX-S445-QLA1E 2.7 GHz
    DPX-S445-RYA1E 3.9 GHz
    DPX-S445-WHA1E 2.3 GHz
    DPX-S445-YSA1E 3.3 GHz

Memory

  • Max. Capacity

    DPX-S445-PNA1E 32GB (16GB per SO-DIMM)
    DPX-S445-QLA1E 32GB (16GB per SO-DIMM)
    DPX-S445-RYA1E 32GB (16GB per SO-DIMM)
    DPX-S445-WHA1E 32GB (16GB per SO-DIMM)
    DPX-S445-YSA1E 32GB (16GB per SO-DIMM)

I/O

  • COM Port

    DPX-S445-PNA1E 10 (5 x RS232, 2 x CCTalk/RS232, 1 x TTL/RS232, 1 x ID003/RS232, 1 x RS485/RS232)
    DPX-S445-QLA1E 10 (5 x RS232, 2 x CCTalk/RS232, 1 x TTL/RS232, 1 x ID003/RS232, 1 x RS485/RS232)
    DPX-S445-RYA1E 10 (5 x RS232, 2 x CCTalk/RS232, 1 x TTL/RS232, 1 x ID003/RS232, 1 x RS485/RS232)
    DPX-S445-WHA1E 10 (5 x RS232, 2 x CCTalk/RS232, 1 x TTL/RS232, 1 x ID003/RS232, 1 x RS485/RS232)
    DPX-S445-YSA1E 10 (5 x RS232, 2 x CCTalk/RS232, 1 x TTL/RS232, 1 x ID003/RS232, 1 x RS485/RS232)

  • Digital I/O

    DPX-S445-PNA1E 32 input / 32 output
    DPX-S445-QLA1E 32 input / 32 output
    DPX-S445-RYA1E 32 input / 32 output
    DPX-S445-WHA1E 32 input / 32 output
    DPX-S445-YSA1E 32 input / 32 output

  • Video Output

    DPX-S445-PNA1E 3 x DP++
    DPX-S445-QLA1E 3 x DP++
    DPX-S445-RYA1E 3 x DP++
    DPX-S445-WHA1E 3 x DP++
    DPX-S445-YSA1E 3 x DP++

  • USB3.0/2.0

    DPX-S445-PNA1E 3/8 (total 11)
    DPX-S445-QLA1E 3/8 (total 11)
    DPX-S445-RYA1E 3/8 (total 11)
    DPX-S445-WHA1E 3/8 (total 11)
    DPX-S445-YSA1E 3/8 (total 11)

Ethernet

  • Controller

    DPX-S445-PNA1E GbE x2
    DPX-S445-QLA1E GbE x2
    DPX-S445-RYA1E GbE x2
    DPX-S445-WHA1E GbE x2
    DPX-S445-YSA1E GbE x2

Audio

  • Connector

    DPX-S445-PNA1E HD 5.1 audio (line level). Amplified outputs 15W/ch (FL, FR, LFE) with bass boost. SPDIF OUT x 2, SPDIF IN, MIC IN
    DPX-S445-QLA1E HD 5.1 audio (line level). Amplified outputs 15W/ch (FL, FR, LFE) with bass boost. SPDIF OUT x 2, SPDIF IN, MIC IN
    DPX-S445-RYA1E HD 5.1 audio (line level). Amplified outputs 15W/ch (FL, FR, LFE) with bass boost. SPDIF OUT x 2, SPDIF IN, MIC IN
    DPX-S445-WHA1E HD 5.1 audio (line level). Amplified outputs 15W/ch (FL, FR, LFE) with bass boost. SPDIF OUT x 2, SPDIF IN, MIC IN
    DPX-S445-YSA1E HD 5.1 audio (line level). Amplified outputs 15W/ch (FL, FR, LFE) with bass boost. SPDIF OUT x 2, SPDIF IN, MIC IN

Expansion

  • PCIe

    DPX-S445-PNA1E Full speed Gen 3 PCI-E graphics expansion slot
    DPX-S445-QLA1E Full speed Gen 3 PCI-E graphics expansion slot
    DPX-S445-RYA1E Full speed Gen 3 PCI-E graphics expansion slot
    DPX-S445-WHA1E Full speed Gen 3 PCI-E graphics expansion slot
    DPX-S445-YSA1E Full speed Gen 3 PCI-E graphics expansion slot

Display

  • Controller

    DPX-S445-PNA1E Integrated – High performance chipset graphics Intel GT2-530
    DPX-S445-QLA1E Integrated – High performance chipset graphics Intel GT2-530
    DPX-S445-RYA1E Integrated – High performance chipset graphics Intel GT2-530
    DPX-S445-WHA1E Integrated – High performance chipset graphics Intel GT2-530
    DPX-S445-YSA1E Integrated – High performance chipset graphics Intel GT2-530

Security

  • SRAM

    DPX-S445-PNA1E 8MB
    DPX-S445-QLA1E 8MB
    DPX-S445-RYA1E 8MB
    DPX-S445-WHA1E 8MB
    DPX-S445-YSA1E 8MB

  • Intrusion inputs

    DPX-S445-PNA1E 8
    DPX-S445-QLA1E 8
    DPX-S445-RYA1E 8
    DPX-S445-WHA1E 8
    DPX-S445-YSA1E 8

  • TPM

    DPX-S445-PNA1E 1.2 / 2.0
    DPX-S445-QLA1E 1.2 / 2.0
    DPX-S445-RYA1E 1.2 / 2.0
    DPX-S445-WHA1E 1.2 / 2.0
    DPX-S445-YSA1E 1.2 / 2.0

  • EEPROM, ROM, IDROM

    DPX-S445-PNA1E Y
    DPX-S445-QLA1E Y
    DPX-S445-RYA1E Y
    DPX-S445-WHA1E Y
    DPX-S445-YSA1E Y
