/NMC-0121_Right_P_R20180810161746.png)

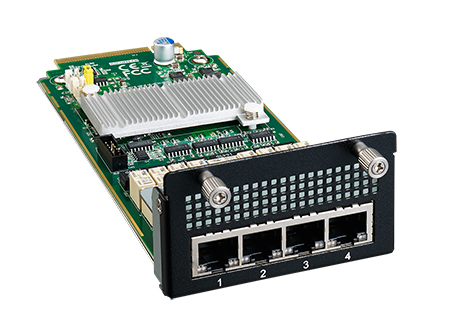

/NMC-0121_Right_B_67-min20180806103700.jpg)

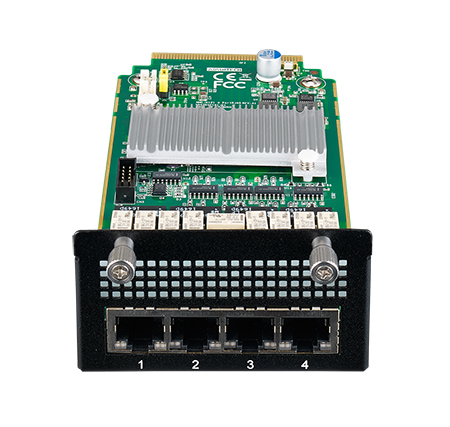

/NMC-0121_Front_B_23-min20180806103651.jpg)

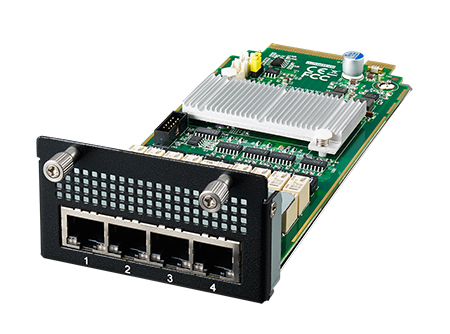

/NMC-0121_Left_B_51-min20180806103641.jpg)
- 1x 英特爾 ® i350_AM4
- 4 埠 RJ45 連接器
- PCI-E 2.0 x4
- 用於IPMI管理的 NC-SI
- 提供區域網路型號（高級局域網路）
- 符合 RoHS 標準
NMC是成本優化的高密度IO模組，用於研華的網路應用平臺。多種 GbE、10GE 和 40GE 模組可供選擇，支援帶或不帶高級 LAN 旁路的銅纜和光纖介面，使我們的客戶能夠靈活地匹配不同的部署方案。這些 IO 模組補充了支援 1 至 8 個 NMC 托架的全系列網路設備，即使在最苛刻的用例中也能提供滿足目標性價比所需的可擴充性。同時，NMC 通過跨產品系列和多代產品的可重用性降低了總擁有成本和服務成本。工廠和現場安裝選項提供了追加銷售機會和「隨增長而付費」的概念。
NMC 利用一流的英特爾®乙太網控制器技術，提供“它只是工作”的用戶體驗和最大的軟體相容性。
規格 (4) 下載規格表
- 產品料號
- 相關訊息
-
NMC-0121-000010E
-
NMC-0121-000110E
-
NMC-0121-04CBSA1
-
NMC-0121-04CSA1
- Controller
- 1x Intel® I350_AM4
- 1x Intel® I350_AM4
- 1x Intel® I350_AM4
- 1x Intel® I350_AM4
- Interface
- 1x PCIe x4, Gen2
- 1x PCIe x4, Gen2
- 1x PCIe x4, Gen2
- 1x PCIe x4, Gen2
- Speed
- 1GbE
- 1GbE
- -
- -
- Port
- 4x RJ45 Ports
- 4x RJ45 Ports
- 4x RJ45 Ports
- 4x RJ45 Ports
- LED Definition
- 10Mbps: LED off, 100Mbps: LED on (Amber), 1000Mbps: LED on (Green), Link: LED on, Act: Blinking
- 10Mbps: LED off, 100Mbps: LED on (Amber), 1000Mbps: LED on (Green), Link: LED on, Act: Blinking
- -
- -
- Advanced Software Features
- Advanced LAN Bypass
- Teaming support IEEE 802.3ad IEEE 802.1Q VLANs IEEE 802.3 2005 flow control support Interrupt moderation
- Teaming support IEEE 802.3ad IEEE 802.1Q VLANs IEEE 802.3 2005 flow control support Interrupt moderation
- -
- -
- N/A
- yes
- yes
- N/A
- Windows® Server 2012 R2, 2012, 2008 R2 X86-64 Linux RedHat EL 6.5 and 7.0 IA-32, X86-64, and IA-64 Linux SuSE SLES 11 SP3 and 12 IA-32, X86-64, and IA-64 FreeBSD 9 and 10 IA-32, X86-64, and IA-64 UEFI 2.1 and 2.3 X86-64 and I-64
- Windows® Server 2012 R2, 2012, 2008 R2 X86-64 Linux RedHat EL 6.5 and 7.0 IA-32, X86-64, and IA-64 Linux SuSE SLES 11 SP3 and 12 IA-32, X86-64, and IA-64 FreeBSD 9 and 10 IA-32, X86-64, and IA-64 UEFI 2.1 and 2.3 X86-64 and I-64
- -
- -
- Operating Conditions
- Operation: 0°C ~ 45°C Storage: -20°C ~ 67°C
- Operation: 0°C ~ 45°C Storage: -20°C ~ 67°C
- -
- -
- Power Voltage & consumption
- +12V ± 15% 16W
- +12V ± 15% 16W
- -
- -
- Dimension (mm)
- 163.7 x 74.6 x 35.5
- 163.7 x 74.6 x 35.5
- -
- -
- Compliance
- CE/FCC
- CE/FCC
- -
- -
Controller
-
Controller
NMC-0121-000010E 1x Intel® I350_AM4 NMC-0121-000110E 1x Intel® I350_AM4 NMC-0121-04CBSA1 1x Intel® I350_AM4 NMC-0121-04CSA1 1x Intel® I350_AM4
Interface
-
Interface
NMC-0121-000010E 1x PCIe x4, Gen2 NMC-0121-000110E 1x PCIe x4, Gen2 NMC-0121-04CBSA1 1x PCIe x4, Gen2 NMC-0121-04CSA1 1x PCIe x4, Gen2
Speed
-
Speed
NMC-0121-000010E 1GbE NMC-0121-000110E 1GbE NMC-0121-04CBSA1 - NMC-0121-04CSA1 -
Port
-
Port
NMC-0121-000010E 4x RJ45 Ports NMC-0121-000110E 4x RJ45 Ports NMC-0121-04CBSA1 4x RJ45 Ports NMC-0121-04CSA1 4x RJ45 Ports
LED Definition
-
LED Definition
NMC-0121-000010E 10Mbps: LED off, 100Mbps: LED on (Amber), 1000Mbps: LED on (Green), Link: LED on, Act: Blinking NMC-0121-000110E 10Mbps: LED off, 100Mbps: LED on (Amber), 1000Mbps: LED on (Green), Link: LED on, Act: Blinking NMC-0121-04CBSA1 - NMC-0121-04CSA1 -
Advanced Software Features
-
Advanced Software Features
NMC-0121-000010E Teaming support IEEE 802.3ad IEEE 802.1Q VLANs IEEE 802.3 2005 flow control support Interrupt moderation NMC-0121-000110E Teaming support IEEE 802.3ad IEEE 802.1Q VLANs IEEE 802.3 2005 flow control support Interrupt moderation NMC-0121-04CBSA1 - NMC-0121-04CSA1 - -
Advanced LAN Bypass
NMC-0121-000010E N/A NMC-0121-000110E yes NMC-0121-04CBSA1 yes NMC-0121-04CSA1 N/A
OS Support
-
NMC-0121-000010E Windows® Server 2012 R2, 2012, 2008 R2 X86-64 Linux RedHat EL 6.5 and 7.0 IA-32, X86-64, and IA-64 Linux SuSE SLES 11 SP3 and 12 IA-32, X86-64, and IA-64 FreeBSD 9 and 10 IA-32, X86-64, and IA-64 UEFI 2.1 and 2.3 X86-64 and I-64 NMC-0121-000110E Windows® Server 2012 R2, 2012, 2008 R2 X86-64 Linux RedHat EL 6.5 and 7.0 IA-32, X86-64, and IA-64 Linux SuSE SLES 11 SP3 and 12 IA-32, X86-64, and IA-64 FreeBSD 9 and 10 IA-32, X86-64, and IA-64 UEFI 2.1 and 2.3 X86-64 and I-64 NMC-0121-04CBSA1 - NMC-0121-04CSA1 -
Operating Conditions
-
Operating Conditions
NMC-0121-000010E Operation: 0°C ~ 45°C Storage: -20°C ~ 67°C NMC-0121-000110E Operation: 0°C ~ 45°C Storage: -20°C ~ 67°C NMC-0121-04CBSA1 - NMC-0121-04CSA1 -
Power Voltage & consumption
-
Power Voltage & consumption
NMC-0121-000010E +12V ± 15% 16W NMC-0121-000110E +12V ± 15% 16W NMC-0121-04CBSA1 - NMC-0121-04CSA1 -
Dimension (mm)
-
Dimension (mm)
NMC-0121-000010E 163.7 x 74.6 x 35.5 NMC-0121-000110E 163.7 x 74.6 x 35.5 NMC-0121-04CBSA1 - NMC-0121-04CSA1 -
Compliance
-
Compliance
NMC-0121-000010E CE/FCC NMC-0121-000110E CE/FCC NMC-0121-04CBSA1 - NMC-0121-04CSA1 -
