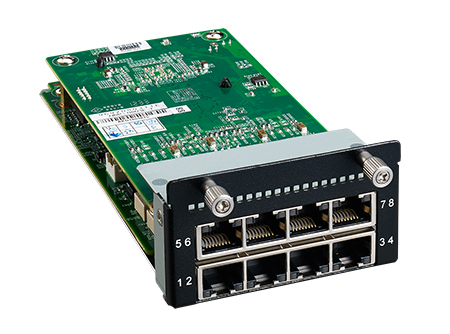

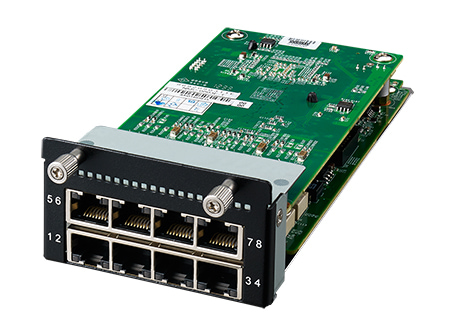

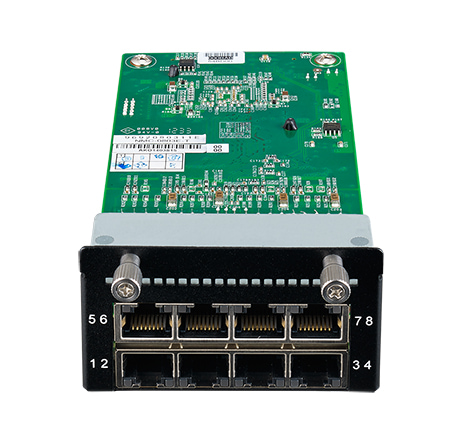

NMC是成本優化的高密度IO模組，用於研華的網路應用平臺。多種 GbE、10GE 和 40GE 模組可供選擇，支援帶或不帶高級 LAN 旁路的銅纜和光纖介面，使我們的客戶能夠靈活地匹配不同的部署方案。這些 IO 模組補充了支援 1 至 8 個 NMC 托架的全系列網路設備，即使在最苛刻的用例中也能提供滿足目標性價比所需的可擴充性。同時，NMC 通過跨產品系列和多代產品的可重用性降低了總擁有成本和服務成本。工廠和現場安裝選項提供了追加銷售機會和“按需付費”的概念><。
NMC 利用一流的英特爾®乙太網控制器技術，提供“它只是工作”的用戶體驗和最大的軟體相容性。
規格 下載規格表
- 產品料號
- 相關訊息
-
NMC-0806-000110E
-
NMC-0806-08CBSA1
-
NMC-0806-08CSA1
- Interface
- 2x PCI-E 2.0 x4
- 2x PCI-E 2.0 x4
- 2x PCI-E 2.0 x4
- Speed
- 1GbE
- 1GbE
- 1GbE
- Port
- 8x RJ45
- 8x RJ45
- 8x RJ45
- LED Definition
- 10Mbps: LED off, 100Mbps: LED on (Amber), 1000Mbps: LED on (Green), Link: LED on, Act: Blinking
- 10Mbps: LED off, 100Mbps: LED on (Amber), 1000Mbps: LED on (Green), Link: LED on, Act: Blinking
- 10Mbps: LED off, 100Mbps: LED on (Amber), 1000Mbps: LED on (Green), Link: LED on, Act: Blinking
- Controller
- 2x Intel® i350_AM4
- 2x Intel® i350_AM4
- 2x Intel® i350_AM4
- Advanced LAN Bypass
- Advanced Software Features
- yes
- yes
- N/A
- Teaming support IEEE 802.3ad IEEE 802.1Q VLANs IEEE 802.3 2005 flow control support Interrupt moderation
- Teaming support IEEE 802.3ad IEEE 802.1Q VLANs IEEE 802.3 2005 flow control support Interrupt moderation
- Teaming support IEEE 802.3ad IEEE 802.1Q VLANs IEEE 802.3 2005 flow control support Interrupt moderation
- Windows® Server 2012 R2, 2012, 2008 R2 X86-64 Linux RedHat EL 6.5 and 7.0 IA-32, X86-64, and IA-64 Linux SuSE SLES 11 SP3 and 12 IA-32, X86-64, and IA-64 FreeBSD 9 and 10 IA-32, X86-64, and IA-64 UEFI 2.1 and 2.3 X86-64 and I-64 VMware ESXi 5.1, ESXi 5.5 and ESXi 6.0 X86-64
- Windows® Server 2012 R2, 2012, 2008 R2 X86-64 Linux RedHat EL 6.5 and 7.0 IA-32, X86-64, and IA-64 Linux SuSE SLES 11 SP3 and 12 IA-32, X86-64, and IA-64 FreeBSD 9 and 10 IA-32, X86-64, and IA-64 UEFI 2.1 and 2.3 X86-64 and I-64 VMware ESXi 5.1, ESXi 5.5 and ESXi 6.0 X86-64
- Windows® Server 2012 R2, 2012, 2008 R2 X86-64 Linux RedHat EL 6.5 and 7.0 IA-32, X86-64, and IA-64 Linux SuSE SLES 11 SP3 and 12 IA-32, X86-64, and IA-64 FreeBSD 9 and 10 IA-32, X86-64, and IA-64 UEFI 2.1 and 2.3 X86-64 and I-64 VMware ESXi 5.1, ESXi 5.5 and ESXi 6.0 X86-64
- Operating Conditions
- Operation: 0°C ~ 40°C Storage: -20°C ~ 67°C
- Operation: 0°C ~ 40°C Storage: -20°C ~ 67°C
- Operation: 0°C ~ 40°C Storage: -20°C ~ 67°C
- Power Voltage & consumption
- +12V ± 10% 10W
- +12V ± 10% 10W
- +12V ± 10% 10W
- Dimension (mm)
- (W x H x D)=74.6 x 35.6 x 175.0mm
- (W x H x D)=74.6 x 42.4 x 174.7mm
- (W x H x D)=74.6 x 42.4 x 174.7mm
- Compliance
- CE/FCC
- CE/FCC
- CE/FCC
Interface
-
Interface
NMC-0806-000110E 2x PCI-E 2.0 x4 NMC-0806-08CBSA1 2x PCI-E 2.0 x4 NMC-0806-08CSA1 2x PCI-E 2.0 x4
Speed
-
Speed
NMC-0806-000110E 1GbE NMC-0806-08CBSA1 1GbE NMC-0806-08CSA1 1GbE
Port
-
Port
NMC-0806-000110E 8x RJ45 NMC-0806-08CBSA1 8x RJ45 NMC-0806-08CSA1 8x RJ45
LED Definition
-
LED Definition
NMC-0806-000110E 10Mbps: LED off, 100Mbps: LED on (Amber), 1000Mbps: LED on (Green), Link: LED on, Act: Blinking NMC-0806-08CBSA1 10Mbps: LED off, 100Mbps: LED on (Amber), 1000Mbps: LED on (Green), Link: LED on, Act: Blinking NMC-0806-08CSA1 10Mbps: LED off, 100Mbps: LED on (Amber), 1000Mbps: LED on (Green), Link: LED on, Act: Blinking
Controller
-
Controller
NMC-0806-000110E 2x Intel® i350_AM4 NMC-0806-08CBSA1 2x Intel® i350_AM4 NMC-0806-08CSA1 2x Intel® i350_AM4
Advanced Software Features
-
Advanced LAN Bypass
NMC-0806-000110E yes NMC-0806-08CBSA1 yes NMC-0806-08CSA1 N/A -
Advanced Software Features
NMC-0806-000110E Teaming support IEEE 802.3ad IEEE 802.1Q VLANs IEEE 802.3 2005 flow control support Interrupt moderation NMC-0806-08CBSA1 Teaming support IEEE 802.3ad IEEE 802.1Q VLANs IEEE 802.3 2005 flow control support Interrupt moderation NMC-0806-08CSA1 Teaming support IEEE 802.3ad IEEE 802.1Q VLANs IEEE 802.3 2005 flow control support Interrupt moderation
OS Support
-
NMC-0806-000110E Windows® Server 2012 R2, 2012, 2008 R2 X86-64 Linux RedHat EL 6.5 and 7.0 IA-32, X86-64, and IA-64 Linux SuSE SLES 11 SP3 and 12 IA-32, X86-64, and IA-64 FreeBSD 9 and 10 IA-32, X86-64, and IA-64 UEFI 2.1 and 2.3 X86-64 and I-64 VMware ESXi 5.1, ESXi 5.5 and ESXi 6.0 X86-64 NMC-0806-08CBSA1 Windows® Server 2012 R2, 2012, 2008 R2 X86-64 Linux RedHat EL 6.5 and 7.0 IA-32, X86-64, and IA-64 Linux SuSE SLES 11 SP3 and 12 IA-32, X86-64, and IA-64 FreeBSD 9 and 10 IA-32, X86-64, and IA-64 UEFI 2.1 and 2.3 X86-64 and I-64 VMware ESXi 5.1, ESXi 5.5 and ESXi 6.0 X86-64 NMC-0806-08CSA1 Windows® Server 2012 R2, 2012, 2008 R2 X86-64 Linux RedHat EL 6.5 and 7.0 IA-32, X86-64, and IA-64 Linux SuSE SLES 11 SP3 and 12 IA-32, X86-64, and IA-64 FreeBSD 9 and 10 IA-32, X86-64, and IA-64 UEFI 2.1 and 2.3 X86-64 and I-64 VMware ESXi 5.1, ESXi 5.5 and ESXi 6.0 X86-64
Operating Conditions
-
Operating Conditions
NMC-0806-000110E Operation: 0°C ~ 40°C Storage: -20°C ~ 67°C NMC-0806-08CBSA1 Operation: 0°C ~ 40°C Storage: -20°C ~ 67°C NMC-0806-08CSA1 Operation: 0°C ~ 40°C Storage: -20°C ~ 67°C
Power Voltage & consumption
-
Power Voltage & consumption
NMC-0806-000110E +12V ± 10% 10W NMC-0806-08CBSA1 +12V ± 10% 10W NMC-0806-08CSA1 +12V ± 10% 10W
Dimension (mm)
-
Dimension (mm)
NMC-0806-000110E (W x H x D)=74.6 x 35.6 x 175.0mm NMC-0806-08CBSA1 (W x H x D)=74.6 x 42.4 x 174.7mm NMC-0806-08CSA1 (W x H x D)=74.6 x 42.4 x 174.7mm
Compliance
-
Compliance
NMC-0806-000110E CE/FCC NMC-0806-08CBSA1 CE/FCC NMC-0806-08CSA1 CE/FCC
