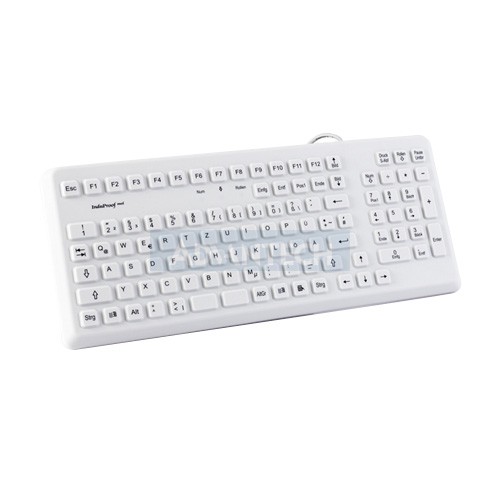

- Silicone keyboard with 105 keys
- IP68 protection, can be submerged into liquids
- Can be cleaned with soapy water, disinfectants or other cleaning agents
- Special coating for excellent mechanical and chemical resistance
Product Specifications
- Part Number
- Details
-
XKB-M105-F8UG-I1
- Industrial or Medical
- Manufacturer
- Number of Keys
- Current Input
- Keyswitch Technology
- Operating Force
- Switch Travel
- Switching Cycles
- Protection Level (max)
- Cover
- Housing Design
- Housing Material
- Interfaces
- Operating Temperature
- Storage Temperature
- Dimension ( W x H x D)
- Weight
- Warranty
- Medical
- InduKey
- 105
- N/A
- Carbon contact technology
- 2 N
- 1 mm
- Approx. 2 mil. (per key)
- IP68
- Silicone Rubber
- N/A
- Silicone
- USB
- -20 ~ 70 °C ( -4~ 158 °F )
- -25 ~ 80 °C ( -13 ~ 176 °F )
- 6.3 x 0.83 x 14.96 inches / 160 x 21.1 x 380 mm
- 1.3 kg ( 2.86 lbs)
- 2 years
Keyboard
-
Industrial or Medical
XKB-M105-F8UG-I1 Medical -
Manufacturer
XKB-M105-F8UG-I1 InduKey -
Number of Keys
XKB-M105-F8UG-I1 105 -
Current Input
XKB-M105-F8UG-I1 N/A -
Keyswitch Technology
XKB-M105-F8UG-I1 Carbon contact technology -
Operating Force
XKB-M105-F8UG-I1 2 N -
Switch Travel
XKB-M105-F8UG-I1 1 mm -
Switching Cycles
XKB-M105-F8UG-I1 Approx. 2 mil. (per key) -
Protection Level (max)
XKB-M105-F8UG-I1 IP68 -
Cover
XKB-M105-F8UG-I1 Silicone Rubber -
Housing Design
XKB-M105-F8UG-I1 N/A -
Housing Material
XKB-M105-F8UG-I1 Silicone -
Interfaces
XKB-M105-F8UG-I1 USB -
Operating Temperature
XKB-M105-F8UG-I1 -20 ~ 70 °C ( -4~ 158 °F ) -
Storage Temperature
XKB-M105-F8UG-I1 -25 ~ 80 °C ( -13 ~ 176 °F ) -
Dimension ( W x H x D)
XKB-M105-F8UG-I1 6.3 x 0.83 x 14.96 inches / 160 x 21.1 x 380 mm -
Weight
XKB-M105-F8UG-I1 1.3 kg ( 2.86 lbs) -
Warranty
XKB-M105-F8UG-I1 2 years
