2U Chassis

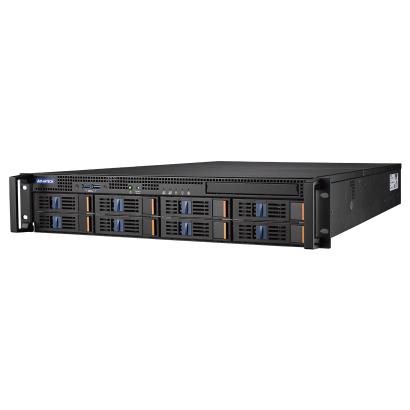

HPC-8208

2U Rackmount Chassis for ATX/EATX Motherboard with 8 Hot-Swap SAS3/SATA3 HDD Trays and RPS for storage servers.

  • Supports ATX/EATX motherboard with dual processors
  • Eight shock-resistant hot-swap disk trays supporting 3.5" or 2.5" SAS3/ SATA3 drives, one slim ODD, and two 2.5" internal drives
  • Dual front USB 3.0 ports
  • Supports 80plus single or redundant power supply up to 800W
  • LED indicators and audible alarm notification for system fault detection

Certifications:

Support Links:

Datasheet Download 3D Model Technical Downloads
  • 2U Rackmount Chassis for ATX/EATX Motherboard with 8 Hot-Swap SAS3/SATA3 HDD Trays and RPS for storage servers.

Specifications

Front Storage
2.5" HDD/SSD
  • 8 x 3.5" or 2.5" Hot-swappable
  • 8 x 3.5" or 2.5" Hot-swappable
  • 8 x 3.5" or 2.5" Hot-swappable
3.5" HDD
  • 8 x 3.5" or 2.5" Hot-swappable
  • 8 x 3.5" or 2.5" Hot-swappable
  • 8 x 3.5" or 2.5" Hot-swappable
Internal Storage
2.5" HDD/SSD
  • 2
  • 2
  • 2
Front Panel & I/O
USB
  • 2 x USB 3.2 Gen1
  • 2 x USB 3.2 Gen1
  • 2 x USB 3.2 Gen1
LED & Switch
  • Power, HDD, LAN1, LAN2, System information
  • Power, HDD, LAN1, LAN2, System information
  • Power, HDD, LAN1, LAN2, System information
Rear I/O
Display
  • 2 x 9-pin D-Sub
  • 2 x 9-pin D-Sub
  • 2 x 9-pin D-Sub
Power Supplies
Type
  • 1+1 Redundant PSU
  • 1+1 Redundant PSU
  • Single PSU
Input Voltage
  • AC 100-240V
  • AC 100-240V
  • AC 100-240V
Watts
  • 550 W
  • 850 W
  • 850 W
Efficiency Rating
  • 80+
  • 80+
  • 80+
Cooling
System Fan
  • 3 (8038)
  • 3 (8038)
  • 3 (8038)
Environment
Operating Temperature
  • 0 ~ 40 °C (32 ~ 104 °F)
  • 0 ~ 40 °C (32 ~ 104 °F)
  • 0 ~ 40 °C (32 ~ 104 °F)
Non-Operating Temperature
  • -40 ~ 70 °C (-40 ~ 156 °F)
  • -40 ~ 70 °C (-40 ~ 156 °F)
  • -40 ~ 70 °C (-40 ~ 156 °F)
Operating Humidity
  • 10 ~ 95%
  • 10 ~ 95%
  • 10 ~ 95%
Non-Operating Humidity
  • 10 ~ 95%, non-condensing
  • 10 ~ 95%, non-condensing
  • 10 ~ 95%, non-condensing
Operating Vibration
  • 1 Grms
  • 1 Grms
  • 1 Grms
Non-Operating Vibration
  • 2 Grms
  • 2 Grms
  • 2 Grms
Operating Shock
  • 10 G
  • 10 G
  • 10 G
Physical Characteristics
Dimensions (W x H x D)
  • 438 x 88.4 x 620 mm (17.24" x 3.48" x 24.41")
  • 438 x 88.4 x 620 mm (17.24" x 3.48" x 24.41")
  • 438 x 88.4 x 620 mm (17.24" x 3.48" x 24.41")
Weight
  • 13.7 kg (30.12 lb)
  • 13.7 kg (30.12 lb)
  • 13.7 kg (30.12 lb)
Certification
EMC
  • CE/FCC
  • CE/FCC
  • CE/FCC
