On-the-Fly Inspection: Revolutionizing Precision and Efficiency in Manufacturing
19-06-2024

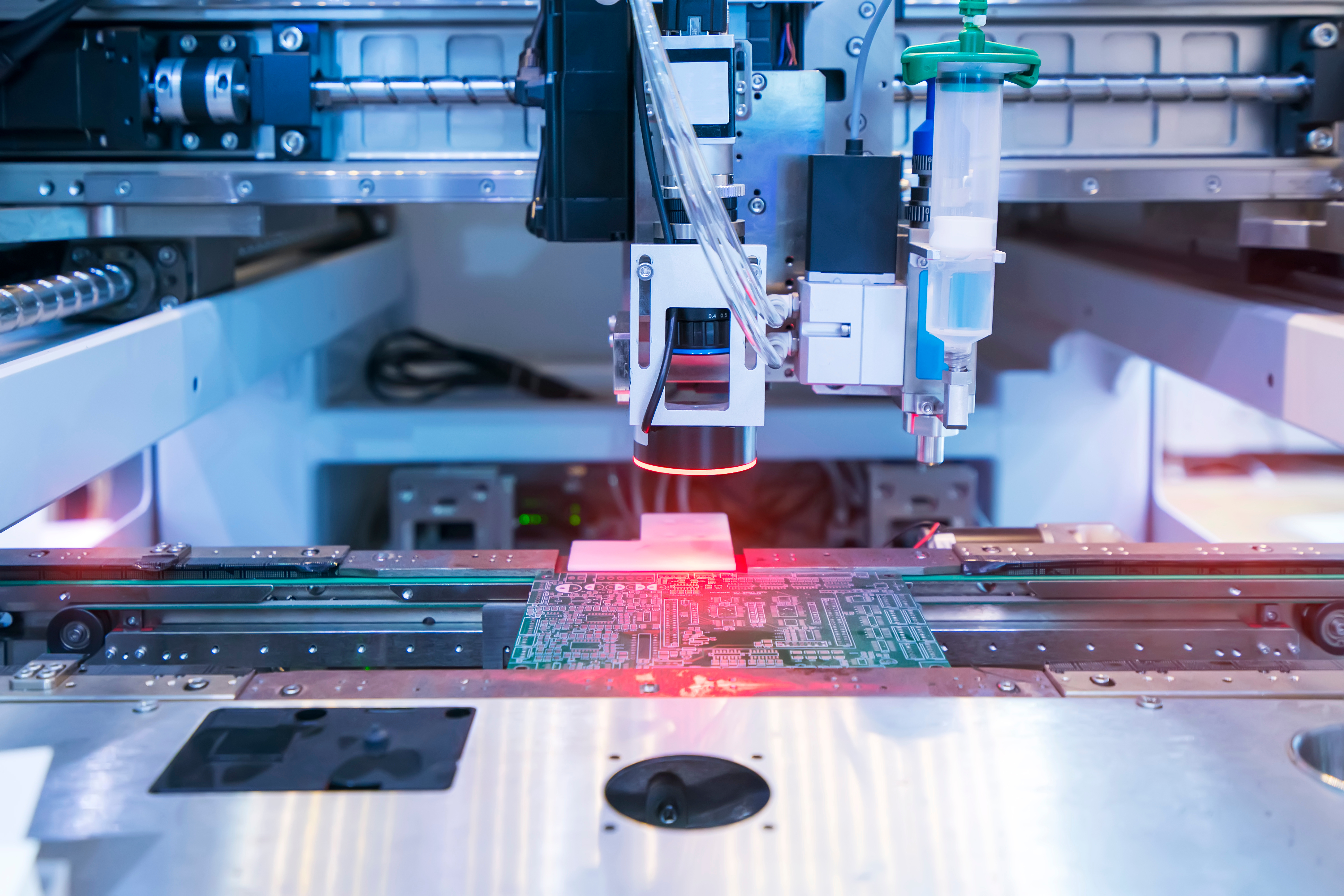

In the realm of manufacturing, on-the-fly inspection technologies represent a significant leap over traditional inspection methods. These modern systems offer real-time, high-speed image capture capabilities that integrate seamlessly with manufacturing processes, eliminating the need to halt production lines for quality checks. This shift not only streamlines manufacturing but also underscores a major advancement in industrial technology.
Limitations of Traditional AOI Systems
The Bottleneck of Slow Image Capture
Traditional inspection methods depend on static image capture, requiring each item to be stationary during the inspection process. This approach is inherently slow, creating bottlenecks in high-throughput industries such as electronics and automotive manufacturing, where speed and efficiency are crucial.
Production Halts: The Downtime Dilemma
One of the most significant drawbacks of traditional inspection systems is their requirement to stop production lines for inspections. These interruptions directly reduce productivity and increase operational costs, compounding disruptions across the production schedule.
Challenges with Integration and System Rigidity
Traditional inspection systems typically involve multiple standalone devices that lack seamless communication, posing substantial integration challenges. Upgrading these systems to incorporate new technologies or to scale up for increased production demands often necessitates costly and complex modifications.
.jpg)
Technical Insights into Advanced On-the-Fly Inspection
Real-Time Trigger Mechanisms
Advanced on-the-fly inspection systems revolutionize quality control through advanced trigger mechanisms that enable continuous, real-time communication and control. These mechanisms allow the capture of images as items move past inspection points, synchronizing perfectly with ongoing production activities, thereby maintaining the flow of the manufacturing line.
The Role of Position Synchronized Output (PSO)
Position Synchronized Output (PSO) is critical for precise, timely inspections conducted as products proceed along the production line. PSO significantly minimizes motion-related errors such as blurring or misalignment, enhancing overall inspection quality.
Core Technologies Powering On-the-Fly Inspection

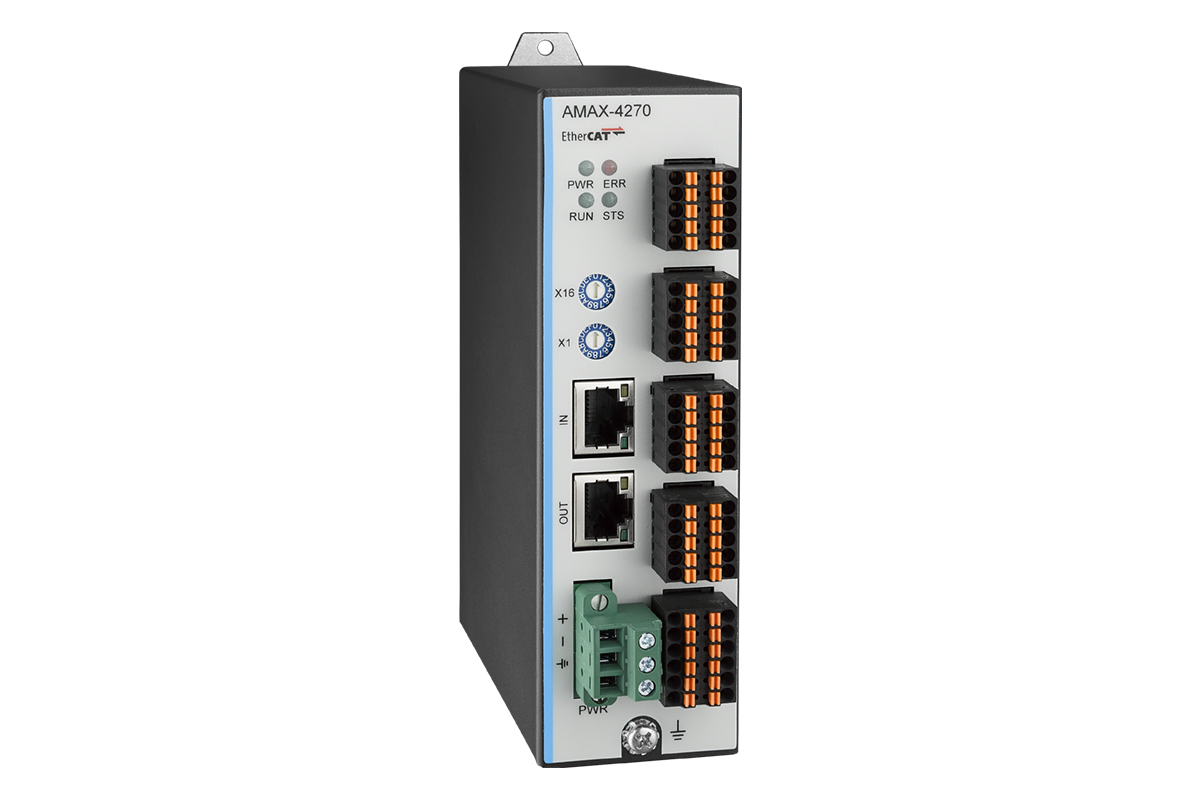

AMAX-4270 EtherCAT Trigger and Latch SubDevice
The AMAX-4270 stands out in dynamic, high-speed environments, delivering sophisticated trigger mechanisms for precise image capture control. This ensures that inspections keep pace with production, eliminating any slowdowns. Key features include:
- Four-channel comparison trigger functionality for accurate image capture at designated positions.
- Space-saving design, smaller than a motor drive.
- Extended libraries in CODESYS, including function blocks and examples to ease project completion.
- Supports 1D & 2D Position Synchronized Output (PSO) to ensure high-speed and precise switch control during inspection processes.
AMAX-3245C CiA402 Device Profile 4-Axis EtherCAT Motion Module
The AMAX-3245C excels in complex motion control tasks and is compliant with the standard EtherCAT and CiA-402 protocol, making it highly versatile:
- Allows conversion of EtherCAT communication into pulse signals, enabling control of servo and stepper motors.
- Facilitates the use of CiA402-defined motion commands directly through Softlogic software like CODESYS, enhancing programming flexibility and ease.
- Features a compact size that accommodates easy integration into various industrial setups.
Diverse Industrial Applications
In electronics manufacturing, on-the-fly inspection ensures high throughput while upholding the quality of sensitive components. The automotive industry benefits from rapid part inspections at various assembly stages, and the pharmaceutical sector achieves enhanced precision and speed, vital for meeting strict quality standards.
Across various industries, on-the-fly inspection systems dramatically reduce waste, decrease costs, and elevate product quality by enabling faster, more precise inspections.
Looking Ahead: Future Trends in On-the-Fly Inspection
The future of on-the-fly inspection is likely to incorporate more AI and machine learning, enhancing the ability to predict maintenance needs and detect defects with greater accuracy. These advancements promise to further boost efficiency and reliability of inspection systems.
On-the-fly inspection technologies significantly enhance manufacturing processes, improving both efficiency and quality. As these technologies evolve, they are set to offer even more substantial improvements in industrial productivity and reliability, heralding a new era in manufacturing excellence.
