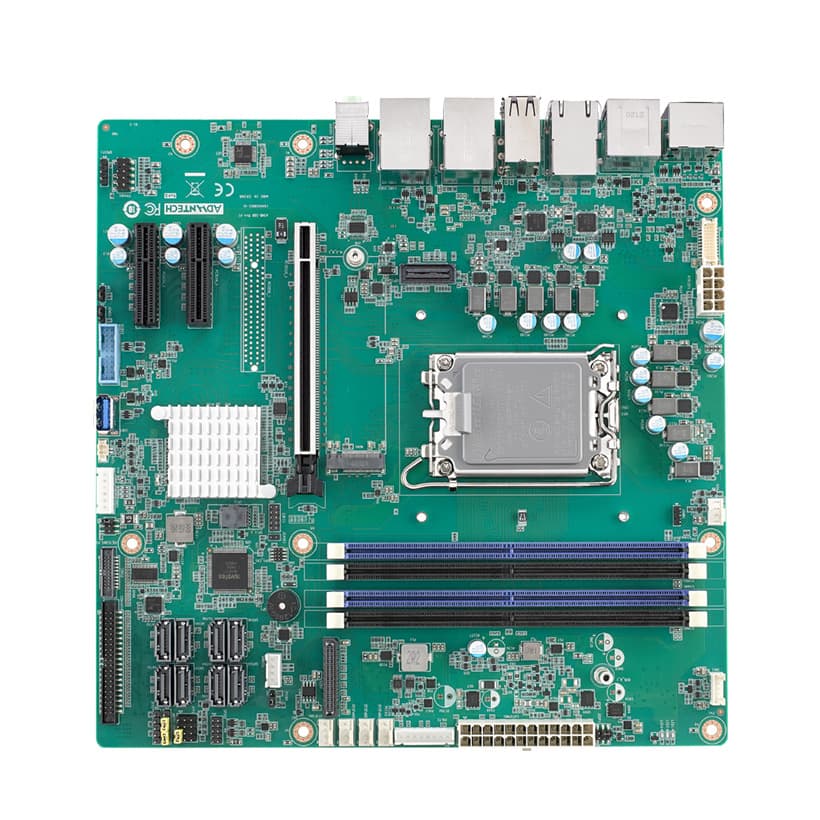

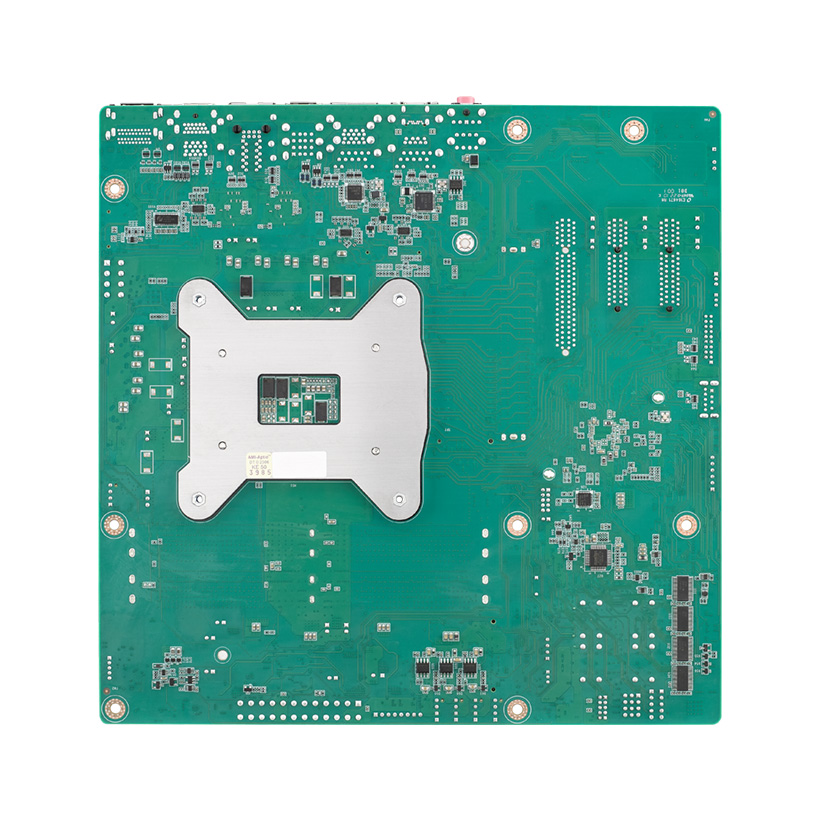

AIMB-588

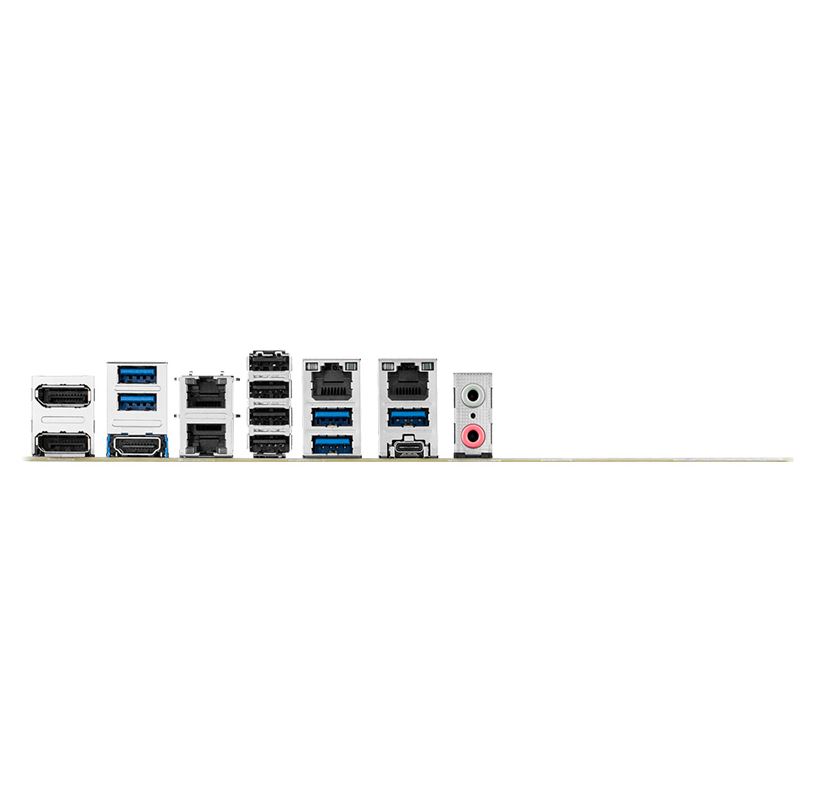

Intel® 12th Gen Core™ (Alder Lake-S) i9/i7/i5/i3 LGA1700, MicroATX with2 DP++/HDMI/eDP /8 SATA/6 COM/1 Gbe LANs/ 3 2.5GbE Lans/8 USB3.2 Gen2/4 USB2.0

Contact Us
Back
New
All Images
  • Supports Intel® 12th Gen Core™ (Alder Lake-S) i9/i7/i5/i3 processor with Q670E/ R680E/ H610E chipset
  • PCIe x16 slot Gen5, PCIe x4 slot Gen4, PCIe x4 slot Gen3
  • Max up to 8 USB 3.2, 1 USB 3.2 Gen2 Type C, 4 USB 2.0, 8 SATAIII, 1 GbE LAN, 3 2.5GbE LANs, 1 M.2 M-Key
  • Supports four displays. (2 DP++, HDMI, eDP)
  • Supports up to 32GB DDR5 4400MHz with four UDIMMs
Datasheet (PDF)
Documents & Downloads

Product Specifications Download Spec

  • Part Number
  • Details
Processor
  • CPU
  • Core Number
  • Max Speed
  • CPU TDP
  • BIOS
  • Smart Cache
  • Chipset
Form Factor
  • Form Factor
Memory
  • Max. Capacity
  • Technology
  • ECC Support
  • Socket
Display
  • Controller
  • Graphic Engine
  • Output
  • DDI (HDMI/DVI/DisplayPort)
  • LCD (TTL/LVDS/eDP)
  • Multiple Display
Expansion
  • PCI Express x 16
  • PCI Express x 8
  • PCI Express x 4
Ethernet
  • Controller
  • Connector
Storage
  • SATA
  • RAID
I/O
  • GPIO
  • USB 3.2
  • USB2.0
  • COM Port
  • TPM
  • Smart Fan
Power
  • Power Type
  • Power Consumption
  • Connector
  • Battery
Environment
  • Temperature (Storage)
  • Temperature (Operating)
  • Vibration Resistance
Physical
  • Dimension (mm)
  • Weight
Operating System
  • Microsoft Windows
  • Linux
  • SUSIAccess
Certifications
  • EMC

Processor

  • CPU

    AIMB-588R-00A1 Intel® 12th generation Core™ I processor/ Pentium®/Celeron®
    AIMB-588Q-00A1 Intel® 12th generation Core™ I processor/ Pentium®/Celeron®
    AIMB-588H-00A1 Intel® 12th generation Core™ I processor/ Pentium®/Celeron®

  • Core Number

    AIMB-588R-00A1 up to 16C
    AIMB-588Q-00A1 up to 16C
    AIMB-588H-00A1 up to 16C

  • Max Speed

    AIMB-588R-00A1 Up to 5.0GHz
    AIMB-588Q-00A1 Up to 5.0GHz
    AIMB-588H-00A1 Up to 5.0GHz

  • CPU TDP

    AIMB-588R-00A1 65W/45W/35W
    AIMB-588Q-00A1 65W/45W/35W
    AIMB-588H-00A1 65W/45W/35W

  • BIOS

    AIMB-588R-00A1 AMI 256 Mbit SPI
    AIMB-588Q-00A1 AMI 256 Mbit SPI
    AIMB-588H-00A1 AMI 256 Mbit SPI

  • Smart Cache

    AIMB-588R-00A1 4MB/6MB/12MB/18MB/25MB/30MB
    AIMB-588Q-00A1 4MB/6MB/12MB/18MB/25MB/30MB
    AIMB-588H-00A1 4MB/6MB/12MB/18MB/25MB/30MB

  • Chipset

    AIMB-588R-00A1 R680E
    AIMB-588Q-00A1 Q670E
    AIMB-588H-00A1 H610E

Form Factor

  • Form Factor

    AIMB-588R-00A1 MicroATX
    AIMB-588Q-00A1 MicroATX
    AIMB-588H-00A1 MicroATX

Memory

  • Max. Capacity

    AIMB-588R-00A1 up to 128GB
    AIMB-588Q-00A1 up to 128GB
    AIMB-588H-00A1 up to 128GB

  • Technology

    AIMB-588R-00A1 Dual Channel DDR5, 3600/4000/4400MHz with 288 pin U-DIMM
    AIMB-588Q-00A1 Dual Channel DDR5, 3600/4000/4400MHz with 288 pin U-DIMM
    AIMB-588H-00A1 Dual Channel DDR5, 3600/4000/4400MHz with 288 pin U-DIMM

  • ECC Support

    AIMB-588R-00A1 Yes
    AIMB-588Q-00A1 No
    AIMB-588H-00A1 No

  • Socket

    AIMB-588R-00A1 4 x 288-pin UDIMM
    AIMB-588Q-00A1 4 x 288-pin UDIMM
    AIMB-588H-00A1 4 x 288-pin UDIMM

Display

  • Controller

    AIMB-588R-00A1 Intel UHD Graphics
    AIMB-588Q-00A1 Intel UHD Graphics
    AIMB-588H-00A1 Intel UHD Graphics

  • Graphic Engine

    AIMB-588R-00A1 DirectX 12,OpenGL 4.5,OpenCL 2.1
    AIMB-588Q-00A1 DirectX 12,OpenGL 4.5,OpenCL 2.1
    AIMB-588H-00A1 DirectX 12,OpenGL 4.5,OpenCL 2.1

  • Output

    AIMB-588R-00A1 1 x HDMI, 1 x eDP, 2 x DisplayPort
    AIMB-588Q-00A1 1 x HDMI, 1 x eDP, 2 x DisplayPort
    AIMB-588H-00A1 1 x HDMI, 1 x eDP, 2 x DisplayPort

  • DDI (HDMI/DVI/DisplayPort)

    AIMB-588R-00A1 HDMI: 4096x2160@60Hz / DP++: 4096x2304@60Hz
    AIMB-588Q-00A1 HDMI: 4096x2160@60Hz / DP++: 4096x2304@60Hz
    AIMB-588H-00A1 HDMI: 4096x2160@60Hz / DP++: 4096x2304@60Hz

  • LCD (TTL/LVDS/eDP)

    AIMB-588R-00A1 eDP: support to 3840 x 2160 @ 60 Hz
    AIMB-588Q-00A1 eDP: support to 3840 x 2160 @ 60 Hz
    AIMB-588H-00A1 eDP: support to 3840 x 2160 @ 60 Hz

  • Multiple Display

    AIMB-588R-00A1 Any 2, 3 or 4 outputs
    AIMB-588Q-00A1 Any 2, 3 or 4 outputs
    AIMB-588H-00A1 Dual/Triple

Expansion

  • PCI Express x 16

    AIMB-588R-00A1 1
    AIMB-588Q-00A1 1
    AIMB-588H-00A1 1

  • PCI Express x 8

    AIMB-588R-00A1 option
    AIMB-588Q-00A1 0
    AIMB-588H-00A1 0

  • PCI Express x 4

    AIMB-588R-00A1 1
    AIMB-588Q-00A1 1
    AIMB-588H-00A1 1

Ethernet

  • Controller

    AIMB-588R-00A1 1 x Intel i219LM / 3 x i225LM
    AIMB-588Q-00A1 1 x Intel i219LM / 1 x i225LM
    AIMB-588H-00A1 1 x Intel i219LM

  • Connector

    AIMB-588R-00A1 RJ45
    AIMB-588Q-00A1 RJ45
    AIMB-588H-00A1 RJ45

Storage

  • SATA

    AIMB-588R-00A1 8 x SATAIII (Max. Data Transfer Rate 600 MB/s)
    AIMB-588Q-00A1 8 x SATAIII (Max. Data Transfer Rate 600 MB/s)
    AIMB-588H-00A1 8 x SATAIII (Max. Data Transfer Rate 600 MB/s)

  • RAID

    AIMB-588R-00A1 Software RAID 0, 1, 5, 10
    AIMB-588Q-00A1 Software RAID 0, 1, 5, 10
    AIMB-588H-00A1 Software RAID 0, 1, 5, 10

I/O

  • GPIO

    AIMB-588R-00A1 8-bit
    AIMB-588Q-00A1 8-bit
    AIMB-588H-00A1 8-bit

  • USB 3.2

    AIMB-588R-00A1 8
    AIMB-588Q-00A1 8
    AIMB-588H-00A1 4

  • USB2.0

    AIMB-588R-00A1 4
    AIMB-588Q-00A1 4
    AIMB-588H-00A1 4

  • COM Port

    AIMB-588R-00A1 5 x RS232, 1 x RS232/ 422/ 485
    AIMB-588Q-00A1 5 x RS232, 1 x RS232/ 422/ 485
    AIMB-588H-00A1 5 x RS232, 1 x RS232/ 422/ 485

  • TPM

    AIMB-588R-00A1 TPM 2.0
    AIMB-588Q-00A1 TPM 2.0
    AIMB-588H-00A1 TPM 2.0

  • Smart Fan

    AIMB-588R-00A1 Yes
    AIMB-588Q-00A1 Yes
    AIMB-588H-00A1 Yes

Power

  • Power Type

    AIMB-588R-00A1 ATX
    AIMB-588Q-00A1 ATX
    AIMB-588H-00A1 ATX

  • Power Consumption

    AIMB-588R-00A1 19.6A@+5V / 24.04A@3.3V / 19A@12V / 18.5A@12V_8P / 2.5A@5Vsb
    AIMB-588Q-00A1 19.6A@+5V / 24.04A@3.3V / 19A@12V / 18.5A@12V_8P / 2.5A@5Vsb
    AIMB-588H-00A1 19.6A@+5V / 24.04A@3.3V / 19A@12V / 18.5A@12V_8P / 2.5A@5Vsb

  • Connector

    AIMB-588R-00A1 ATX24P
    AIMB-588Q-00A1 ATX24P
    AIMB-588H-00A1 ATX24P

  • Battery

    AIMB-588R-00A1 3V/200 mAH BR2032
    AIMB-588Q-00A1 3V/200 mAH BR2032
    AIMB-588H-00A1 3V/200 mAH BR2032

Environment

  • Temperature (Storage)

    AIMB-588R-00A1 - 40 ~ 85° C (-40 ~185° F)
    AIMB-588Q-00A1 - 40 ~ 85° C (-40 ~185° F)
    AIMB-588H-00A1 - 40 ~ 85° C (-40 ~185° F)

  • Temperature (Operating)

    AIMB-588R-00A1 0 ~ 60° C (32 ~ 140° F)
    AIMB-588Q-00A1 0 ~ 60° C (32 ~ 140° F)
    AIMB-588H-00A1 0 ~ 60° C (32 ~ 140° F)

  • Vibration Resistance

    AIMB-588R-00A1 3.5 Grms
    AIMB-588Q-00A1 3.5 Grms
    AIMB-588H-00A1 3.5 Grms

Physical

  • Dimension (mm)

    AIMB-588R-00A1 244 x 244 mm
    AIMB-588Q-00A1 244 x 244 mm
    AIMB-588H-00A1 244 x 244 mm

  • Weight

    AIMB-588R-00A1 1.2 kg (2.65 lb)
    AIMB-588Q-00A1 1.2 kg (2.65 lb)
    AIMB-588H-00A1 1.2 kg (2.65 lb)

Operating System

  • Microsoft Windows

    AIMB-588R-00A1 Yes
    AIMB-588Q-00A1 Yes
    AIMB-588H-00A1 Yes

  • Linux

    AIMB-588R-00A1 Yes
    AIMB-588Q-00A1 Yes
    AIMB-588H-00A1 Yes

  • SUSIAccess

    AIMB-588R-00A1 Yes
    AIMB-588Q-00A1 Yes
    AIMB-588H-00A1 Yes

Certifications

  • EMC

    AIMB-588R-00A1 CE, FCC
    AIMB-588Q-00A1 CE, FCC
    AIMB-588H-00A1 CE, FCC
