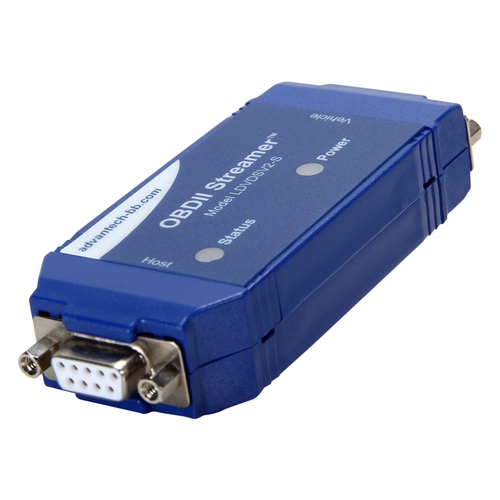

BB-LDVDSV2-S-P9D
OBDII STREAMER W/ PIN 9 POWER OUT

  • Vehicle Speed Signal Output pulse for driving external distance meters o 0V to 5V pulses, 1 kOhm output impedance. o 50% Duty Cycle o 3,500 pulses/km (5,632.7 pulses/mi.)
  • Ignition-On Signal Output
  • Status LED’s for vehicle connection and power
  • Automatic low power mode senses when vehicle speed & engine speed is zero.
  • Automatic disconnect when technician scan tool is connected (Requires separate OBDII Y-Cable)
  • Proprietary vehicle detection algorithm and embedded database lets the same hardware work on all compliant vehicles
  • Configurable parameter reporting by polling, at a fixed rate, or when a threshold is exceeded.
  • Wide Operating Temperature: -40 to 85 ºC (-40 to 185 ºF)
  • Low Power Consumption: 2W in Operating Mode; 0.15W in Automatic Sleep Mode (Key Off)
OBDII STREAMER W/ PIN 9 POWER OUT

Product Specifications Download Spec

  • Part Number
  • Details
General
  • Technology
  • Product Type
  • Converter Type

General

  • Technology

    BB-LDVDSV2-S-P9D Telematics
  • Product Type

    BB-LDVDSV2-S-P9D Converter
  • Converter Type

    BB-LDVDSV2-S-P9D RS-232 Interface, 1996 to 2007
