USB Extender, 4 Port, USB 2.0 over CAT 5e, 100m, US Power Supply

  • Purchased product from Icron
  • 4-port USB 2.0 extender in rugged metal enclosure
  • Extends USB 3,0, 2.0, 1.1 (low and full-speed) devices
  • Supports all USB devices up to 480Mbps
  • ExtremeUSB®: transparent USB extension; Plug and play; no software drivers required; Windows®, macOS™, and Linux®
  • Uses standard solid core Cat5e cable for easy installation
  • North America power cord included

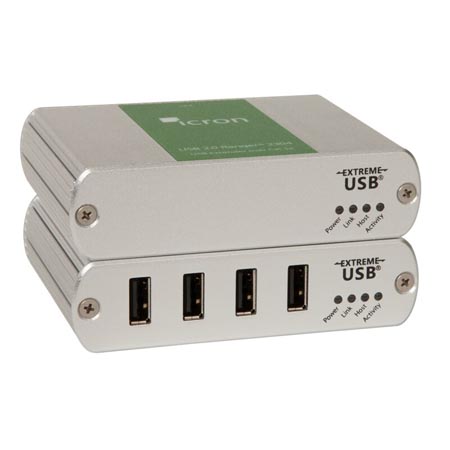

The USB 2.0 Ranger® 2304 is a 4-port USB 2.0 high-speed extender enabling USB 2.0 connections at up to 480Mbps over 100m (330ft) of Cat 5e/6/7 cabling. No additional software drivers needed. The Ranger 2304 provides a 4-port remote USB 2.0 powered hub that delivers 600mA to each port and extends up to four USB 3.0, 2.0 and 1.1 devices without an additional hub.


The plug-and play-Ranger 2304 offers faster throughputs when using read/write devices such as external hard drives and supports a greater number of connections (up to 31 devices and hubs). The Ranger 2304 is compatible with all leading operating system, and supports USB peripherals such as flash drives, keyboards, mice, webcams and interactive whiteboards.

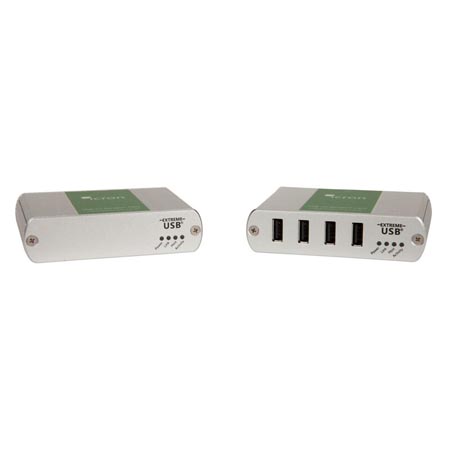

Includes:  local extender (LEX), remote extender (REX), USB cable (2m), North America power adapter, quick start guide.


Applications: industrial control, KVM extension, professional audio-visual, digital signage, security/monitoring (web camera, access control), medical device connectivity
