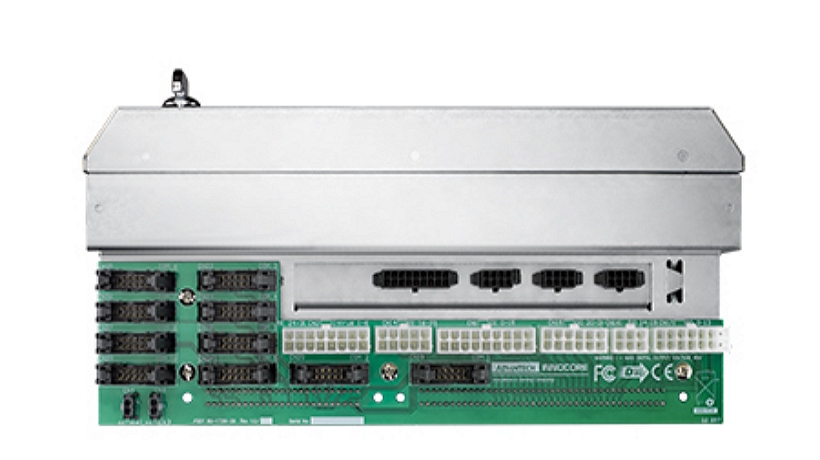

DPX-S2445
High Performance Intel® Multi-Screen Gaming Platform

お問い合わせ
戻る
すべての画像
  • Rugged logic box design
  • Security and access to meet the requirement of the gaming industry
  • Dual and Quad Core Intel CPUs from Celeron to Core i7
  • Full gaming features set
  • High performance integrated Intel GPU or PCI-Express graphics
  • Support for up to 150W ¾ length double-width graphics cards
  • 12VDC or ATX power supply compatible
  • "Futureproof" removable I/O shield design allow upgrade to future DPX-S motherboards, Easy service SSD/HDD module
データシート(PDF)
資料＆ダウンロード
The DPX-S2445 is a complete gaming system combining the unrivalled performance of Advantech-Innocore’s DPX-S445 motherboard with the convenience of the new DPX-S2000 enclosure. The DPX-S2445 system has a card slot bay for a PCI-Express graphics card that is wide enough for today’s high powered double- width graphics cards giving the customer the ability to upgrade from the integrated graphics or add more monitors (up to 7 or more). For mass storage the system includes a quick release carrier with shock mounting for solid state disk or hard drive.

製品詳細 詳細ダウンロード

  • パーツナンバー
  • 詳細
Processor
  • CPU
  • Frequency
Memory
  • Max. Capacity
I/O
  • COM Port
  • USB2.0
  • Digital I/O
  • Video Output
Ethernet
  • Controller
Audio
  • Connector
Display
  • Controller
Expansion
  • PCI Express x 16
Security
  • SRAM
  • Intrusion inputs
  • TPM
  • EEPROM, ROM, IDROM

Processor

  • CPU

    DPX-S2445-PNA1E Intel® 7th Generation Quad Core i7-7700T
    DPX-S2445-QLA1E Intel® 7th Generation Quad Core i5-7500T
    DPX-S2445-WHA1E Intel® 6th Generation Quad Core i5-6500TE

  • Frequency

    DPX-S2445-PNA1E 2.9 GHz
    DPX-S2445-QLA1E 2.7 GHz
    DPX-S2445-WHA1E 2.3 GHz

Memory

  • Max. Capacity

    DPX-S2445-PNA1E 32GB (16GB per SO-DIMM)
    DPX-S2445-QLA1E 32GB (16GB per SO-DIMM)
    DPX-S2445-WHA1E 32GB (16GB per SO-DIMM)

I/O

  • COM Port

    DPX-S2445-PNA1E 10 (5 x RS232, 2 x CCTalk/RS232, 1 x TTL/RS232, 1 x ID003/RS232, 1 x RS485/RS232)
    DPX-S2445-QLA1E 10 (5 x RS232, 2 x CCTalk/RS232, 1 x TTL/RS232, 1 x ID003/RS232, 1 x RS485/RS232)
    DPX-S2445-WHA1E 10 (5 x RS232, 2 x CCTalk/RS232, 1 x TTL/RS232, 1 x ID003/RS232, 1 x RS485/RS232)

  • USB2.0

    DPX-S2445-PNA1E 11 (3 x USB 3.0/ 2.0)
    DPX-S2445-QLA1E 11 (3 x USB 3.0/ 2.0)
    DPX-S2445-WHA1E 11 (3 x USB 3.0/ 2.0)

  • Digital I/O

    DPX-S2445-PNA1E 32 inputs / 32 outputs
    DPX-S2445-QLA1E 32 inputs / 32 outputs
    DPX-S2445-WHA1E 32 inputs / 32 outputs

  • Video Output

    DPX-S2445-PNA1E 3 x DP++
    DPX-S2445-QLA1E 3 x DP++
    DPX-S2445-WHA1E 3 x DP++

Ethernet

  • Controller

    DPX-S2445-PNA1E GbE x2
    DPX-S2445-QLA1E GbE x2
    DPX-S2445-WHA1E GbE x2

Audio

  • Connector

    DPX-S2445-PNA1E HD 5.1 audio (line level). Amplified outputs 15W/ch (FL, FR, LFE) with bass boost. SPDIF OUT x 2, SPDIF IN, MIC IN
    DPX-S2445-QLA1E HD 5.1 audio (line level). Amplified outputs 15W/ch (FL, FR, LFE) with bass boost. SPDIF OUT x 2, SPDIF IN, MIC IN
    DPX-S2445-WHA1E HD 5.1 audio (line level). Amplified outputs 15W/ch (FL, FR, LFE) with bass boost. SPDIF OUT x 2, SPDIF IN, MIC IN

Display

  • Controller

    DPX-S2445-PNA1E Integrated – High performance chipset graphics Intel GT2-530
    DPX-S2445-QLA1E Integrated – High performance chipset graphics Intel GT2-530
    DPX-S2445-WHA1E Integrated – High performance chipset graphics Intel GT2-530

Expansion

  • PCI Express x 16

    DPX-S2445-PNA1E Full speed Gen 3 PCI-E graphics expansion slot
    DPX-S2445-QLA1E Full speed Gen 3 PCI-E graphics expansion slot
    DPX-S2445-WHA1E Full speed Gen 3 PCI-E graphics expansion slot

Security

  • SRAM

    DPX-S2445-PNA1E 8MB
    DPX-S2445-QLA1E 8MB
    DPX-S2445-WHA1E 8MB

  • Intrusion inputs

    DPX-S2445-PNA1E 8
    DPX-S2445-QLA1E 8
    DPX-S2445-WHA1E 8

  • TPM

    DPX-S2445-PNA1E 1.2 / 2.0
    DPX-S2445-QLA1E 1.2 / 2.0
    DPX-S2445-WHA1E 1.2 / 2.0

  • EEPROM, ROM, IDROM

    DPX-S2445-PNA1E Y
    DPX-S2445-QLA1E Y
    DPX-S2445-WHA1E Y
