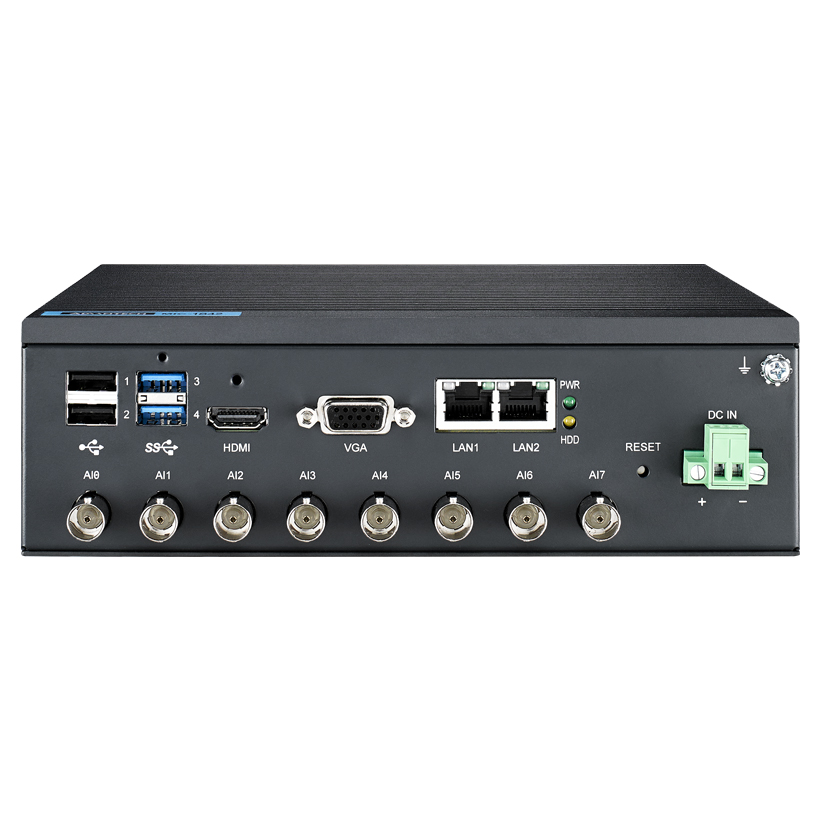

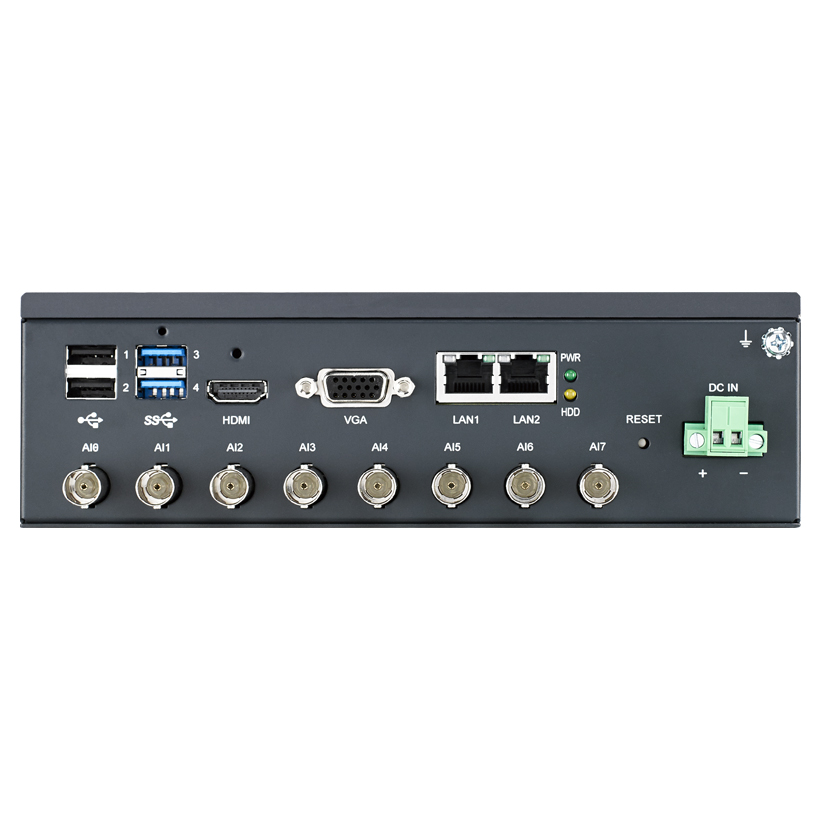

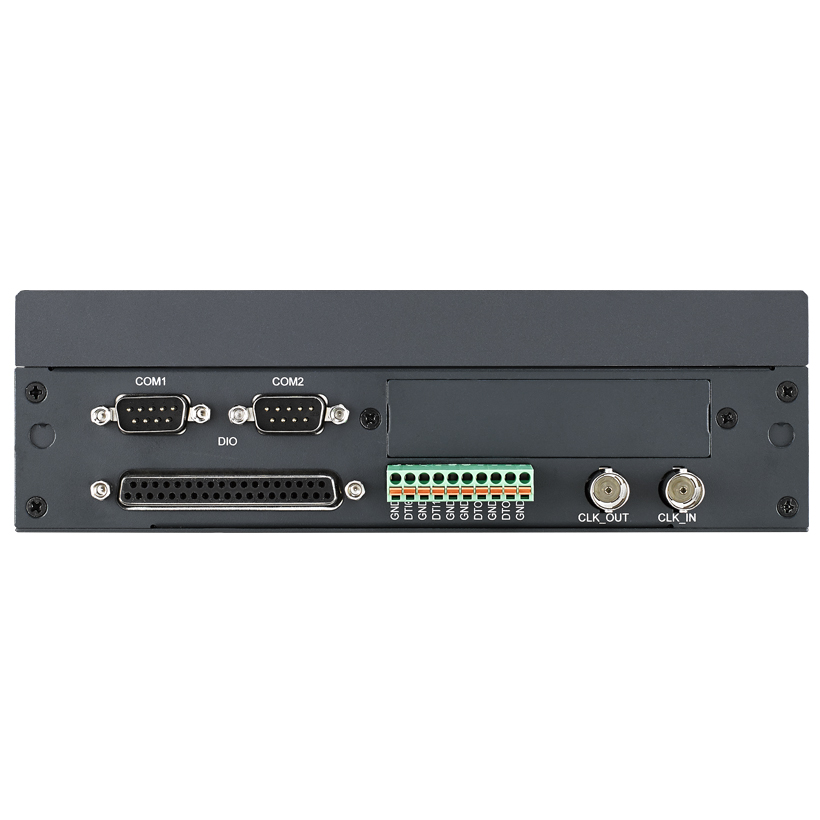

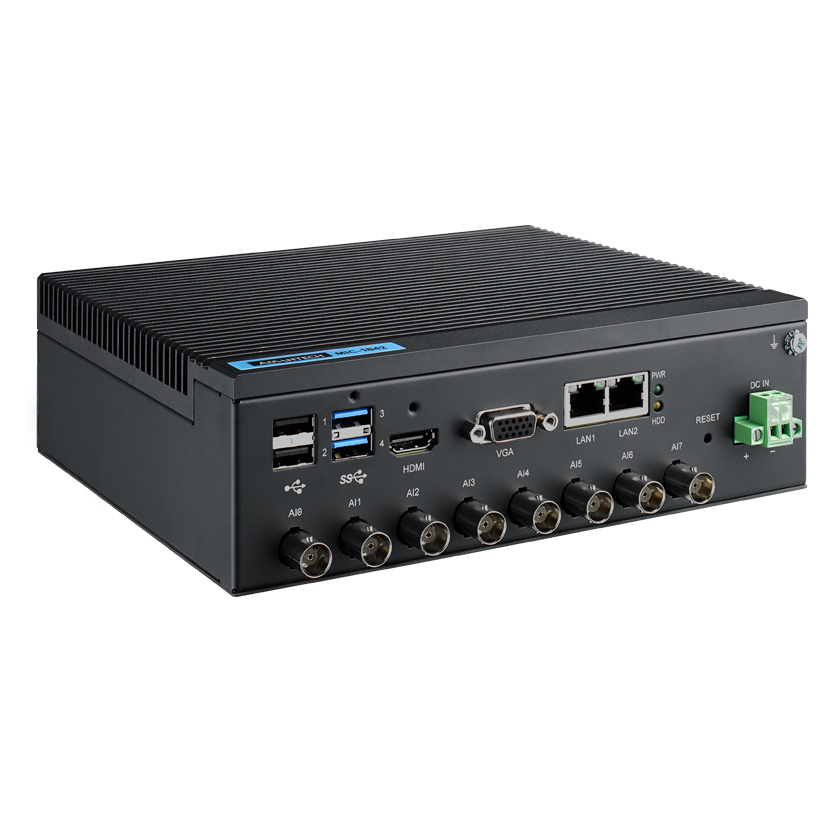

MIC-1842
12-Bit, 20MS/s, 8/4-ch AI Platform with Intel® Core™ i5/Celeron® Processor

  • 8 x Simultaneously Analog Inputs, up to 20 MS/s, 12-bit resolution
  • Supports digital and analog triggers
  • 32-ch TTL digital I/O
  • Onboard FIFO memory (16 K samples)
  • 2 x RS-232 ports
  • 2 x 10/100/1000 Base-T RJ-45 LAN ports
  • 2 x USB 2.0 and 2 x USB 3.0 ports
  • iDoor expansion supported
MIC-1842 is a high performance DAQ platform featuring an integrated DAQ module and signal conditioning to provide high speed analog input, TTL digital I/O, and triggering functions.

Especificação do Produto Download de Especificação

Analog Input
  • Channels
  • Input Range
  • Resolution(Bits)
  • Sampling Rates(S/s)
Digital Input
  • Channels
General
  • Programming Language
Hardware
  • Certification
Power Requirements
  • Input Voltage

Analog Input

  • Channels

    MIC-1842-U4A1E 8
  • Input Range

    MIC-1842-U4A1E ±0.5 V, ±1 V, ±2.5 V, ±5 V
  • Resolution(Bits)

    MIC-1842-U4A1E 12-bit
  • Sampling Rates(S/s)

    MIC-1842-U4A1E 20 MS/s (per channel)

Digital Input

  • Channels

    MIC-1842-U4A1E 32 (Isolated)

General

  • Programming Language

    MIC-1842-U4A1E C#, C++, LabVIEW, VB.Net, BCB, MFC, VB6, Delphi, Java, Matlab, Qt

Hardware

  • Certification

    MIC-1842-U4A1E CB, UL, CE, FCC Class A, CCC, BSMI

Power Requirements

  • Input Voltage

    MIC-1842-U4A1E 10~30 VDC
