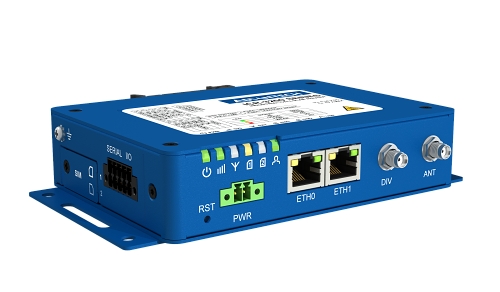

ICR-3232
ICR-3200, AUS/NZ, 2x Ethernet, 1x RS232, 1x RS485, Metal, Without Accessories

Entre em contato conosco
Voltar
Todas as Imagens
  • 4G LTE Cat.4 VPN Gateway for Industrial IoT applications
  • LTE B1, B2, B3, B4, B5, B7, B8, B28, B40
  • Powerful CPU with 1.3 GB storage to host customer SW applications
  • 2× SIM with cover, eSIM ready
  • 2× Ethernet 10/100, 1x RS232, 1x RS485 and I/O
  • Robust metal cover with DIN and Wall mount options
  • Operational temperature range from -40 °C to +75 °C
  • Backup real time clock
  • Sleep mode & Power ignition
  • Advanced networking, Diagnostics, VPN support, Firewall
Ficha Técnica (PDF)
Documents & Downloads
The ICR-3232 LTE gateway is the perfect way to connect IP or serial devices to a cellular network. Industrial M2M and IoT applications include kiosks, industrial PCs, HMIs, traffic controllers, meters, UPS systems, and much more.

Especificação do Produto Download de Especificação

  • Part Number
  • Detalhes
Region
  • AUS/NZ/BRA
Interface
  • ETH Port(s)
  • RS232
  • I/O
Antenna Connectors
  • Cellular Antennas
Power
  • Power Input (DC)
  • Sleep Mode
Environment
  • Temperature (Operating Range)
  • Humidity (Operating Range)
Mechanism
  • Dimensions (W x H x D)
  • Enclosure (Metal)
  • Mounting (DIN-rail)
  • Mounting (Wall)
Software
  • Advances Software Tool

Region

  • AUS/NZ/BRA

    ICR-3232 Yes
    ICR-3232W Yes

Interface

  • ETH Port(s)

    ICR-3232 2
    ICR-3232W 2

  • RS232

    ICR-3232 1
    ICR-3232W 1

  • I/O

    ICR-3232 1 x DI + 1 x DO
    ICR-3232W 1 x DI + 1 x DO

Antenna Connectors

  • Cellular Antennas

    ICR-3232 2 x SMA
    ICR-3232W 2 x SMA

Power

  • Power Input (DC)

    ICR-3232 9 ~ 48 VDC
    ICR-3232W 9 ~ 48 VDC

  • Sleep Mode

    ICR-3232 Yes
    ICR-3232W Yes

Environment

  • Temperature (Operating Range)

    ICR-3232 -40 ~ 75°C (-40 ~ 167°F)
    ICR-3232W -40 ~ 75°C (-40 ~ 167°F)

  • Humidity (Operating Range)

    ICR-3232 0~95%
    ICR-3232W 0~95%

Mechanism

  • Dimensions (W x H x D)

    ICR-3232 129 x 31 x 94 mm
    ICR-3232W 129 x 31 x 94 mm

  • Enclosure (Metal)

    ICR-3232 Metal
    ICR-3232W Metal

  • Mounting (DIN-rail)

    ICR-3232 Yes
    ICR-3232W Yes

  • Mounting (Wall)

    ICR-3232 Yes
    ICR-3232W Yes

Software

  • Advances Software Tool

    ICR-3232 WA/DMP, WA/VPN
    ICR-3232W WA/DMP, WA/VPN
