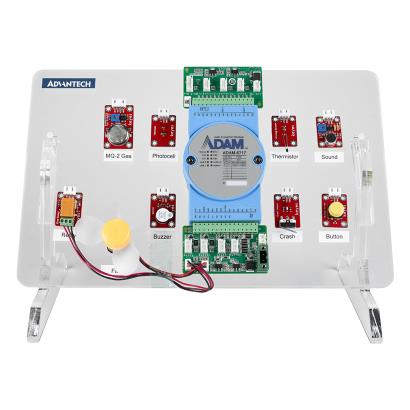

ADAM-6717SK
Starter Kit- An integrated sensor-to-cloud solution with 9 sensors, providing a simple way to build IoT condition monitoring for remote facilities.

  • All-in-one I/O gateway connecting OT and IT
  • 9 built-in sensors and actuators for diverse facility condition monitoring
  • Low-code software ready with Node-RED graphic programming
  • For the detailed specifications, please refer to the datasheet (PDF)
ADAM-6717SK starter kit is an integrated IoT solution from sensor to cloud with I/O gateway, Node-RED software, 9 sensors, and ready-to-use examples. It can be easily set up within 10 minutes to initiate remote facility monitoring, saving cost and space, and reducing deployment time and efforts.

Especificação do Produto Download de Especificação

Analog Input
  • Channels
  • Input Range
  • lnput Type
  • Resolution(Bits)
  • Sampling Rates(S/s)
Environment
  • Isolation Voltage
  • Operating Temperature
Ethernet
  • No. of Ports
  • Speed
General
  • Connectors
  • Programming Language
Hardware
  • I/O
  • OS Support
  • Storage
Isolated Digital Input
  • Channels
  • Input Voltage
Isolated Digital Output
  • Channels
  • Output Type
  • Output Voltage
  • Sink Current
Power Requirements
  • Input Voltage

Analog Input

  • Channels

    ADAM-6717SK-A 8
  • Input Range

    ADAM-6717SK-A ±0.15 V ±0.5 V, ±1 V, ±5 V, ±10 V, ±20 mA, 0~20 mA, 4~20 mA, 0~0.15V, 0~0.5 V, 0~1 V, 0~5 V, 0~10 V
  • lnput Type

    ADAM-6717SK-A V, mV, mA
  • Resolution(Bits)

    ADAM-6717SK-A 16-bit
  • Sampling Rates(S/s)

    ADAM-6717SK-A 100 S/s (sum)

Environment

  • Isolation Voltage

    ADAM-6717SK-A 2,500 VDC
  • Operating Temperature

    ADAM-6717SK-A -40~70 °C (-40~158 °F)

Ethernet

  • No. of Ports

    ADAM-6717SK-A 2
  • Speed

    ADAM-6717SK-A 10/100 Mbps

General

  • Connectors

    ADAM-6717SK-A 1 x 9-pin plug-in screw terminal, 2 x 15-pin plug-in screw terminal
  • Programming Language

    ADAM-6717SK-A Node-RED, Liunx C

Hardware

  • I/O

    ADAM-6717SK-A 2 x RS-485, 1 x Micro USB, 1 x USB 2.0
  • OS Support

    ADAM-6717SK-A Linux
  • Storage

    ADAM-6717SK-A 1 x micro SD Slot

Isolated Digital Input

  • Channels

    ADAM-6717SK-A 5
  • Input Voltage

    ADAM-6717SK-A Dry Contact
    Logic level 1: close to GND
    Logic level 0: open
    Wet Contact
    Logic level 1: 10~30 VDC
    Logic level 0: 0~3 VDC

Isolated Digital Output

  • Channels

    ADAM-6717SK-A 4
  • Output Type

    ADAM-6717SK-A Sink
  • Output Voltage

    ADAM-6717SK-A 0~30 VDC
  • Sink Current

    ADAM-6717SK-A 100 mA max./channel

Power Requirements

  • Input Voltage

    ADAM-6717SK-A 10~30 VDC
