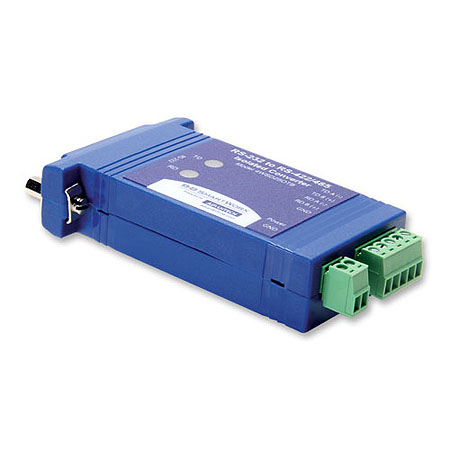

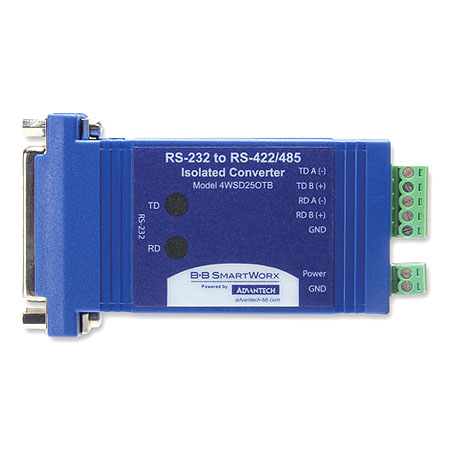

BB-4WSD25OTB
Isolated In-line Serial Converter, DB25F/Terminal Blocks

Contact Us
Back
All Images
  • RS-232 to RS-422 or RS-485 (2 or 4 wire) serial conversion
  • 2,000V, two-way optical isolation (input/output)
  • Data rate: 115.2 kbps
  • Quick, inline installation
  • Removable terminal blocks for RS-422/485
  • Automatic Send Data Control - no software drivers necessary
  • 10 to 48 VDC external power required (not included, sold separately)
Datasheet (PDF)
Documents & Downloads
Model 4WSD25OTB converts RS-232 to RS-422 or RS-485 (2 or 4-wire). 2,000 Volts two-way optical isolation protects devices from power surges, spikes and ground loops in harsh electrical environments. This in-line converter supports distances up to 1,200 m (4000 ft.) and data rates up to 115.2 kbps. Switchable modes support 2-wire RS-485, 4-wire RS-485, and full-duplex RS-422. DB9 female RS-232 input. Removable terminal blocks for RS-422/485 and external power make wiring easy. Accepts external power from 10-48 VDC from an industrial power source or plug in power supply (not included, sold separately).

Product Specifications Download Spec

  • Part Number
  • Details
General
  • Technology
  • Mounting
  • Power
  • Temperature
  • Isolation

General

  • Technology

    BB-4WSD25OTB Serial

  • Mounting

    BB-4WSD25OTB Inline

  • Power

    BB-4WSD25OTB 10-48VDC

  • Temperature

    BB-4WSD25OTB 0 to 70C

  • Isolation

    BB-4WSD25OTB 2kV

Support

Datasheet (PDF) Documents & Downloads

Need more info? Talk to our Online Rep!

Inquiry Form

Accessories

BB-SMi6B-12-V-ST

AC-DC 6W Power Supply - stripped and tinned

BB-9PAMF6

Serial Cable, RS-232 DB9 M to DB9 F, 1.8 m / 6 ft

BB-9PAMM6

Serial Cable, RS-232 DB9 M to DB9 M, 1.8 m / 6 ft

BB-TBKT3

Replacement TB - 2-position, 3.5 mm, 8A, 300V (QTY 1)

BB-TBKT6

Replacement TB - 5-position, 3.5 mm, 8A, 300V (QTY 1)
