- Designed specifically for machine vision applications
- 4-ch lighting control output with trigger input
- Programmable delay time, PWM high/low time, and output lighting duration
- Up to 350 mA and 40 VDC digital output capability by external power
- 12-ch isolated digital input and 16-ch isolated digital output
- Software configurable digital filter for isolated digital input and trigger
- Software selectable sink (NPN)/source (PNP) type for isolated digital output
- 2,500 VDC isolation protection for all I/O signals

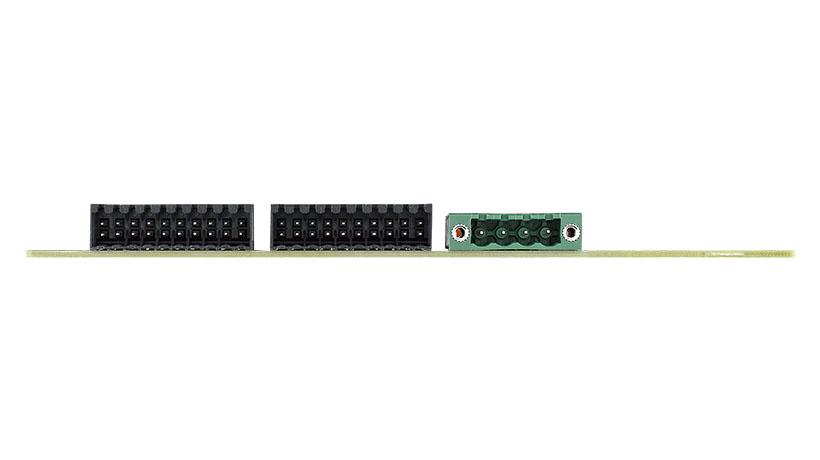

The AIIS-1882 is a 4-ch lighting control with 4-ch digital trigger, 12-ch isolated DI/16-ch isolated DO expansion module. The programmable delay time, PWM high/low time, and output lighting duration make it suitable for machine vision applications. All I/O signals are protected by isolation circuit.
.png)
Product Specifications Download Spec
- Part Number
- Details
-
AIIS-1882-AE
- Channels
- 4
- Channels
- Isolation Protection
- 16 (Isolated)
- 2,500 VDC
- Channels
- Isolation Protection
- 16 (Isolated)
- 2,500 VDC
- Programming Language
- C#, C++, LabVIEW, VB.Net, BCB, MFC, VB6, Delphi, Java, Matlab, Qt
Counter/Encoder Input
-
Channels
AIIS-1882-AE 4
Digital Input
-
Channels
AIIS-1882-AE 16 (Isolated) -
Isolation Protection
AIIS-1882-AE 2,500 VDC
Digital Output
-
Channels
AIIS-1882-AE 16 (Isolated) -
Isolation Protection
AIIS-1882-AE 2,500 VDC
General
-
Programming Language
AIIS-1882-AE C#, C++, LabVIEW, VB.Net, BCB, MFC, VB6, Delphi, Java, Matlab, Qt
