DS-085

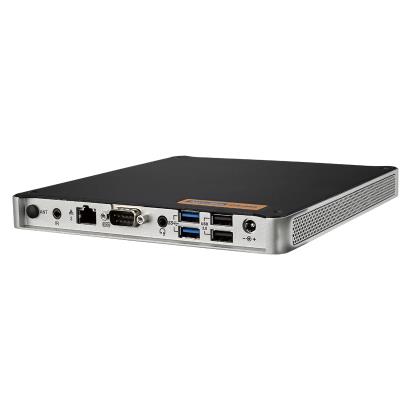

Intel Tiger Lake UP3 Ultra-slim Digital Signage Player

Preliminary
  • Power by Intel Tiger Lake UP3 processor
  • Powerful graphic engine - Intel iRIS Xe graphics
  • 19mm-thin chassis ideal for space-limited installation
  • 4 HDMI display output, resolution up to 4K(3840 x 2160)
  • Cable-less design for easy maintenance
  • Supports WISE-PaaS/DeviceOn and Embedded Software APIs
  • Supports WebAccess/SignageCMS for intuitive signage content managing, remote monitoring and control
  • Energy Star® certified for cutting edge energy efficiency & money saving
  • With Energy Star® certified, make the product more environmental friendly(www.energystar.gov/powermanagement )
Measuring at 19 mm thick, DS-085 is the world’s slimmest digital signage player powered by Intel Tiger Lake UP3 processors. This thin-and-powerful signage player is equipped with 4 x HDMI display which is capable to achieve 4K resolution, and delivers a premium visual experience.

Product Specifications (9) Download Spec

Processor
  • CPU
  • Chipset
  • BIOS
Memory
  • Technology
  • Max. Capacity
  • Socket
Thermal Solution
  • Thermal Solution
Display
  • Resolution
I/O Interface
  • USB2.0
  • USB3.0
I/O
  • Audio
  • HDMI
  • LAN
  • LED Indicators
  • PSW
  • Serial port
Watchdog Timer
  • Interval
  • Output
Physical Characteristics
  • Dimensions(W x D x H)
  • Weight
  • Mounting
Power
  • Input Voltage
Environment
  • Relative Humidity
  • Operational Temperature
Software Development Kit
  • Operating System
  • Linux
  • Signage Software
Certification
  • EMC
  • Safety Certifications
Storage
  • M.2
Power Requirement
  • Management
Operating System
  • Ubuntu

Processor

  • CPU

    DS-085SGB-U1A1E Intel Celeron 6305E
    DS-085SGB-U2A1E Intel Core i3-1115G4E
    DS-085SGB-U3A1E Intel Core i5-1145G7E
    DS-085SGB-U6A1E Intel Core i5-1135G7
    DS-085LGB-U1A1E Intel Core i7-1165G7
    DS-085LGB-U2A1E Intel Celeron 6305E
    DS-085LGB-U3A1E Intel Core i3-1115G4E
    DS-085LGB-U4A1E Intel Core i5-1145G7E
    DS-085LGB-U5A1E Intel Core i5-1135G7
  • Chipset

    DS-085SGB-U1A1E Integrated in SOC
    DS-085SGB-U2A1E Integrated in SOC
    DS-085SGB-U3A1E Integrated in SOC
    DS-085SGB-U6A1E Integrated in SOC
    DS-085LGB-U1A1E Integrated in SOC
    DS-085LGB-U2A1E Integrated in SOC
    DS-085LGB-U3A1E Integrated in SOC
    DS-085LGB-U4A1E Integrated in SOC
    DS-085LGB-U5A1E Integrated in SOC
  • BIOS

    DS-085SGB-U1A1E AMI UEFI 128 Mbit
    DS-085SGB-U2A1E AMI UEFI 128 Mbit
    DS-085SGB-U3A1E AMI UEFI 128 Mbit
    DS-085SGB-U6A1E AMI UEFI 128 Mbit
    DS-085LGB-U1A1E AMI UEFI 128 Mbit
    DS-085LGB-U2A1E AMI UEFI 128 Mbit
    DS-085LGB-U3A1E AMI UEFI 128 Mbit
    DS-085LGB-U4A1E AMI UEFI 128 Mbit
    DS-085LGB-U5A1E AMI UEFI 128 Mbit

Memory

  • Technology

    DS-085SGB-U1A1E DDR4 2666MHz
    DS-085SGB-U2A1E DDR4 2666MHz
    DS-085SGB-U3A1E DDR4 2666MHz
    DS-085SGB-U6A1E DDR4 2666MHz
    DS-085LGB-U1A1E DDR4 2666MHz
    DS-085LGB-U2A1E DDR4 2666MHz
    DS-085LGB-U3A1E DDR4 2666MHz
    DS-085LGB-U4A1E DDR4 2666MHz
    DS-085LGB-U5A1E DDR4 2666MHz
  • Max. Capacity

    DS-085SGB-U1A1E 32GB (16GB per SODIMM)
    DS-085SGB-U2A1E 32GB (16GB per SODIMM)
    DS-085SGB-U3A1E 32GB (16GB per SODIMM)
    DS-085SGB-U6A1E 32GB (16GB per SODIMM)
    DS-085LGB-U1A1E 32GB (16GB per SODIMM)
    DS-085LGB-U2A1E 32GB (16GB per SODIMM)
    DS-085LGB-U3A1E 32GB (16GB per SODIMM)
    DS-085LGB-U4A1E 32GB (16GB per SODIMM)
    DS-085LGB-U5A1E 32GB (16GB per SODIMM)
  • Socket

    DS-085SGB-U1A1E 2 x 260-pin SO-DIMM
    DS-085SGB-U2A1E 2 x 260-pin SO-DIMM
    DS-085SGB-U3A1E 2 x 260-pin SO-DIMM
    DS-085SGB-U6A1E 2 x 260-pin SO-DIMM
    DS-085LGB-U1A1E 2 x 260-pin SO-DIMM
    DS-085LGB-U2A1E 2 x 260-pin SO-DIMM
    DS-085LGB-U3A1E 2 x 260-pin SO-DIMM
    DS-085LGB-U4A1E 2 x 260-pin SO-DIMM
    DS-085LGB-U5A1E 2 x 260-pin SO-DIMM

Thermal Solution

  • Thermal Solution

    DS-085SGB-U1A1E FANLESS
    DS-085SGB-U2A1E FANLESS
    DS-085SGB-U3A1E FANLESS
    DS-085SGB-U6A1E FANLESS
    DS-085LGB-U1A1E FANLESS
    DS-085LGB-U2A1E FANLESS
    DS-085LGB-U3A1E FANLESS
    DS-085LGB-U4A1E FANLESS
    DS-085LGB-U5A1E FANLESS

Display

  • Resolution

    DS-085SGB-U1A1E 3840 x 2160
    DS-085SGB-U2A1E 3840 x 2160
    DS-085SGB-U3A1E 3840 x 2160
    DS-085SGB-U6A1E 3840 x 2160
    DS-085LGB-U1A1E 3840 x 2160
    DS-085LGB-U2A1E 3840 x 2160
    DS-085LGB-U3A1E 3840 x 2160
    DS-085LGB-U4A1E 3840 x 2160
    DS-085LGB-U5A1E 3840 x 2160

I/O Interface

  • USB2.0

    DS-085SGB-U1A1E 2
    DS-085SGB-U2A1E 2
    DS-085SGB-U3A1E 2
    DS-085SGB-U6A1E 2
    DS-085LGB-U1A1E 2
    DS-085LGB-U2A1E 2
    DS-085LGB-U3A1E 2
    DS-085LGB-U4A1E 2
    DS-085LGB-U5A1E 2
  • USB3.0

    DS-085SGB-U1A1E 2
    DS-085SGB-U2A1E 2
    DS-085SGB-U3A1E 2
    DS-085SGB-U6A1E 2
    DS-085LGB-U1A1E 2
    DS-085LGB-U2A1E 2
    DS-085LGB-U3A1E 2
    DS-085LGB-U4A1E 2
    DS-085LGB-U5A1E 2

I/O

  • Audio

    DS-085SGB-U1A1E 1(SPDIF/ Line-out/ Mic-in), support Jack Sense
    DS-085SGB-U2A1E 1(SPDIF/ Line-out/ Mic-in), support Jack Sense
    DS-085SGB-U3A1E 1(SPDIF/ Line-out/ Mic-in), support Jack Sense
    DS-085SGB-U6A1E 1(SPDIF/ Line-out/ Mic-in), support Jack Sense
    DS-085LGB-U1A1E 1(SPDIF/ Line-out/ Mic-in), support Jack Sense
    DS-085LGB-U2A1E 1(SPDIF/ Line-out/ Mic-in), support Jack Sense
    DS-085LGB-U3A1E 1(SPDIF/ Line-out/ Mic-in), support Jack Sense
    DS-085LGB-U4A1E 1(SPDIF/ Line-out/ Mic-in), support Jack Sense
    DS-085LGB-U5A1E 1(SPDIF/ Line-out/ Mic-in), support Jack Sense
  • HDMI

    DS-085SGB-U1A1E 4
    DS-085SGB-U2A1E 4
    DS-085SGB-U3A1E 4
    DS-085SGB-U6A1E 4
    DS-085LGB-U1A1E 4
    DS-085LGB-U2A1E 4
    DS-085LGB-U3A1E 4
    DS-085LGB-U4A1E 4
    DS-085LGB-U5A1E 4
  • LAN

    DS-085SGB-U1A1E 2 (RJ-45)
    DS-085SGB-U2A1E 2 (RJ-45)
    DS-085SGB-U3A1E 2 (RJ-45)
    DS-085SGB-U6A1E 2 (RJ-45)
    DS-085LGB-U1A1E 2 (RJ-45)
    DS-085LGB-U2A1E 2 (RJ-45)
    DS-085LGB-U3A1E 2 (RJ-45)
    DS-085LGB-U4A1E 2 (RJ-45)
    DS-085LGB-U5A1E 2 (RJ-45)
  • LED Indicators

    DS-085SGB-U1A1E 1 x Power, 1 x HDD Access
    DS-085SGB-U2A1E 1 x Power, 1 x HDD Access
    DS-085SGB-U3A1E 1 x Power, 1 x HDD Access
    DS-085SGB-U6A1E 1 x Power, 1 x HDD Access
    DS-085LGB-U1A1E 1 x Power, 1 x HDD Access
    DS-085LGB-U2A1E 1 x Power, 1 x HDD Access
    DS-085LGB-U3A1E 1 x Power, 1 x HDD Access
    DS-085LGB-U4A1E 1 x Power, 1 x HDD Access
    DS-085LGB-U5A1E 1 x Power, 1 x HDD Access
  • PSW

    DS-085SGB-U1A1E 1 x Power on/off button
    DS-085SGB-U2A1E 1 x Power on/off button
    DS-085SGB-U3A1E 1 x Power on/off button
    DS-085SGB-U6A1E 1 x Power on/off button
    DS-085LGB-U1A1E 1 x Power on/off button
    DS-085LGB-U2A1E 1 x Power on/off button
    DS-085LGB-U3A1E 1 x Power on/off button
    DS-085LGB-U4A1E 1 x Power on/off button
    DS-085LGB-U5A1E 1 x Power on/off button
  • Serial port

    DS-085SGB-U1A1E 1 x RS-232
    DS-085SGB-U2A1E 1 x RS-232
    DS-085SGB-U3A1E 1 x RS-232
    DS-085SGB-U6A1E 1 x RS-232
    DS-085LGB-U1A1E 2 x RS-232
    DS-085LGB-U2A1E 2 x RS-232
    DS-085LGB-U3A1E 2 x RS-232
    DS-085LGB-U4A1E 2 x RS-232
    DS-085LGB-U5A1E 2 x RS-232

Watchdog Timer

  • Interval

    DS-085SGB-U1A1E 255-level timer interval, setup by software
    DS-085SGB-U2A1E 255-level timer interval, setup by software
    DS-085SGB-U3A1E 255-level timer interval, setup by software
    DS-085SGB-U6A1E 255-level timer interval, setup by software
    DS-085LGB-U1A1E 255-level timer interval, setup by software
    DS-085LGB-U2A1E 255-level timer interval, setup by software
    DS-085LGB-U3A1E 255-level timer interval, setup by software
    DS-085LGB-U4A1E 255-level timer interval, setup by software
    DS-085LGB-U5A1E 255-level timer interval, setup by software
  • Output

    DS-085SGB-U1A1E Interrupt, system reset
    DS-085SGB-U2A1E Interrupt, system reset
    DS-085SGB-U3A1E Interrupt, system reset
    DS-085SGB-U6A1E Interrupt, system reset
    DS-085LGB-U1A1E Interrupt, system reset
    DS-085LGB-U2A1E Interrupt, system reset
    DS-085LGB-U3A1E Interrupt, system reset
    DS-085LGB-U4A1E Interrupt, system reset
    DS-085LGB-U5A1E Interrupt, system reset

Physical Characteristics

  • Dimensions(W x D x H)

    DS-085SGB-U1A1E 180 x 190 x 19 mm
    DS-085SGB-U2A1E 180 x 190 x 19 mm
    DS-085SGB-U3A1E 180 x 190 x 19 mm
    DS-085SGB-U6A1E 180 x 190 x 19 mm
    DS-085LGB-U1A1E 180 x 190 x 19 mm
    DS-085LGB-U2A1E 180 x 190 x 19 mm
    DS-085LGB-U3A1E 180 x 190 x 19 mm
    DS-085LGB-U4A1E 180 x 190 x 19 mm
    DS-085LGB-U5A1E 180 x 190 x 19 mm
  • Weight

    DS-085SGB-U1A1E 0.87 kg (1.92 lb)
    DS-085SGB-U2A1E 0.87 kg (1.92 lb)
    DS-085SGB-U3A1E 0.87 kg (1.92 lb)
    DS-085SGB-U6A1E 0.87 kg (1.92 lb)
    DS-085LGB-U1A1E 0.87 kg (1.92 lb)
    DS-085LGB-U2A1E 0.87 kg (1.92 lb)
    DS-085LGB-U3A1E 0.87 kg (1.92 lb)
    DS-085LGB-U4A1E 0.87 kg (1.92 lb)
    DS-085LGB-U5A1E 0.87 kg (1.92 lb)
  • Mounting

    DS-085SGB-U1A1E VESA/Desk/Wall/Din Rail
    DS-085SGB-U2A1E VESA/Desk/Wall/Din Rail
    DS-085SGB-U3A1E VESA/Desk/Wall/Din Rail
    DS-085SGB-U6A1E VESA/Desk/Wall/Din Rail
    DS-085LGB-U1A1E VESA/Desk/Wall/Din Rail
    DS-085LGB-U2A1E VESA/Desk/Wall/Din Rail
    DS-085LGB-U3A1E VESA/Desk/Wall/Din Rail
    DS-085LGB-U4A1E VESA/Desk/Wall/Din Rail
    DS-085LGB-U5A1E VESA/Desk/Wall/Din Rail

Power

  • Input Voltage

    DS-085SGB-U1A1E 19 V DC-in (ATX/AT mode)
    DS-085SGB-U2A1E 19 V DC-in (ATX/AT mode)
    DS-085SGB-U3A1E 19 V DC-in (ATX/AT mode)
    DS-085SGB-U6A1E 19 V DC-in (ATX/AT mode)
    DS-085LGB-U1A1E 19 V DC-in (ATX/AT mode)
    DS-085LGB-U2A1E 19 V DC-in (ATX/AT mode)
    DS-085LGB-U3A1E 19 V DC-in (ATX/AT mode)
    DS-085LGB-U4A1E 19 V DC-in (ATX/AT mode)
    DS-085LGB-U5A1E 19 V DC-in (ATX/AT mode)

Environment

  • Relative Humidity

    DS-085SGB-U1A1E 95% @ 40° C (non-condensing), Operating
    DS-085SGB-U2A1E 95% @ 40° C (non-condensing), Operating
    DS-085SGB-U3A1E 95% @ 40° C (non-condensing), Operating
    DS-085SGB-U6A1E 95% @ 40° C (non-condensing), Operating
    DS-085LGB-U1A1E 95% @ 40° C (non-condensing), Operating
    DS-085LGB-U2A1E 95% @ 40° C (non-condensing), Operating
    DS-085LGB-U3A1E 95% @ 40° C (non-condensing), Operating
    DS-085LGB-U4A1E 95% @ 40° C (non-condensing), Operating
    DS-085LGB-U5A1E 95% @ 40° C (non-condensing), Operating
  • Operational Temperature

    DS-085SGB-U1A1E 0 ~ 40° C (32 ~ 104° F), w/o system fan w/ 0.7m/s airflow, 40° C @ 95% RH Non-Condensing
    DS-085SGB-U2A1E 0 ~ 40° C (32 ~ 104° F), w/o system fan w/ 0.7m/s airflow, 40° C @ 95% RH Non-Condensing
    DS-085SGB-U3A1E 0 ~ 40° C (32 ~ 104° F), w/o system fan w/ 0.7m/s airflow, 40° C @ 95% RH Non-Condensing
    DS-085SGB-U6A1E 0 ~ 40° C (32 ~ 104° F), w/o system fan w/ 0.7m/s airflow, 40° C @ 95% RH Non-Condensing
    DS-085LGB-U1A1E 0 ~ 55° C
    DS-085LGB-U2A1E 0 ~ 55° C
    DS-085LGB-U3A1E 0 ~ 55° C
    DS-085LGB-U4A1E 0 ~ 55° C
    DS-085LGB-U5A1E 0 ~ 55° C

Software Development Kit

  • Operating System

    DS-085SGB-U1A1E Supports Win7 x64/x86, Win8.1 x64, Win10 x64
    DS-085SGB-U2A1E Supports Win7 x64/x86, Win8.1 x64, Win10 x64
    DS-085SGB-U3A1E Supports Win7 x64/x86, Win8.1 x64, Win10 x64
    DS-085SGB-U6A1E Supports Win7 x64/x86, Win8.1 x64, Win10 x64
    DS-085LGB-U1A1E Supports Win7 x64/x86, Win8.1 x64, Win10 x64
    DS-085LGB-U2A1E Supports Win7 x64/x86, Win8.1 x64, Win10 x64
    DS-085LGB-U3A1E Supports Win7 x64/x86, Win8.1 x64, Win10 x64
    DS-085LGB-U4A1E Supports Win7 x64/x86, Win8.1 x64, Win10 x64
    DS-085LGB-U5A1E Supports Win7 x64/x86, Win8.1 x64, Win10 x64
  • Linux

    DS-085SGB-U1A1E by Project support
    DS-085SGB-U2A1E by Project support
    DS-085SGB-U3A1E by Project support
    DS-085SGB-U6A1E by Project support
    DS-085LGB-U1A1E by Project support
    DS-085LGB-U2A1E by Project support
    DS-085LGB-U3A1E by Project support
    DS-085LGB-U4A1E by Project support
    DS-085LGB-U5A1E by Project support
  • Signage Software

    DS-085SGB-U1A1E WISE-PaaS/RMM & WebAccess/IMM
    DS-085SGB-U2A1E WISE-PaaS/RMM & WebAccess/IMM
    DS-085SGB-U3A1E WISE-PaaS/RMM & WebAccess/IMM
    DS-085SGB-U6A1E WISE-PaaS/RMM & WebAccess/IMM
    DS-085LGB-U1A1E WISE-PaaS/RMM & WebAccess/IMM
    DS-085LGB-U2A1E WISE-PaaS/RMM & WebAccess/IMM
    DS-085LGB-U3A1E WISE-PaaS/RMM & WebAccess/IMM
    DS-085LGB-U4A1E WISE-PaaS/RMM & WebAccess/IMM
    DS-085LGB-U5A1E WISE-PaaS/RMM & WebAccess/IMM

Certification

  • EMC

    DS-085SGB-U1A1E CE, FCC Class B, CCC, BSMI
    DS-085SGB-U2A1E CE, FCC Class B, CCC, BSMI
    DS-085SGB-U3A1E CE, FCC Class B, CCC, BSMI
    DS-085SGB-U6A1E CE, FCC Class B, CCC, BSMI
    DS-085LGB-U1A1E CE, FCC Class B, CCC, BSMI
    DS-085LGB-U2A1E CE, FCC Class B, CCC, BSMI
    DS-085LGB-U3A1E CE, FCC Class B, CCC, BSMI
    DS-085LGB-U4A1E CE, FCC Class B, CCC, BSMI
    DS-085LGB-U5A1E CE, FCC Class B, CCC, BSMI
  • Safety Certifications

    DS-085SGB-U1A1E UL, CB, CCC, BSMI
    DS-085SGB-U2A1E UL, CB, CCC, BSMI
    DS-085SGB-U3A1E UL, CB, CCC, BSMI
    DS-085SGB-U6A1E UL, CB, CCC, BSMI
    DS-085LGB-U1A1E UL, CB, CCC, BSMI
    DS-085LGB-U2A1E UL, CB, CCC, BSMI
    DS-085LGB-U3A1E UL, CB, CCC, BSMI
    DS-085LGB-U4A1E UL, CB, CCC, BSMI
    DS-085LGB-U5A1E UL, CB, CCC, BSMI

Storage

  • M.2

    DS-085SGB-U1A1E M.2 2242 M Key
    DS-085SGB-U2A1E M.2 2242 M Key
    DS-085SGB-U3A1E M.2 2242 M Key
    DS-085SGB-U6A1E M.2 2242 M Key
    DS-085LGB-U1A1E M.2 2242 M Key
    DS-085LGB-U2A1E M.2 2242 M Key
    DS-085LGB-U3A1E M.2 2242 M Key
    DS-085LGB-U4A1E M.2 2242 M Key
    DS-085LGB-U5A1E M.2 2242 M Key

Power Requirement

  • Management

    DS-085SGB-U1A1E ACPI 3.0
    DS-085SGB-U2A1E ACPI 3.0
    DS-085SGB-U3A1E ACPI 3.0
    DS-085SGB-U6A1E ACPI 3.0
    DS-085LGB-U1A1E ACPI 3.0
    DS-085LGB-U2A1E ACPI 3.0
    DS-085LGB-U3A1E ACPI 3.0
    DS-085LGB-U4A1E ACPI 3.0
    DS-085LGB-U5A1E ACPI 3.0

Operating System

  • Ubuntu

    DS-085SGB-U1A1E V
    DS-085SGB-U2A1E V
    DS-085SGB-U3A1E V
    DS-085SGB-U6A1E V
    DS-085LGB-U1A1E V
    DS-085LGB-U2A1E V
    DS-085LGB-U3A1E V
    DS-085LGB-U4A1E V
    DS-085LGB-U5A1E V

Need more info? Talk to our Online Rep!

Related Materials

Contact Advantech

Automation (Toll-Free)

00800-2426-8080

Embedded (Toll-Free)

00800-2426-8081

Contact Advantech
