EPC-T3000 Series

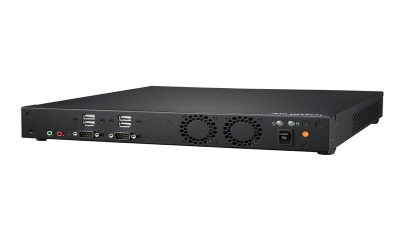

EPC-T3229

AMD V2748 1U Slim System with One PCIe Expansion Slot for AI-enhanced Edge Computing

  • 1U chassis with AMD platform
  • AMD V2748 with two 260-pin SO-DIMM up to 64GB DDR4 3200 SDRAM,
  • Supporting 1 PCIe x8, 1 E-Key 2230 M.2 slot, 1 M-Key 2280
  • One PCIe Full Height Expansion Slot
  • Rich I/O connectivity with additional USB, COM Ports and RF Antenna Holes Reserved

Support Links:

Datasheet Technical Downloads
  • AMD V2748 1U Slim System with One PCIe Expansion Slot for AI-enhanced Edge Computing

Specifications

Thermal Solution
Thermal Solution
  • 2x chassis fan (4cm/23.8CFM each)
Processor
CPU
  • AMD Ryzen™ Embedded V2748
BIOS
  • AMI EFI 128Mbit
Memory
Socket
  • 2 x 260-pin SO-DIMM
Technology
  • 2 x 32GB DDR4 3200MHz SDRAM
Max. Capacity
  • 32GB (up to 16GB per SO-DIMM)
Graphics
Chipset
  • Intel HD Graphics
Storage
mSATA
  • 1 (Full-size mini-PCIe)
2.5" Drive Bay
  • 2 x 2.5” SATA HDD Bay (Max Height 7mm)
Ethernet
Interface
  • 10/100/1000 Mbps
Controller
  • LAN1/ LAN2: Realtek RTL8111H
Connector
  • 2 (RJ-45)
Audio
Chipset
  • Realtek ALC888S, High Definition Audio (HD), Line-in, Line-out
Expansion
Mini PCIe
  • 1+1 (Full-size, Half-size); 1 (PCIe x4)
Front I/O Interface
Antenna
  • up to 2
Audio
  • 2 (Line-Out, Mic-In)
COM
  • 2 COM
USB
  • 2
Rear I/O
HDMI
  • 2
Rear I/O Interface
USB
  • 4
Audio
  • 2 (Line-out, Mic-In)
Antenna
  • up to 2
Ethernet
  • 2
Power Input
  • 1 DC Jack (12V) ; Optional Terminal Block (Optional Wide power DC 9~36V input)
Miscellaneous
LED Indicators
  • 2 (Power LED, HDD LED)
Control
  • 1 (Power switch); 1(Reset switch)
Power Requirement
Power Consumption
  • Base on motherboard
Voltage
  • 12V DC-in
Environment
Humidity
  • 10 ~ 85% @ 40° C, non-condensing
Non-Operational Temperature
  • -20 ~ 60° C (-4 ~ 140° F)
Operating Temperature
  • 0 ~ 45° C (32 ~ 113° F)(w/o Expansion Card module)
Vibration Resistance
  • 1 Grms (HDD x 1); 3 Grms (SSD x 1)
Weight (kg)
Weight (kg)
  • 3.68kg
Dimensions
Dimensions (W x H x D)
  • 330 x 44 x 270 mm
