BB-4WSD9OTB

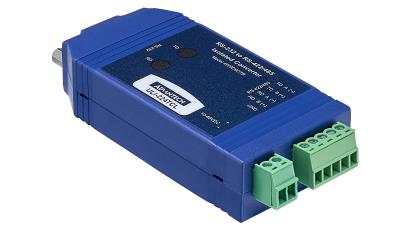

ULI-224TCL - RS-232 (DB9 Female) to Iso. RS-422/485 (Terminal Block) Converter

Contact Us
Back
All Images
  • RS-232 to RS-422 or RS-485 (2 or 4 wire) serial conversion
  • 2 KV two-way optical isolation
  • Data rate up to 115.2 kbps
  • Quick, inline installation
  • Removable terminal blocks for RS-422/485
  • 10 to 48 VDC external power required (not included, sold separately)
Datasheet (PDF)
Documents & Downloads
Model 4WSD9OTB converts RS-232 to RS-422 or RS-485 (2 or 4-wire). 2,000 Volts two-way optical isolation protects devices from power surges, spikes and ground loops in harsh electrical environments. This in-line converter supports distances up to 1,200 m (4000 ft.) and data rates up to 115.2 kbps. Switchable modes support 2-wire RS-485, 4-wire RS-485, and full-duplex RS-422. DB9 female RS-232 input. Removable terminal blocks for RS-422/485 and external power make wiring easy. Accepts external power from 10-48 VDC from an industrial power source or plug in power supply (not included, sold separately).

Product Specifications Download Spec

  • Part Number
  • Details
General
  • Technology
  • Mounting
  • Power
  • Temperature
  • Isolation
Serial Communication
  • Serial Converter
  • Serial Port Connector Type
  • Serial Port Number
  • Maximum Serial Transmission Speed
Environment
  • Temperature (Operating Range)
Protection
  • Isolation
Power
  • Power Input (DC)
Accessory General
  • Mounting

General

  • Technology

    BB-4WSD9OTB Serial

  • Mounting

    BB-4WSD9OTB Inline

  • Power

    BB-4WSD9OTB 10-48VDC

  • Temperature

    BB-4WSD9OTB 0 to 70C

  • Isolation

    BB-4WSD9OTB 2kV

Serial Communication

  • Serial Converter

    BB-4WSD9OTB RS-232 to RS-422/485

  • Serial Port Connector Type

    BB-4WSD9OTB 1 x DB9 Female, 1 x Terminal Block

  • Serial Port Number

    BB-4WSD9OTB 1

  • Maximum Serial Transmission Speed

    BB-4WSD9OTB 115.2 Kbps

Environment

  • Temperature (Operating Range)

    BB-4WSD9OTB 0 ~ 70°C (32 ~ 158°F)

Protection

  • Isolation

    BB-4WSD9OTB 2,000 VDC

Power

  • Power Input (DC)

    BB-4WSD9OTB 10 ~ 48 VDC

Accessory General

  • Mounting

    BB-4WSD9OTB Inline

Support

Datasheet (PDF) Download 3D Model Documents & Downloads

Need more info? Talk to our Online Rep!

Inquiry Form

Accessories

BB-SMi6B-12-V-ST

AC-DC 6W Power Supply - stripped and tinned

BB-9PAMF6

Serial Cable, RS-232 DB9 M to DB9 F, 1.8 m / 6 ft

BB-9PAMM6

Serial Cable, RS-232 DB9 M to DB9 M, 1.8 m / 6 ft

BB-TBKT3

Replacement TB - 2-position, 3.5 mm, 8A, 300V (QTY 1)

BB-TBKT6

Replacement TB - 5-position, 3.5 mm, 8A, 300V (QTY 1)
