POC-615
Point-of-Care Terminals / All-in-One computers with battery and camera modules for diverse healthcare applications

Contact Us
Back
New
All Images
  • 11th generation Intel® Core™ i5/i7 processor
  • 15.6" full HD display with multi-touch P-CAP control
  • Multiple I/O, including USB 3.2 Gen 2 (Type A), USB 3.2 Gen 2 (Type C) with display function, and HDMI
  • PCIe x4, mini PCIe, M.2 expansion slots for integrating add-on modules
  • Fanless design with IP43-rated protection for superior hygiene and infection control
  • Equipped with Advantech’s DeviceOn device management software
  • Optional Wi-Fi, Bluetooth, RFID, smart card reader, Li-ion battery pack, and auto-focus 5 megapixel camera
Datasheet (PDF)
Documents & Downloads
Featuring an 11th gen Intel® processor , POC-615 is a high-performance, ultra-thin terminal that enables improved operational effectiveness in hospitals, clinics, and care homes.

Product Specifications (4) Download Spec

  • Part Number
  • Details
System
  • Processor
  • Memory
  • Operating System (optional)
Storage
  • Primary Storage (default)
  • Secondary Storage (optional)
Display
  • Size
  • Resolution
Touchscreen
  • Type
I/O
  • USB 3.2 Gen 2 (Type A)
  • USB 3.2 Gen 2 (Type C)
  • HDMI
  • LAN isolation, 1.5KV
  • COM (RS232) 1.5KV
Authentication Solution
  • RFID Reader

System

  • Processor

    POC-615-12A111-CF Intel® Core™ i7-1185G7E (12M cache, up to 4.40 GHz)
    POC-615-12B111-CF Intel® Core™ i5-1145G7E (8M cache, up to 4.10 GHz)
    POC-615-12A111R-CF Intel® Core™ i7-1185G7E (12M cache, up to 4.40 GHz)
    POC-615-12B111R-CF Intel® Core™ i5-1145G7E (8M cache, up to 4.10 GHz)

  • Memory

    POC-615-12A111-CF 8GB DDR4
    POC-615-12B111-CF 8GB DDR4
    POC-615-12A111R-CF 8GB DDR4
    POC-615-12B111R-CF 8GB DDR4

  • Operating System (optional)

    POC-615-12A111-CF Windows 10 IoT Ent (64 bits only), Linux (supported upon request)
    POC-615-12B111-CF Windows 10 IoT Ent (64 bits only), Linux (supported upon request)
    POC-615-12A111R-CF Windows 10 IoT Ent (64 bits only), Linux (supported upon request)
    POC-615-12B111R-CF Windows 10 IoT Ent (64 bits only), Linux (supported upon request)

Storage

  • Primary Storage (default)

    POC-615-12A111-CF N/A
    POC-615-12B111-CF N/A
    POC-615-12A111R-CF N/A
    POC-615-12B111R-CF N/A

  • Secondary Storage (optional)

    POC-615-12A111-CF 2.5" SATA SSD available
    POC-615-12B111-CF 2.5" SATA SSD available
    POC-615-12A111R-CF 2.5" SATA SSD available
    POC-615-12B111R-CF 2.5" SATA SSD available

Display

  • Size

    POC-615-12A111-CF 15.6"
    POC-615-12B111-CF 15.6"
    POC-615-12A111R-CF 15.6"
    POC-615-12B111R-CF 15.6"

  • Resolution

    POC-615-12A111-CF 1920 x 1080
    POC-615-12B111-CF 1920 x 1080
    POC-615-12A111R-CF 1920 x 1080
    POC-615-12B111R-CF 1920 x 1080

Touchscreen

  • Type

    POC-615-12A111-CF 10-point multi touch P-CAP (clear glass)
    POC-615-12B111-CF 10-point multi touch P-CAP (clear glass)
    POC-615-12A111R-CF 10-point multi touch P-CAP (clear glass); optional AG/AR support upon request
    POC-615-12B111R-CF 10-point multi touch P-CAP (clear glass); optional AG/AR support upon request

I/O

  • USB 3.2 Gen 2 (Type A)

    POC-615-12A111-CF 4
    POC-615-12B111-CF 4
    POC-615-12A111R-CF 4
    POC-615-12B111R-CF 4

  • USB 3.2 Gen 2 (Type C)

    POC-615-12A111-CF 1 (with display function)
    POC-615-12B111-CF 1 (with display function)
    POC-615-12A111R-CF 1 (with display function)
    POC-615-12B111R-CF 1 (with display function)

  • HDMI

    POC-615-12A111-CF 1
    POC-615-12B111-CF 1
    POC-615-12A111R-CF 1
    POC-615-12B111R-CF 1

  • LAN isolation, 1.5KV

    POC-615-12A111-CF 2
    POC-615-12B111-CF 2
    POC-615-12A111R-CF 2
    POC-615-12B111R-CF 2

  • COM (RS232) 1.5KV

    POC-615-12A111-CF 1
    POC-615-12B111-CF 1
    POC-615-12A111R-CF 1
    POC-615-12B111R-CF 1

Authentication Solution

  • RFID Reader

    POC-615-12A111-CF N/A
    POC-615-12B111-CF N/A
    POC-615-12A111R-CF Optional (choose either RFID or smart card reader)
    POC-615-12B111R-CF Optional (choose either RFID or smart card reader)

Support

Datasheet (PDF) Documents & Downloads

Need more info? Talk to our Online Rep!

Inquiry Form

Accessories

ARES-5222A-ATW2000

ARES-5222A is a wall-mounted workstation compatible with 75mm x 75mm or 100mm x 100mm VESA patterns. It screens up to 32" and supports 2 to 10kg.

ARES-5221C-ORW2000

ARES-5221C is a wall-mounted workstation with keyboard tray that is compatible with 75 x 75mm or 100 x 100mm VESA patterns and screens up to 27".

ARES-5221O-OEW1000

ARES-5221O is a wall-mounted workstation with single arm and keyboard tray that is compatible with 75 x 75mm or 100 x 100mm VESA patterns.

ARES-5112D-W881200

ARES-5112D is a rail wall-mounted workstation with keyboard tray that is compatible with 75 x 75mm or 100 x 100mm VESA patterns.

ARES-5221B-ORW1000

ARES-5221B is a single arm wall-mounted workstation with keyboard tray. It is compatible with 75 x 75/ 100 x 100mm VESA patterns and screens up to 27"

ARES-2423R-A741L00

ARES-2423R is a height adjusting desk stand compatib with 75x75 / 100x100 mm VESA patterns. It can tilt -5° (down) ~ +25° (up) and screens up to 27"

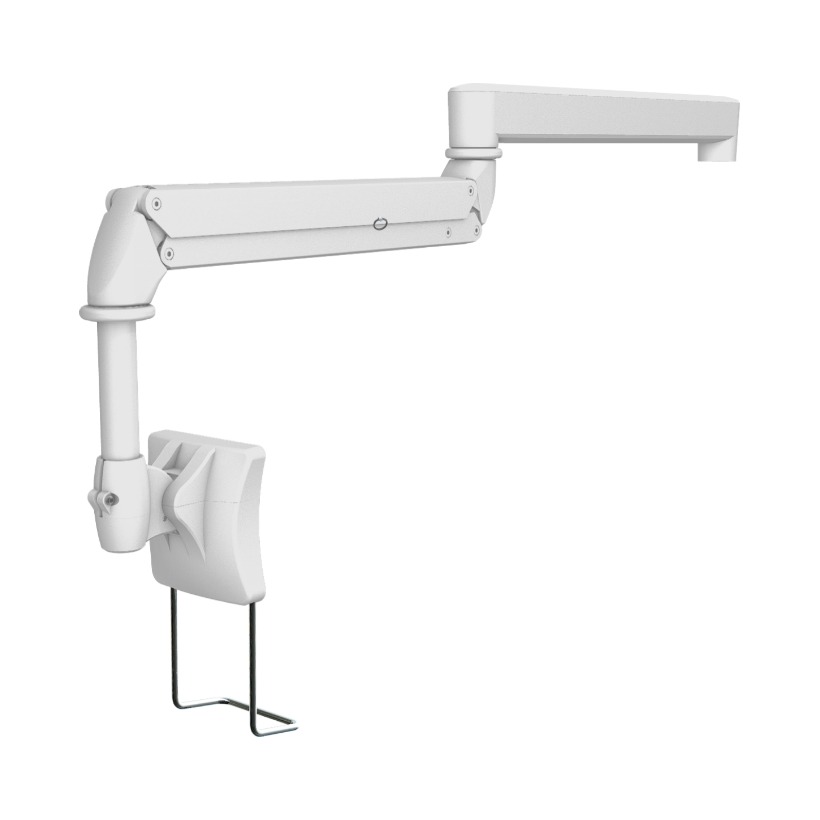

ARES-7621C-LB20000

Bundled with ARES-7600C, ARES-7621C provides a medical-grade ceiling long reach arm that can be used with bedside PIT (with a load of 1~6.5 kg).

ARES-7600C-AR00100

Bundled with ARES-7621C, ARES-7600C provides a medical grade ceiling long reach arm with VESA standard holes that can be used with bedside PIT.

ARES-7221A-LW22000

ARES-7221A is a medical grade wall-mounted arm with VESA standard holes that can be moved vertically.

ARES-7321I-LW20000

ARES-7321I is a medical grade wall-mounted arm with VESA standard holes that can be moved horizontally.
