- Converts serial data signals to single-mode fiber optic
- 2 KV 3-way optical isolation (two data ports, power circuit) and EMI/RFI protection
- Data rates up to 115.2 kbps
- Wide operating temperature: -40 to +80 °C
- IP30 plastic case, DIN mount
- UL 508 rated
- 10 – 48 VDC input power range
- Up to 15 km (9 mi) range
- Power supply not included, sold separately

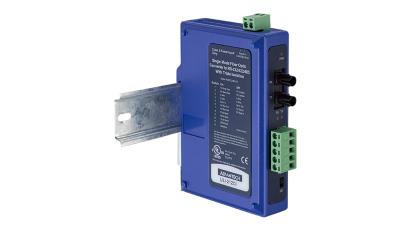

Model FOSTCDRi-ST is designed with functionality required for heavier industrial environments. This industrial-grade isolated converter changes RS-232, RS-422, or RS-485 to single-mode fiber optics.
Model FOSTCDRi-ST extends serial data ranges up to 15 km (9 mi) and provides the most versatile connection possible between asynchronous full- or half-duplex serial equipment. In addition to direct point-to-point connectivity, it is capable operating in a multi-drop mode. This allows one serial device to communicate with up to 31 others around a fiber optic ring. Since it supports mixed serial standards, it can replace other converters and isolators and add the EMI/RFI immunity inherent to fiber optic communications. Fiber optic connection is single-mode ST.
Automatic Send Data Control circuit controls the RS-422/485 driver chip, eliminating the requirement for special software. Easy to install and configure, it has a 12-position DIP switch to set up the RS-422/485 parameters and removable terminal blocks to connect serial signals and power. In RS-232 mode, it supports Transmit Data and Receive Data. Handshaking signals are not passed through.
Product Specifications Download Spec
- Part Number
- Details
-
BB-FOSTCDRI-ST
- Technology
- Mounting
- Power
- Temperature
- Serial Type
- Serial Connector
- Fiber Type
- Serial
- DIN
- 10-48VDC
- -40 to 80C
- RS-232/422/485
- Terminal Block
- Single-mode
- Serial Standard
- Serial Port Connector Type
- Serial Port Number
- Maximum Serial Transmission Speed
- RS-232 / RS-422 / RS-485
- Terminal block
- 1
- 115.2 Kbps
- Optical Mode
- Max. Distance
- Optical Connector
- Optical Wavelength
- Optical Port Number
- Single-mode
- 15 km
- ST
- 1310 nm
- 1
- Temperature (Operating Range)
- -40 ~ 80°C (-40 ~ 176°F)
- Isolation
- Surge Protection
- 2,000 VDC
- 600W
- Power Input (DC)
- 10 ~ 48 VDC
- Mounting
- DIN
General
-
Technology
BB-FOSTCDRI-ST Serial -
Mounting
BB-FOSTCDRI-ST DIN -
Power
BB-FOSTCDRI-ST 10-48VDC -
Temperature
BB-FOSTCDRI-ST -40 to 80C -
Serial Type
BB-FOSTCDRI-ST RS-232/422/485 -
Serial Connector
BB-FOSTCDRI-ST Terminal Block -
Fiber Type
BB-FOSTCDRI-ST Single-mode
Serial Communication
-
Serial Standard
BB-FOSTCDRI-ST RS-232 / RS-422 / RS-485 -
Serial Port Connector Type
BB-FOSTCDRI-ST Terminal block -
Serial Port Number
BB-FOSTCDRI-ST 1 -
Maximum Serial Transmission Speed
BB-FOSTCDRI-ST 115.2 Kbps
Fiber General
-
Optical Mode
BB-FOSTCDRI-ST Single-mode -
Max. Distance
BB-FOSTCDRI-ST 15 km -
Optical Connector
BB-FOSTCDRI-ST ST -
Optical Wavelength
BB-FOSTCDRI-ST 1310 nm -
Optical Port Number
BB-FOSTCDRI-ST 1
Environment
-
Temperature (Operating Range)
BB-FOSTCDRI-ST -40 ~ 80°C (-40 ~ 176°F)
Protection
-
Isolation
BB-FOSTCDRI-ST 2,000 VDC -
Surge Protection
BB-FOSTCDRI-ST 600W
Power
-
Power Input (DC)
BB-FOSTCDRI-ST 10 ~ 48 VDC
Accessory General
-
Mounting
BB-FOSTCDRI-ST DIN
