BB-232OPDRI

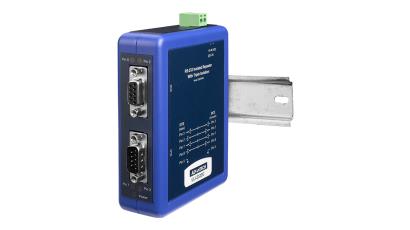

ULI-232DC - 3-Way Isolated RS-232 (DB9 Male / Female) DIN Rail Repeater

  • Extend and isolate RS-232 data another 15.2 m
  • 2kV 3-way optical isolation
  • Data rates up to 115.2 kbps
  • -40 to +80 °C wide operating temperature
  • DB9 M / DB9 F, IP30, DIN rail mount
  • 10-48 Vdc power input (power supply required, not included, sold separately)
BB-232OPDRI premium industrial RS-232 repeater with 2kV optical isolation on both data ports protects equipment and data from ground loops and surges, plus isolation on power supply circuits for a third degree of protection. Data connected via DB9F/DCE and DB9M/DTE. TB power.

제품특징 제품 사양 다운로드

  • Part Number
  • 제품 상세
General
  • Technology
  • Mounting
  • Power
  • Temperature
  • Isolation
  • Power and Data Isolated
  • Serial Type
Serial Communication
  • Serial Standard
  • Maximum Serial Transmission Speed
  • Serial Port Connector Type
  • Serial Port Number
  • Repeater Maximum Distance
Environment
  • Temperature (Operating Range)
Protection
  • ESD Protection
  • Isolation
Certification
  • Safety
Power
  • Power Input (DC)
Accessory General
  • Mounting
Mechanism
  • Enclosure (Metal)

General

  • Technology

    BB-232OPDRI Serial
  • Mounting

    BB-232OPDRI DIN
  • Power

    BB-232OPDRI 10-48VDC
  • Temperature

    BB-232OPDRI -40 to 80C
  • Isolation

    BB-232OPDRI 2kV
  • Power and Data Isolated

    BB-232OPDRI Yes
  • Serial Type

    BB-232OPDRI RS-232

Serial Communication

  • Serial Standard

    BB-232OPDRI RS-232
  • Maximum Serial Transmission Speed

    BB-232OPDRI 115.2 Kbps
  • Serial Port Connector Type

    BB-232OPDRI DB9
  • Serial Port Number

    BB-232OPDRI 1
  • Repeater Maximum Distance

    BB-232OPDRI 15 Meters

Environment

  • Temperature (Operating Range)

    BB-232OPDRI -40 ~ 80°C (-40 ~ 176°F)

Protection

  • ESD Protection

    BB-232OPDRI 8 kV (Air)
  • Isolation

    BB-232OPDRI 2,000 VDC

Certification

  • Safety

    BB-232OPDRI UL C1/D2 (Class I, Division 2)

Power

  • Power Input (DC)

    BB-232OPDRI 10 ~ 48 VDC

Accessory General

  • Mounting

    BB-232OPDRI DIN

Mechanism

  • Enclosure (Metal)

    BB-232OPDRI Metal
