- Full range AC input 100-240V
- Common safety for CB / UL / FCC / CE / TUV / CCC
- Support OPP, OVP, OCP and SCP circuit protection
Product Specifications
- Part Number
- Details
-

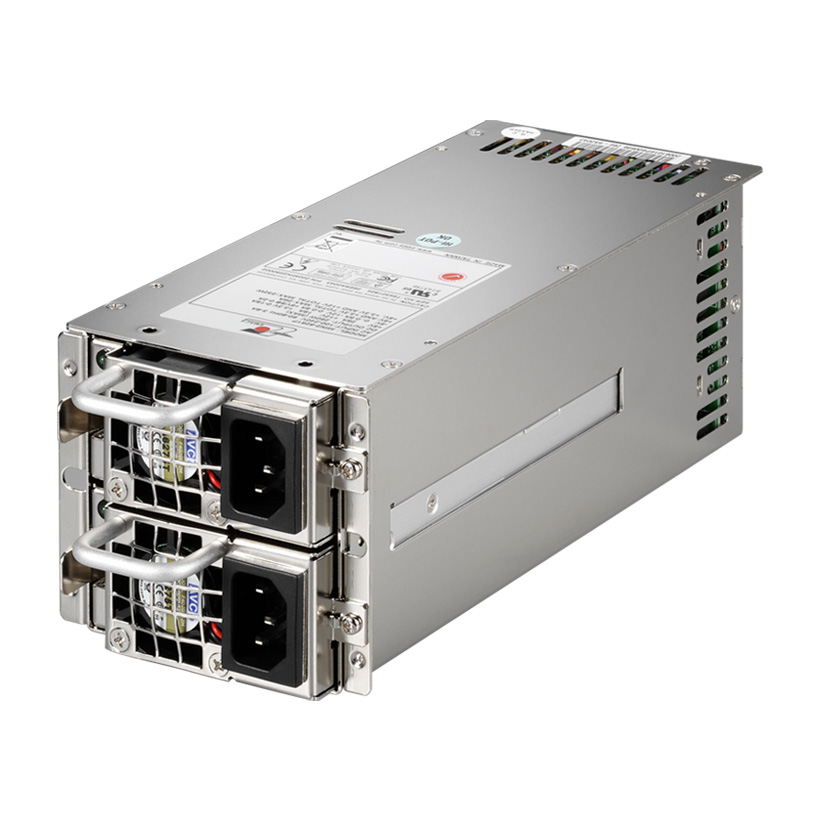

96PSR-A250W2U
- Form Factor
- Output Power
- Input Power
- Input Current (maximum)
- Input Voltage
- Input Frequency
- Efficiency
- Operating Temperature
- Storage Temperature
- Storage Humidity
- Output Rating
- MTBF (hours @ 25°C)
- Dimensions (D x W x H)
- Safety
- Manufacturer
- 2U
- 250W
- AC to DC
- 100V @6A
- 100 ~ 240V
- 47 ~ 63 Hz
- 65%
- 0 ~ 50°C
- -20 ~ 80°C
- 5 ~ 90% RH
- +3.3V @15A;+5V @ 25A;+12V @ 16A;-12V @ 0.5A;-5V @ 0.3A;+5Vsb @ 2A
- 100K
- 230 x 85 x 82 mm
- CB / UL / FCC / CE / TUV / CCC
- Zippy
Power Supply
-
Form Factor
96PSR-A250W2U 2U -
Output Power
96PSR-A250W2U 250W -
Input Power
96PSR-A250W2U AC to DC -
Input Current (maximum)
96PSR-A250W2U 100V @6A -
Input Voltage
96PSR-A250W2U 100 ~ 240V -
Input Frequency
96PSR-A250W2U 47 ~ 63 Hz -
Efficiency
96PSR-A250W2U 65% -
Operating Temperature
96PSR-A250W2U 0 ~ 50°C -
Storage Temperature
96PSR-A250W2U -20 ~ 80°C -
Storage Humidity
96PSR-A250W2U 5 ~ 90% RH -
Output Rating
96PSR-A250W2U +3.3V @15A;+5V @ 25A;+12V @ 16A;-12V @ 0.5A;-5V @ 0.3A;+5Vsb @ 2A -
MTBF (hours @ 25°C)
96PSR-A250W2U 100K -
Dimensions (D x W x H)
96PSR-A250W2U 230 x 85 x 82 mm -
Safety
96PSR-A250W2U CB / UL / FCC / CE / TUV / CCC -
Manufacturer
96PSR-A250W2U Zippy
