-25/96PSR-D500WMIN20200506150411.jpg)

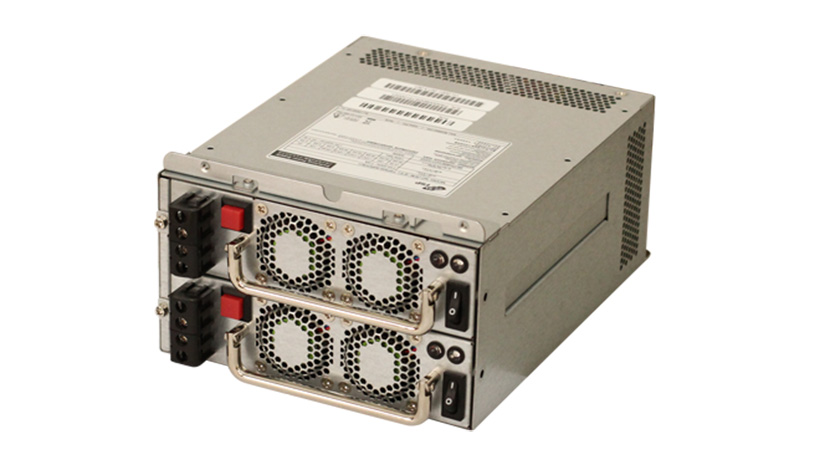

/96PSR-D500WMIN20200506154226.jpg)
- Supports DC 110V/220V power source application with safety certification
- High efficiency 80plus bronze label
- With Japanese capacitors for longer product
- Supports wide range working temperature, full load under 50°C
- 3 years worldwide warranty
- Product certified by safeties and compatible test with systems
Product Specifications Download Spec
- Part Number
- Details
-
96PSR-D500WMIN
- Form Factor
- Output Power
- Input Power
- Input Current (maximum)
- Input Voltage
- Input Frequency
- Efficiency
- Operating Temperature
- Storage Temperature
- Storage Humidity
- Output Rating
- MTBF (hours @ 25°C)
- Dimensions (D x W x H)
- Safety
- Manufacturer
- Mini
- 500W
- DC to DC
- 110V @ <7A; 220V @ <3.5A
- 110 ~ 220V
- 47 ~ 63 Hz
- 84%
- 0 ~ 50°C
- -20 ~ 80°C
- 5 ~ 90% RH
- +3.3V @ 20A;
+5V @ 20A;
+12V1 @ 16A;
+12V2 @ 16A;
+12V3 @ 16A;
-12V @ 0.5A;
-5V @ 0.3A;
+5Vsb @ 3A;
- 100K
- 190 x 150 x 84 mm
- CE
- FSP
Power Supply
-
Form Factor
96PSR-D500WMIN Mini -
Output Power
96PSR-D500WMIN 500W -
Input Power
96PSR-D500WMIN DC to DC -
Input Current (maximum)
96PSR-D500WMIN 110V @ <7A; 220V @ <3.5A -
Input Voltage
96PSR-D500WMIN 110 ~ 220V -
Input Frequency
96PSR-D500WMIN 47 ~ 63 Hz -
Efficiency
96PSR-D500WMIN 84% -
Operating Temperature
96PSR-D500WMIN 0 ~ 50°C -
Storage Temperature
96PSR-D500WMIN -20 ~ 80°C -
Storage Humidity
96PSR-D500WMIN 5 ~ 90% RH -
Output Rating
96PSR-D500WMIN +3.3V @ 20A;
+5V @ 20A;
+12V1 @ 16A;
+12V2 @ 16A;
+12V3 @ 16A;
-12V @ 0.5A;
-5V @ 0.3A;
+5Vsb @ 3A; -
MTBF (hours @ 25°C)
96PSR-D500WMIN 100K -
Dimensions (D x W x H)
96PSR-D500WMIN 190 x 150 x 84 mm -
Safety
96PSR-D500WMIN CE -
Manufacturer
96PSR-D500WMIN FSP
