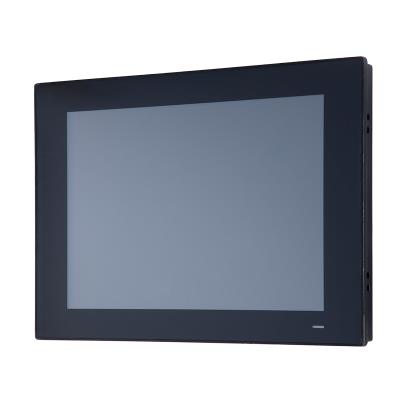

PPC-312 EHL
12" Fanless Panel PC with Intel® Celeron® J6412 Processor

Contact Us
Back
New
All Images
  • Industrial-grade 12" XGA TFT LCD with 30K backlight lifetime
  • Durable true-flat touchscreen with 5-wire resistive/projected capacitive touch control
  • Intel® Celeron® J6412 quad-core, 2.0 GHz, processor
  • Up to 32 GB DDR4 SDRAM
  • 1 x RS-232, 1 x RS-232/422/485, 2 x USB 2.0, and 2 x USB 3.1
  • Compact, fanless design with solid aluminum alloy enclosure and IP66-rated front panel
  • Supports E-key for wireless module
  • Supports expansion via M.2 slot
  • Supports Windows Embedded Linux and Android OS
Datasheet (PDF)
Documents & Downloads
The PPC-312 EHL is an industrial panel PC powered by low-power Intel J6412 processer, and provides type C that enables advanced compatibility in diverse industrial applications. PPC-312 EHL is embedded with M.2 M-Key and E-Key slots support for storage expansion and wireless module.

Product Specifications Download Spec

  • Part Number
  • Details
Environment
  • Ingress Protection
  • Operating Temperature
  • Relative Humidity
  • Storage Temperature
  • Vibration Protection
Hardware
  • Certification
  • CPU
  • Ethernet
  • Expansion
  • Hardware Security
  • I/O
  • LAN
  • Memory
  • OS Support
  • Power Consumption
  • Power Input
I/O Interface
  • Power Connector
  • Serial Ports
LCD Display
  • Backlight Life (hrs)
  • Display Size
  • Luminance (cd/m2)
  • Max. Resolution
  • Viewing Angle (H/V°)
Mechanical
  • Dimension (W x H x D)
  • Enclosure
  • Mounting
  • Weight (Net)
Touchscreen
  • Touch Type
USB Vision
  • Connector

Environment

  • Ingress Protection

    PPC-312-PJ60A Front Panel IP66
    PPC-312-RJ60A Front Panel IP66

  • Operating Temperature

    PPC-312-PJ60A -10~50 °C (14~122 °F)
    PPC-312-RJ60A -10~50 °C (14~122 °F)

  • Relative Humidity

    PPC-312-PJ60A 95% RH (non-condensing)
    PPC-312-RJ60A 95% RH (non-condensing)

  • Storage Temperature

    PPC-312-PJ60A -20~60 °C (-4~140 °F)
    PPC-312-RJ60A -20~60 °C (-4~140 °F)

  • Vibration Protection

    PPC-312-PJ60A 2 Grms, random
    PPC-312-RJ60A 2 Grms, random

Hardware

  • Certification

    PPC-312-PJ60A CE, FCC Class B, BSMI, CB, UL, CCC, UKCA, VCCI
    PPC-312-RJ60A CE, FCC Class B, BSMI, CB, UL, CCC, UKCA, VCCI

  • CPU

    PPC-312-PJ60A Intel® Celeron® J6412 2.00 GHz, Quad core
    PPC-312-RJ60A Intel® Celeron® J6412 2.00 GHz, Quad core

  • Ethernet

    PPC-312-PJ60A Intel® i225-LM
    PPC-312-RJ60A Intel® i225-LM

  • Expansion

    PPC-312-PJ60A 1 x M.2 E Key 2230
    PPC-312-RJ60A 1 x M.2 E Key 2230

  • Hardware Security

    PPC-312-PJ60A TPM 2.0
    PPC-312-RJ60A TPM 2.0

  • I/O

    PPC-312-PJ60A 1 x RS-232, 1 x RS-232/422/485, 2 x USB 3.0, 2 x USB 2.0, 1 x HDMI
    PPC-312-RJ60A 1 x RS-232, 1 x RS-232/422/485, 2 x USB 3.0, 2 x USB 2.0, 1 x HDMI

  • LAN

    PPC-312-PJ60A 2 x 10/100/1000/2500 Mbps
    PPC-312-RJ60A 2 x 10/100/1000/2500 Mbps

  • Memory

    PPC-312-PJ60A 1 x DDR4 SO-DIMM Slot
    PPC-312-RJ60A 1 x DDR4 SO-DIMM Slot

  • OS Support

    PPC-312-PJ60A Microsoft® Windows 10 LTSC, Microsoft® Windows 11, Linux, Android
    PPC-312-RJ60A Microsoft® Windows 10 LTSC, Microsoft® Windows 11, Linux, Android

  • Power Consumption

    PPC-312-PJ60A 40 W @ 19 VDC
    PPC-312-RJ60A 40 W @ 19 VDC

  • Power Input

    PPC-312-PJ60A 12~30 VDC
    PPC-312-RJ60A 12~30 VDC

I/O Interface

  • Power Connector

    PPC-312-PJ60A 1 x 2-Pin Terminal Block
    PPC-312-RJ60A 1 x 2-Pin Terminal Block

  • Serial Ports

    PPC-312-PJ60A 1 x RS-232, 1 x RS-232/422/485
    PPC-312-RJ60A 1 x RS-232, 1 x RS-232/422/485

LCD Display

  • Backlight Life (hrs)

    PPC-312-PJ60A 30,000
    PPC-312-RJ60A 30,000

  • Display Size

    PPC-312-PJ60A 12"
    PPC-312-RJ60A 12"

  • Luminance (cd/m2)

    PPC-312-PJ60A 500
    PPC-312-RJ60A 500

  • Max. Resolution

    PPC-312-PJ60A 1024 x 768
    PPC-312-RJ60A 1024 x 768

  • Viewing Angle (H/V°)

    PPC-312-PJ60A 170/178
    PPC-312-RJ60A 170/178

Mechanical

  • Dimension (W x H x D)

    PPC-312-PJ60A 317 x 246 x 52 mm
    PPC-312-RJ60A 317 x 246 x 52 mm

  • Enclosure

    PPC-312-PJ60A Die-cast aluminum alloy
    PPC-312-RJ60A Die-cast aluminum alloy

  • Mounting

    PPC-312-PJ60A Stand, Wall, VESA, Panel
    PPC-312-RJ60A Stand, Wall, VESA, Panel

  • Weight (Net)

    PPC-312-PJ60A 3.16 kg (8.14 lb)
    PPC-312-RJ60A 3.16 kg (8.14 lb)

Touchscreen

  • Touch Type

    PPC-312-PJ60A PCAP
    PPC-312-RJ60A 5-wire resistive

USB Vision

  • Connector

    PPC-312-PJ60A 2 x USB 3.0 Type A, 2 x USB 2.0 Type A
    PPC-312-RJ60A 2 x USB 3.0 Type A, 2 x USB 2.0 Type A
