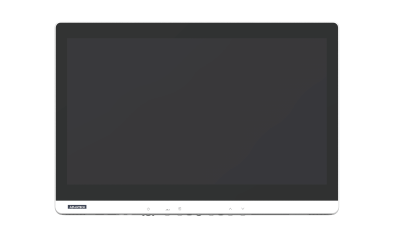

PAX-121 (F Model)
PAX-121 fixed model is a versatile medical touch monitor with IP54 environmental protection. With touchscreen and cover glass options.

Contact Us
Back
New
All Images
  • Wide 21.5 screen with Full HD 1920x1080 resolution
  • Fanless design with upgrade IP54-rated protection for superior hygiene and infection control
  • With 10 point multi-touch control function
  • Compliant with IEC/EN 60601-1-2 EMC, IEC/EN 60601-1 MDR, UL60601-1 standards for medical devices
Datasheet (PDF)
Documents & Downloads
Advantech’s PAX-121 is a 21.5" medical display designed for use in clinical application with high-precision & quality imaging for DICOM compliance.

Product Specifications (4) Download Spec

  • Part Number
  • Details
LCD
  • Screen Size
  • Resolution
  • Aspect Ratio
  • Pixel Pitch
  • Viewing Angle
  • Contrast Ratio (Typ.)
  • Native Luminance (Typ.)
  • Color Depth
  • Display Mode
  • Response Time
  • Touchscreen
Input
  • DP 1.2 Input DP Jack x 1
  • HDMI 2.0 Input HDMI Jack x 1 (Type A)
  • DVI Input DVI Jack x 1 (Type D)
  • USB Up
Output
  • HDMI 2.0 Output/HDMI Jack x 1 (Type A)
  • Audio
Environment
  • Temperature
Power
  • Rating
  • Consumption
Enclosure Color
  • -
Physical Characteristics
  • IP Ratings
  • VESA Mount
  • Dimensions (W x D x H)
  • Weight
Certifications
  • -
Warranty
  • -

LCD

  • Screen Size

    PAX-121B-C2A-LFD 21.53''
    PAX-121B-C2A-LFC 21.53''
    PAX-121W-C2A-LFD 21.53''
    PAX-121W-C2A-LFC 21.53''

  • Resolution

    PAX-121B-C2A-LFD 1920 x 1080
    PAX-121B-C2A-LFC 1920 x 1080
    PAX-121W-C2A-LFD 1920 x 1080
    PAX-121W-C2A-LFC 1920 x 1080

  • Aspect Ratio

    PAX-121B-C2A-LFD 16:9
    PAX-121B-C2A-LFC 16:9
    PAX-121W-C2A-LFD 16:9
    PAX-121W-C2A-LFC 16:9

  • Pixel Pitch

    PAX-121B-C2A-LFD 0.08265 x 0.24795mm
    PAX-121B-C2A-LFC 0.08265 x 0.24795mm
    PAX-121W-C2A-LFD 0.08265 x 0.24795mm
    PAX-121W-C2A-LFC 0.08265 x 0.24795mm

  • Viewing Angle

    PAX-121B-C2A-LFD 178°/ 178°
    PAX-121B-C2A-LFC 178°/ 178°
    PAX-121W-C2A-LFD 178°/ 178°
    PAX-121W-C2A-LFC 178°/ 178°

  • Contrast Ratio (Typ.)

    PAX-121B-C2A-LFD 1000 : 1
    PAX-121B-C2A-LFC 1000 : 1
    PAX-121W-C2A-LFD 1000 : 1
    PAX-121W-C2A-LFC 1000 : 1

  • Native Luminance (Typ.)

    PAX-121B-C2A-LFD 250 cd/m2
    PAX-121B-C2A-LFC 250 cd/m2
    PAX-121W-C2A-LFD 250 cd/m2
    PAX-121W-C2A-LFC 250 cd/m2

  • Color Depth

    PAX-121B-C2A-LFD 6-bit 16.7M Colors
    PAX-121B-C2A-LFC 6-bit 16.7M Colors
    PAX-121W-C2A-LFD 6-bit 16.7M Colors
    PAX-121W-C2A-LFC 6-bit 16.7M Colors

  • Display Mode

    PAX-121B-C2A-LFD Transmissive mode, normally black
    PAX-121B-C2A-LFC Transmissive mode, normally black
    PAX-121W-C2A-LFD Transmissive mode, normally black
    PAX-121W-C2A-LFC Transmissive mode, normally black

  • Response Time

    PAX-121B-C2A-LFD 14ms (Tr + Tf)
    PAX-121B-C2A-LFC 14ms (Tr + Tf)
    PAX-121W-C2A-LFD 14ms (Tr + Tf)
    PAX-121W-C2A-LFC 14ms (Tr + Tf)

  • Touchscreen

    PAX-121B-C2A-LFD Clear Glass
    PAX-121B-C2A-LFC 10-point multi touch P-CAP
    PAX-121W-C2A-LFD Clear Glass
    PAX-121W-C2A-LFC 10-point multi touch P-CAP

Input

  • DP 1.2 Input DP Jack x 1

    PAX-121B-C2A-LFD DisplayPort 1.2, 1920 x 1080 @ 60Hz max.
    PAX-121B-C2A-LFC DisplayPort 1.2, 1920 x 1080 @ 60Hz max.
    PAX-121W-C2A-LFD DisplayPort 1.2, 1920 x 1080 @ 60Hz max.
    PAX-121W-C2A-LFC DisplayPort 1.2, 1920 x 1080 @ 60Hz max.

  • HDMI 2.0 Input HDMI Jack x 1 (Type A)

    PAX-121B-C2A-LFD Digital RGB: TMDS, 1920 x 1080 @ 60Hz max.
    PAX-121B-C2A-LFC Digital RGB: TMDS, 1920 x 1080 @ 60Hz max.
    PAX-121W-C2A-LFD Digital RGB: TMDS, 1920 x 1080 @ 60Hz max.
    PAX-121W-C2A-LFC Digital RGB: TMDS, 1920 x 1080 @ 60Hz max.

  • DVI Input DVI Jack x 1 (Type D)

    PAX-121B-C2A-LFD Digital RGB: TMDS, 1920 x 1080 @ 60 Hz max.
    PAX-121B-C2A-LFC Digital RGB: TMDS, 1920 x 1080 @ 60 Hz max.
    PAX-121W-C2A-LFD Digital RGB: TMDS, 1920 x 1080 @ 60 Hz max.
    PAX-121W-C2A-LFC Digital RGB: TMDS, 1920 x 1080 @ 60 Hz max.

  • USB Up

    PAX-121B-C2A-LFD USB-B Jack x 1
    PAX-121B-C2A-LFC USB-B Jack x 1
    PAX-121W-C2A-LFD USB-B Jack x 1
    PAX-121W-C2A-LFC USB-B Jack x 1

Output

  • HDMI 2.0 Output/HDMI Jack x 1 (Type A)

    PAX-121B-C2A-LFD Digital RGB: TMDS, 1920 x 1080 @ 60 Hz max.
    PAX-121B-C2A-LFC Digital RGB: TMDS, 1920 x 1080 @ 60 Hz max.
    PAX-121W-C2A-LFD Digital RGB: TMDS, 1920 x 1080 @ 60 Hz max.
    PAX-121W-C2A-LFC Digital RGB: TMDS, 1920 x 1080 @ 60 Hz max.

  • Audio

    PAX-121B-C2A-LFD Audio Jack x 1
    PAX-121B-C2A-LFC Audio Jack x 1
    PAX-121W-C2A-LFD Audio Jack x 1
    PAX-121W-C2A-LFC Audio Jack x 1

Environment

  • Temperature

    PAX-121B-C2A-LFD Operational: 0~40° C / Storage: -20~60° C
    PAX-121B-C2A-LFC Operational: 0~40° C / Storage: -20~60° C
    PAX-121W-C2A-LFD Operational: 0~40° C / Storage: -20~60° C
    PAX-121W-C2A-LFC Operational: 0~40° C / Storage: -20~60° C

Power

  • Rating

    PAX-121B-C2A-LFD DC 12V, 5.42A max.
    PAX-121B-C2A-LFC DC 12V, 5.42A max.
    PAX-121W-C2A-LFD DC 12V, 5.42A max.
    PAX-121W-C2A-LFC DC 12V, 5.42A max.

  • Consumption

    PAX-121B-C2A-LFD 65 W max.
    PAX-121B-C2A-LFC 65 W max.
    PAX-121W-C2A-LFD 65 W max.
    PAX-121W-C2A-LFC 65 W max.

Enclosure Color

  • -

    PAX-121B-C2A-LFD Blue
    PAX-121B-C2A-LFC Blue
    PAX-121W-C2A-LFD White
    PAX-121W-C2A-LFC White

Physical Characteristics

  • IP Ratings

    PAX-121B-C2A-LFD Front IP65 / System IP54
    PAX-121B-C2A-LFC Front IP65 / System IP54
    PAX-121W-C2A-LFD Front IP65 / System IP54
    PAX-121W-C2A-LFC Front IP65 / System IP54

  • VESA Mount

    PAX-121B-C2A-LFD 100 x 100; 75 x 75 mm
    PAX-121B-C2A-LFC 100 x 100; 75 x 75 mm
    PAX-121W-C2A-LFD 100 x 100; 75 x 75 mm
    PAX-121W-C2A-LFC 100 x 100; 75 x 75 mm

  • Dimensions (W x D x H)

    PAX-121B-C2A-LFD 524 x 357 x 58 mm
    PAX-121B-C2A-LFC 524 x 357 x 58 mm
    PAX-121W-C2A-LFD 524 x 357 x 58 mm
    PAX-121W-C2A-LFC 524 x 357 x 58 mm

  • Weight

    PAX-121B-C2A-LFD 5.5 Kg
    PAX-121B-C2A-LFC 5.5 Kg
    PAX-121W-C2A-LFD 5.5 Kg
    PAX-121W-C2A-LFC 5.5 Kg

Certifications

  • -

    PAX-121B-C2A-LFD CCC, CE, FCC Class B, UL60601-1, IEC/EN 60601-1, IEC/EN 60601-1-2(EMC)
    PAX-121B-C2A-LFC CCC, CE, FCC Class B, UL60601-1, IEC/EN 60601-1, IEC/EN 60601-1-2(EMC)
    PAX-121W-C2A-LFD CCC, CE, FCC Class B, UL60601-1, IEC/EN 60601-1, IEC/EN 60601-1-2(EMC)
    PAX-121W-C2A-LFC CCC, CE, FCC Class B, UL60601-1, IEC/EN 60601-1, IEC/EN 60601-1-2(EMC)

Warranty

  • -

    PAX-121B-C2A-LFD 2 years
    PAX-121B-C2A-LFC 2 years
    PAX-121W-C2A-LFD 3 years
    PAX-121W-C2A-LFC 3 years

Support

Datasheet (PDF) Documents & Downloads

Need more info? Talk to our Online Rep!

Inquiry Form

Accessories

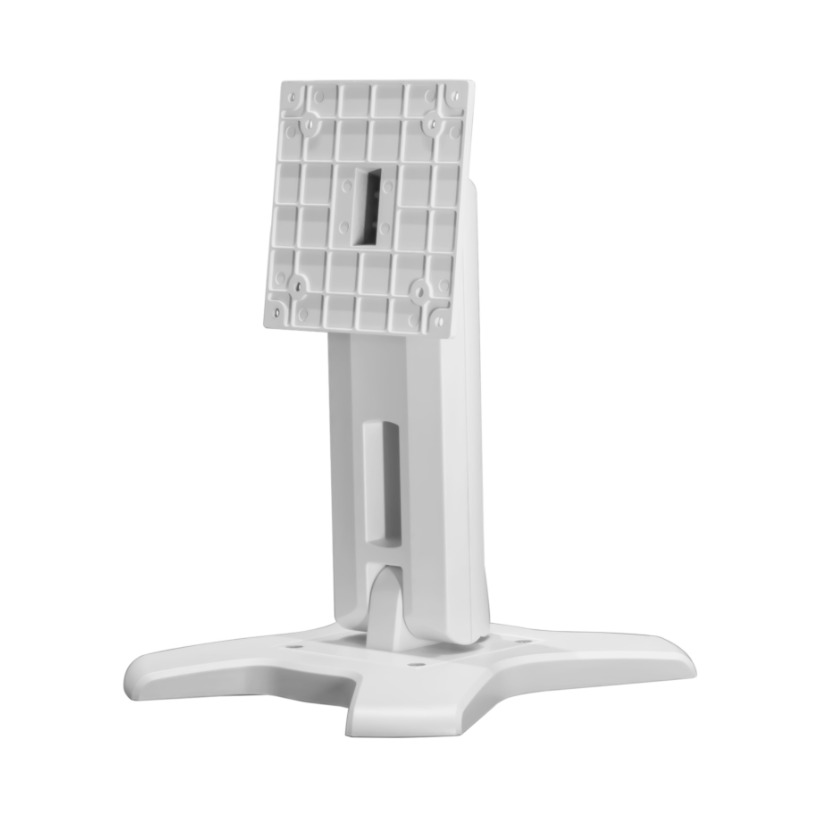

ARES-2424X-S170200
