PAX-124 (M Model)
PAX-124 multimodal model is a versatile medical touch monitor with optional IP54 environmental protection. With touchscreen and cover glass options.

Contact Us
Back
New
All Images
  • Wide 23.8 screen with Full HD 1920x1080 resolution
  • Fanless design with optional upgrade IP54-rated protection for superior hygiene and infection control
  • Multimodal design for easy upgrades and maintenance
  • With 10 point multi-touch control function
Datasheet (PDF)
Documents & Downloads
Advantech’s PAX-124 is a 23.8" medical display designed for use in clinical application. Modularized design enables one step to upgrade to all-in-one computer with easy maintenance feature as well.

Product Specifications Download Spec

  • Part Number
  • Details
LCD
  • Screen Size
  • Resolution
  • Aspect Ratio
  • Pixel Pitch
  • Viewing Angle
  • Contrast Ratio (Typ.)
  • Native Luminance (Typ.)
  • Color Depth
  • Display Mode
  • Response Time
  • Touchscreen
Input
  • DP 1.2 Input DP Jack x 1
  • HDMI 2.0 Input HDMI Jack x 1 (Type A)
  • DVI Input DVI Jack x 1 (Type D)
  • USB Up
  • Audio Input
Output
  • HDMI 2.0 Output/HDMI Jack x 1 (Type A)
  • Audio
Environment
  • Temperature
Power
  • Rating
  • Consumption
Enclosure Color
  • -
Physical Characteristics
  • IP Ratings
  • VESA Mount
  • Dimensions (W x D x H)
  • Weight
Certifications
  • -
Warranty
  • -

LCD

  • Screen Size

    PAX-124G-C2A-LMC 23.8"
    PAX-124G-C2A-LMD 23.8"

  • Resolution

    PAX-124G-C2A-LMC 1920 x 1080
    PAX-124G-C2A-LMD 1920 x 1080

  • Aspect Ratio

    PAX-124G-C2A-LMC 16:9
    PAX-124G-C2A-LMD 16:9

  • Pixel Pitch

    PAX-124G-C2A-LMC 0.270 x 0.270 mm
    PAX-124G-C2A-LMD 0.270 x 0.270 mm

  • Viewing Angle

    PAX-124G-C2A-LMC 178°/ 178°
    PAX-124G-C2A-LMD 178°/ 178°

  • Contrast Ratio (Typ.)

    PAX-124G-C2A-LMC 3000:1
    PAX-124G-C2A-LMD 3000:1

  • Native Luminance (Typ.)

    PAX-124G-C2A-LMC 250 cd/m2
    PAX-124G-C2A-LMD 250 cd/m2

  • Color Depth

    PAX-124G-C2A-LMC 8-bit 16.7M Colors
    PAX-124G-C2A-LMD 8-bit 16.7M Colors

  • Display Mode

    PAX-124G-C2A-LMC VA Mode, Normally Black
    PAX-124G-C2A-LMD VA Mode, Normally Black

  • Response Time

    PAX-124G-C2A-LMC 16ms (G to G) / 16ms (Tr + Tf)
    PAX-124G-C2A-LMD 16ms (G to G) / 16ms (Tr + Tf)

  • Touchscreen

    PAX-124G-C2A-LMC 10-point multi touch P-CAP
    PAX-124G-C2A-LMD Clear Glass

Input

  • DP 1.2 Input DP Jack x 1

    PAX-124G-C2A-LMC DisplayPort 1.2, 1920 x 1080 @ 60Hz max.
    PAX-124G-C2A-LMD DisplayPort 1.2, 1920 x 1080 @ 60Hz max.

  • HDMI 2.0 Input HDMI Jack x 1 (Type A)

    PAX-124G-C2A-LMC Digital RGB: TMDS, 1920 x 1080 @ 60Hz max.
    PAX-124G-C2A-LMD Digital RGB: TMDS, 1920 x 1080 @ 60Hz max.

  • DVI Input DVI Jack x 1 (Type D)

    PAX-124G-C2A-LMC Digital RGB: TMDS, 1920 x 1080 @ 60 Hz max.
    PAX-124G-C2A-LMD Digital RGB: TMDS, 1920 x 1080 @ 60 Hz max.

  • USB Up

    PAX-124G-C2A-LMC USB-B Jack x 1
    PAX-124G-C2A-LMD USB-B Jack x 1

  • Audio Input

    PAX-124G-C2A-LMC Audio Jack x 1
    PAX-124G-C2A-LMD Audio Jack x 1

Output

  • HDMI 2.0 Output/HDMI Jack x 1 (Type A)

    PAX-124G-C2A-LMC Digital RGB: TMDS, 1920 x 1080 @ 60 Hz max.
    PAX-124G-C2A-LMD Digital RGB: TMDS, 1920 x 1080 @ 60 Hz max.

  • Audio

    PAX-124G-C2A-LMC Audio Jack x 1
    PAX-124G-C2A-LMD Audio Jack x 1

Environment

  • Temperature

    PAX-124G-C2A-LMC Operational: 0~40° C / Storage: -20~60° C
    PAX-124G-C2A-LMD Operational: 0~40° C / Storage: -20~60° C

Power

  • Rating

    PAX-124G-C2A-LMC DC 12V, 5A max.
    PAX-124G-C2A-LMD DC 12V, 5A max.

  • Consumption

    PAX-124G-C2A-LMC 60W max.
    PAX-124G-C2A-LMD 60W max.

Enclosure Color

  • -

    PAX-124G-C2A-LMC Gray
    PAX-124G-C2A-LMD Gray

Physical Characteristics

  • IP Ratings

    PAX-124G-C2A-LMC Front IP65 / System IPX1, Optional for IP54
    PAX-124G-C2A-LMD Front IP65 / System IPX1, Optional for IP54

  • VESA Mount

    PAX-124G-C2A-LMC 100 x 100; 75 x 75 mm
    PAX-124G-C2A-LMD 100 x 100; 75 x 75 mm

  • Dimensions (W x D x H)

    PAX-124G-C2A-LMC 583 x 387 x 63 mm
    PAX-124G-C2A-LMD 583 x 387 x 63 mm

  • Weight

    PAX-124G-C2A-LMC 6.98 kg
    PAX-124G-C2A-LMD 6.98 kg

Certifications

  • -

    PAX-124G-C2A-LMC CCC,CE, FCC Class B
    PAX-124G-C2A-LMD CCC,CE, FCC Class B

Warranty

  • -

    PAX-124G-C2A-LMC 2 years
    PAX-124G-C2A-LMD 2 years

Support

Datasheet (PDF) Documents & Downloads

Need more info? Talk to our Online Rep!

Inquiry Form

Accessories

ARES-2423R-A741L00

ARES-2423R is a height adjusting desk stand compatib with 75x75 / 100x100 mm VESA patterns. It can tilt -5° (down) ~ +25° (up) and screens up to 27"

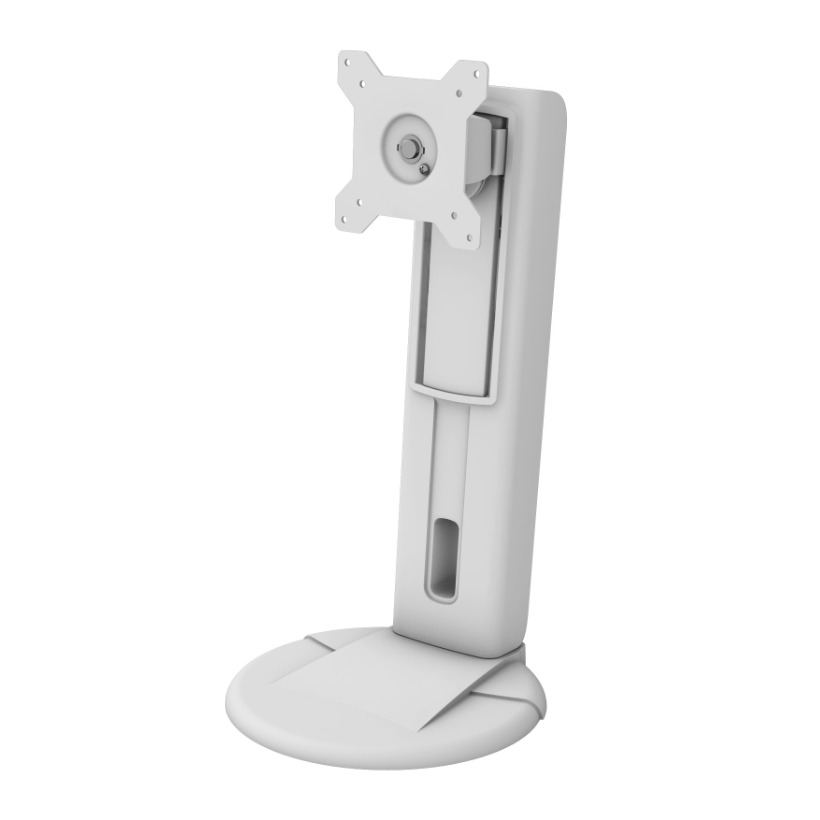

ARES-2421R-HA74100
