UTC-315 Series

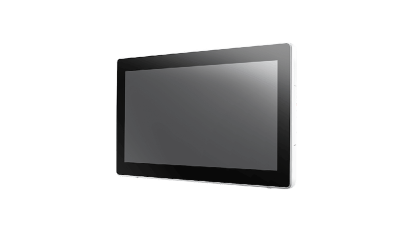

UTC-315K-IOT

15.6" PCAP Touch Computer with Win 11 LTSC, Intel N97 CPU, 8GB RAM, 256GB SSD, Wi-Fi, US power cord, Black

  • Low power and fanless system design
  • Built in Intel® Atom N97
  • 15.6" monitor with 16:9 widescreen display
  • IP65-rated front panel for water and dust resistance
  • Supports both landscape and portrait screen orientations
  • VESA 75 mm standard mounting holes for varied mounting demands
  • Detachable frame design for panel mount applications
  • Support TPM 2.0

Certifications:

Support Links:

Datasheet Technical Downloads
  • 15.6" PCAP Touch Computer with Win 11 LTSC, Intel N97 CPU, 8GB RAM, 256GB SSD, Wi-Fi, US power cord, Black

Specifications

Color
Color
  • Black
Display
Size
  • 15.6" TFT LCD
Max. Resolution
  • 1920 x 1080
Brightness
  • 220 cd/m²
Touch Screen
Type
  • Projected Capacitive Touch Panel (Pcap. Flat Glass)
Processor System
CPU
  • Intel® Processor N97
RAM
  • 8GB DDR5
OS
  • Windows 10 IoT Enterprise
Storage
  • 2.5" 128GB SATA SSD
I/O Interface
Serial Port
  • 1 x RS-232 (RJ-48) ; 1 x RS-232/422/485 (RJ-48)
USB Port
  • 1 x USB Type C DC IN, 1 x USB Type C, 2 x USB 3.2, 2 x USB 2.0 Type A
Ethernet
  • 2 x Gigabit Ethernet (RJ-45)
Output
  • 1 x HDMI
Audio
  • 1 x 3.5mm Universal Audio Jack
Extendable Slot
  • 1 x M.2 2280/2242 M-Key for NVMe(PCIe Gen3) / SATA SSD 1 x M.2 2230 E-Key
Environment
Operating Temperature
  • 0~40° C
Operating Humidity
  • 10 ~ 95% @ 40°C non-condensing
System Protection
  • IP65/ NEMA4 Compliant front panel
Vibration
  • 0.5G
Shock
  • 10G peak acceleration (11 msec. duration)
Power
Input Voltage
  • 12V DC
Peripheral
Wifi
  • Wi-Fi 5 802.11a/b/g/n/ac+BT 5.0 combo module

Accessories
