/WISE-4210-min20190829161355.jpg)
/WISE-4210-min20190829161622.jpg)
- Proprietary LPWAN (Sub-G) Wireless technology

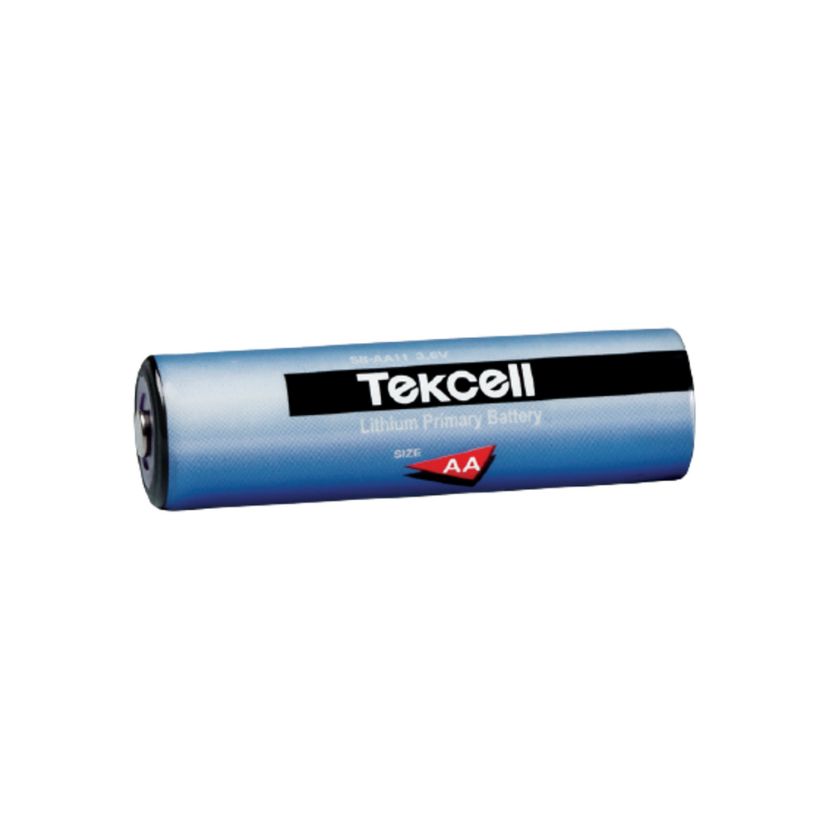

- Battery power for 5 years with 3 x 3.6V AA batteries
- Application-ready I/O combination with modularization design
- Support MQTT & Modbus/TCP protocol
- Up to 5 km communication range in open space
WISE-4210 utilizes a proprietary LPWAN wireless interface which eliminates network interference. With a kilometer-long communication distance and excellent battery power, WISE modules are ideal solutions for machine-to-machine and smart factory IoT applications.
Product Specifications Download Spec
- Part Number
- Details
-
WISE-4210-NA
-
WISE4210NA2001-T
- Data Transfer Rates
- 625 bps, 50 kbps
- 625 bps, 50 kbps
- Operating Temperature
- Relative Humidity
- Storage Humidity
- Storage Temperature
- -25~70 °C (-13~158 °F)
- -25~70 °C (-13~158 °F)
- 5~95% RH (non-condensing)
- 5~95% RH (non-condensing)
- 0~95% RH (non-condensing)
- 0~95% RH (non-condensing)
- -40~85 °C (-40~185 °F)
- -40~85 °C (-40~185 °F)
- Certification
- LED Indicators
- Power Consumption
- Power Input
- CE, FCC Class A, IC, NCC, TELEC
- CE, FCC Class A, IC, NCC, TELEC
- Status, Error, Tx, Rx, Battery/Signal Level
- Status, Error, Tx, Rx, Battery/Signal Level
- 0.8 W @ 24 VDC
- 0.8 W @ 24 VDC
- 10~50 VDC
- 10~50 VDC
- USB Ports
- 1 x Micro-B USB
- 1 x Micro-B USB
- Dimension (W x H x D)
- Mounting
- Weight (Net)
- 70 x 102 x 38 mm
- 70 x 102 x 38 mm
- DIN-rail, Wall, Pole, Stack
- DIN-rail, Wall, Pole, Stack
- 0.5 kg
- 0.5 kg
- Input Voltage
- 10~50 VDC
- 10~50 VDC
- Frequency Band
- Standard(Technology)
- US 923 (MHz), EU 868 (MHz)
- US 923 (MHz), EU 868 (MHz)
- Proprietary LPWAN
- Proprietary LPWAN
Communications
-
Data Transfer Rates
WISE-4210-NA 625 bps, 50 kbps WISE4210NA2001-T 625 bps, 50 kbps
Environment
-
Operating Temperature
WISE-4210-NA -25~70 °C (-13~158 °F) WISE4210NA2001-T -25~70 °C (-13~158 °F) -
Relative Humidity
WISE-4210-NA 5~95% RH (non-condensing) WISE4210NA2001-T 5~95% RH (non-condensing) -
Storage Humidity
WISE-4210-NA 0~95% RH (non-condensing) WISE4210NA2001-T 0~95% RH (non-condensing) -
Storage Temperature
WISE-4210-NA -40~85 °C (-40~185 °F) WISE4210NA2001-T -40~85 °C (-40~185 °F)
Hardware
-
Certification
WISE-4210-NA CE, FCC Class A, IC, NCC, TELEC WISE4210NA2001-T CE, FCC Class A, IC, NCC, TELEC -
LED Indicators
WISE-4210-NA Status, Error, Tx, Rx, Battery/Signal Level WISE4210NA2001-T Status, Error, Tx, Rx, Battery/Signal Level -
Power Consumption
WISE-4210-NA 0.8 W @ 24 VDC WISE4210NA2001-T 0.8 W @ 24 VDC -
Power Input
WISE-4210-NA 10~50 VDC WISE4210NA2001-T 10~50 VDC
I/O Interface
-
USB Ports
WISE-4210-NA 1 x Micro-B USB WISE4210NA2001-T 1 x Micro-B USB
Mechanical
-
Dimension (W x H x D)
WISE-4210-NA 70 x 102 x 38 mm WISE4210NA2001-T 70 x 102 x 38 mm -
Mounting
WISE-4210-NA DIN-rail, Wall, Pole, Stack WISE4210NA2001-T DIN-rail, Wall, Pole, Stack -
Weight (Net)
WISE-4210-NA 0.5 kg WISE4210NA2001-T 0.5 kg
Power Requirements
-
Input Voltage
WISE-4210-NA 10~50 VDC WISE4210NA2001-T 10~50 VDC
Wireless Communication
-
Frequency Band
WISE-4210-NA US 923 (MHz), EU 868 (MHz) WISE4210NA2001-T US 923 (MHz), EU 868 (MHz) -
Standard(Technology)
WISE-4210-NA Proprietary LPWAN WISE4210NA2001-T Proprietary LPWAN
/1760002647-0120230406134404.jpg)
Featured Highlights
-
Introduction of features and advantages of WISE-4200 Series
We will introduce the basic knowledge of WISE-4200 series, and introduce feature and advantages, to enable learners to understand how should they benefit from our solution.
