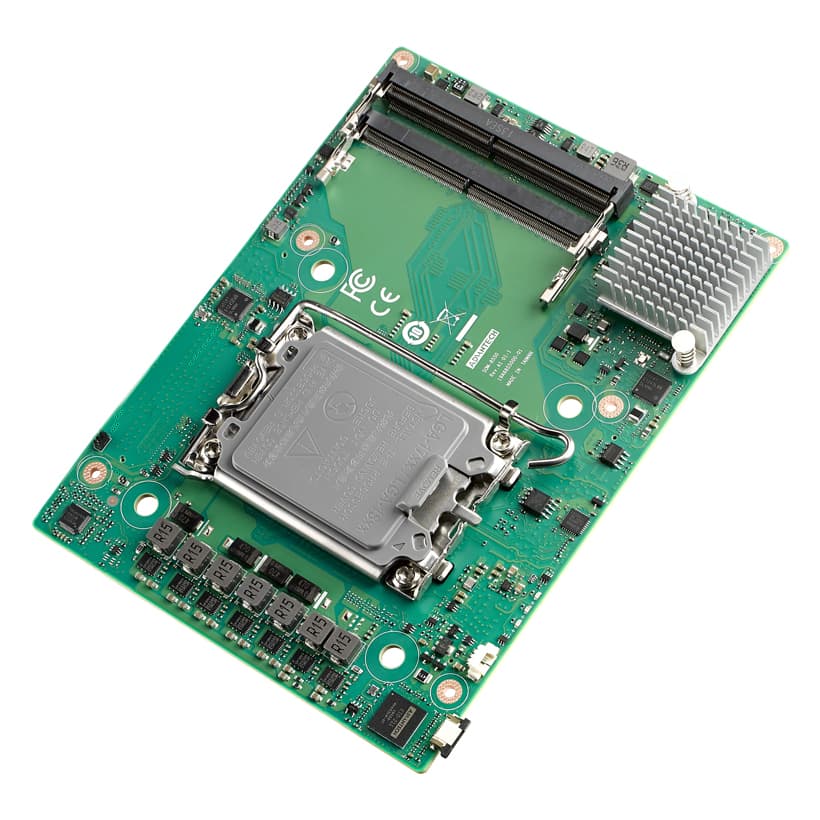

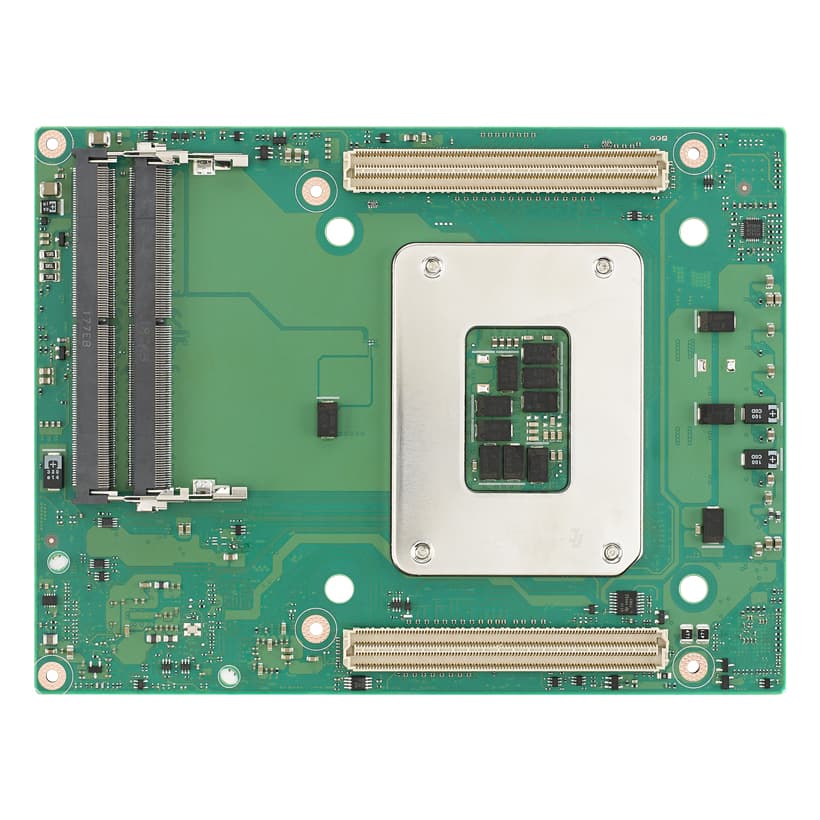

SOM-C350
13th/12th Gen Intel® Core™ processors (Raptor Lake-S/ Alder Lake-S) desktop socket type CPU COM-HPC Client Size C Module
- COM-HPC® Client Size C Module
- Intel® Raptor Lake-S/ Alder Lake-S desktop socket type CPU
- Up to 16 Cores, 24 Threads, 65W TDP
- Dual Channel DDR5 SODIMM, max. 128GB (Both ECC & Non-ECC)
- 16 PCIe Gen5 + 16 PCIe Gen4 + 10 PCIe Gen3 lanes
- Supports iManager, Embedded Software APIs, and WISE-DeviceOn
-50/SOM-C350_01_Square-(1)20211224163156.jpg)
Specifications
Form Factor
Form Factor
- COM-HPC® Size C Module
- COM-HPC® Size C Module
- COM-HPC® Size C Module
- COM-HPC® Size C Module
- COM-HPC® Size C Module
Pin-out Type
- COM-HPC® Client
- COM-HPC® Client
- COM-HPC® Client
- COM-HPC® Client
- COM-HPC® Client
Processor
CPU
- -
- -
- -
- -
- -
Core Number
- 12
- 6
- 24
- 24
- 14C (6P+8E)
LLC
- 25MB
- 18MB
- Up to 36MB
- Up to 36MB
- 24MB
Socket Type
- LGA 1700
- LGA 1700
- LGA 1700
- LGA 1700
- LGA 1700
Platform Controller Hub
- Intel R680E
- Intel R680E
- Intel R680E
- Intel R680E
- Intel R680E
BIOS
- AMI UEFI 256Mbit
- AMI UEFI 256Mbit
- AMI UEFI 256Mbit
- AMI UEFI 256Mbit
- AMI UEFI 256Mbit
Memory
Technology
- DDR5 3600 MT/s
1 DIMM 1R/2R-4000 (BIOS Setting Option)
2 DIMMs 1R-4000 (BIOS Setting Option)
2 DIMMs 2R-4000 (BIOS Setting Option) - DDR5 3600 MT/s
1 DIMM 1R/2R-4000 (BIOS Setting Option)
2 DIMMs 1R-4000 (BIOS Setting Option)
2 DIMMs 2R-4000 (BIOS Setting Option) - DDR5 3600 MT/s
1 DIMM 1R/2R-4000 (BIOS Setting Option)
2 DIMMs 1R-4000 (BIOS Setting Option)
2 DIMMs 2R-4000 (BIOS Setting Option) - DDR5 3600 MT/s
1 DIMM 1R/2R-4000 (BIOS Setting Option)
2 DIMMs 1R-4000 (BIOS Setting Option)
2 DIMMs 2R-4000 (BIOS Setting Option) - DDR5 3600 MT/s
1 DIMM 1R/2R-4000 (BIOS Setting Option)
2 DIMMs 1R-4000 (BIOS Setting Option)
2 DIMMs 2R-4000 (BIOS Setting Option)
ECC Support
- Yes/NO
- Yes/NO
- Yes/NO
- Yes/NO
- Yes/NO
Max. Capacity
- up to 128GB
- up to 128GB
- up to 128GB
- up to 128GB
- up to 128GB
Memory Type
- 4 SO-DIMM sockets
- 4 SO-DIMM sockets
- 4 SO-DIMM sockets
- 4 SO-DIMM sockets
- 4 SO-DIMM sockets
Display
eDP*
- eDP 1.4b HBR3
- eDP 1.4b HBR3
- eDP 1.4b HBR3
- eDP 1.4b HBR3
- eDP 1.4b HBR3
DDI (HDMI/DisplayPort)
- 3 DDI ports support configurable HDMI/DisplayPort -HDMI 2.1: 4096 x 2304 @ 60Hz -DisplayPort 1.4a HBR3: 4096x2304 60Hz 36bpp; 5120x3200 60Hz 24bpp
- 3 DDI ports support configurable HDMI/DisplayPort -HDMI 2.1: 4096 x 2304 @ 60Hz -DisplayPort 1.4a HBR3: 4096x2304 60Hz 36bpp; 5120x3200 60Hz 24bpp
- 3 DDI ports support configurable HDMI/DisplayPort -HDMI 2.1: 4096 x 2304 @ 60Hz -DisplayPort 1.4a HBR3: 4096x2304 60Hz 36bpp; 5120x3200 60Hz 24bpp
- 3 DDI ports support configurable HDMI/DisplayPort -HDMI 2.1: 4096 x 2304 @ 60Hz -DisplayPort 1.4a HBR3: 4096x2304 60Hz 36bpp; 5120x3200 60Hz 24bpp
- 3 DDI ports support configurable HDMI/DisplayPort -HDMI 2.1: 4096 x 2304 @ 60Hz -DisplayPort 1.4a HBR3: 4096x2304 60Hz 36bpp; 5120x3200 60Hz 24bpp
Multiple Display
- Quad Simultaneous Independent Display
- Quad Simultaneous Independent Display
- Quad Simultaneous Independent Display
- Quad Simultaneous Independent Display
- Quad Simultaneous Independent Display
Expansion
PCI Express
- - Gen5: 16 lanes, configurable to 1x16 / 2x8
- Gen4: 16 lanes
• 1x Gen4 x4 (from CPU)
• 12x Gen4 lanes (from PCH), configurable to x4 / x2 / x1
- Gen3: 10 lanes
• 8x Gen3 lanes, configurable to x4 / x2 / x1
• 2x Gen3 lanes, configurable to 2x1
(1 port may be reserved for BMC, configuration-dependent) - - Gen5: 16 lanes, configurable to 1x16 / 2x8
- Gen4: 16 lanes
• 1x Gen4 x4 (from CPU)
• 12x Gen4 lanes (from PCH), configurable to x4 / x2 / x1
- Gen3: 10 lanes
• 8x Gen3 lanes, configurable to x4 / x2 / x1
• 2x Gen3 lanes, configurable to 2x1
(1 port may be reserved for BMC, configuration-dependent) - - Gen5: 16 lanes, configurable to 1x16 / 2x8
- Gen4: 16 lanes
• 1x Gen4 x4 (from CPU)
• 12x Gen4 lanes (from PCH), configurable to x4 / x2 / x1
- Gen3: 10 lanes
• 8x Gen3 lanes, configurable to x4 / x2 / x1
• 2x Gen3 lanes, configurable to 2x1
(1 port may be reserved for BMC, configuration-dependent) - - Gen5: 16 lanes, configurable to 1x16 / 2x8
- Gen4: 16 lanes
• 1x Gen4 x4 (from CPU)
• 12x Gen4 lanes (from PCH), configurable to x4 / x2 / x1
- Gen3: 10 lanes
• 8x Gen3 lanes, configurable to x4 / x2 / x1
• 2x Gen3 lanes, configurable to 2x1
(1 port may be reserved for BMC, configuration-dependent) - - Gen5: 16 lanes, configurable to 1x16 / 2x8
- Gen4: 16 lanes
• 1x Gen4 x4 (from CPU)
• 12x Gen4 lanes (from PCH), configurable to x4 / x2 / x1
- Gen3: 10 lanes
• 8x Gen3 lanes, configurable to x4 / x2 / x1
• 2x Gen3 lanes, configurable to 2x1
(1 port may be reserved for BMC, configuration-dependent)
Serial Bus
SMBus
- Yes
- Yes
- Yes
- Yes
- Yes
I2 C Bus
- Yes, 1 port from EC (100kb/s & 400kb/s master mode support) and 1 port from PCH
- Yes, 1 port from EC (100kb/s & 400kb/s master mode support) and 1 port from PCH
- Yes, 1 port from EC (100kb/s & 400kb/s master mode support) and 1 port from PCH
- Yes, 1 port from EC (100kb/s & 400kb/s master mode support) and 1 port from PCH
- Yes, 1 port from EC (100kb/s & 400kb/s master mode support) and 1 port from PCH
Ethernet
Gigabit
- 2x 2.5 GbE
- 2x 2.5 GbE
- 2x 2.5 GbE
- 2x 2.5 GbE
- 2x 2.5 GbE
I/O
SATA
- 2 ports support SATA III 6.0Gb/s
- 2 ports support SATA III 6.0Gb/s
- 2 ports support SATA III 6.0Gb/s
- 2 ports support SATA III 6.0Gb/s
- 2 ports support SATA III 6.0Gb/s
USB 3.2
- Gen2x2:Option;
Gen2x1: 8 ports (only for Type A) - Gen2x2:Option;
Gen2x1: 8 ports (only for Type A) - Gen2x2:Option;
Gen2x1: 8 ports (only for Type A) - Gen2x2:Option;
Gen2x1: 8 ports (only for Type A) - Gen2x2:Option;
Gen2x1: 8 ports (only for Type A)
USB2.0
- 8 ports
- 8 ports
- 8 ports
- 8 ports
- 8 ports
SPI Bus
- 2 ports (for BIOS ROM and GP_SPI)
- 2 ports (for BIOS ROM and GP_SPI)
- 2 ports (for BIOS ROM and GP_SPI)
- 2 ports (for BIOS ROM and GP_SPI)
- 2 ports (for BIOS ROM and GP_SPI)
GPIO
- 12 GPIO Ports
- 12 GPIO Ports
- 12 GPIO Ports
- 12 GPIO Ports
- 12 GPIO Ports
Audio
- HD Audio Interface
- HD Audio Interface
- HD Audio Interface
- HD Audio Interface
- HD Audio Interface
Watchdog timer
- 65536 level, 0 ~ 65535 sec
- 65536 level, 0 ~ 65535 sec
- 65536 level, 0 ~ 65535 sec
- 65536 level, 0 ~ 65535 sec
- 65536 level, 0 ~ 65535 sec
COM Port
- 2 (2-wire)
- 2 (2-wire)
- 2 (2-wire)
- 2 (2-wire)
- 2 (2-wire)
TPM
- TPM 2.0 (optional)
- TPM 2.0 (optional)
- TPM 2.0 (optional)
- TPM 2.0 (optional)
- TPM 2.0 (optional)
Smart Fan
- 2 Ports; 1 Port on COM Module. Support 12V Fan, 1 Port on Carrier Board
- 2 Ports; 1 Port on COM Module. Support 12V Fan, 1 Port on Carrier Board
- 2 Ports; 1 Port on COM Module. Support 12V Fan, 1 Port on Carrier Board
- 2 Ports; 1 Port on COM Module. Support 12V Fan, 1 Port on Carrier Board
- 2 Ports; 1 Port on COM Module. Support 12V Fan, 1 Port on Carrier Board
Power
Power Type
- ATX: Vin, VSB; AT: Vin
- ATX: Vin, VSB; AT: Vin
- ATX: Vin, VSB; AT: Vin
- ATX: Vin, VSB; AT: Vin
- ATX: Vin, VSB; AT: Vin
Power Supply Voltage
- Vin: 12V (± 5%); VSB: 5V (± 5%), RTC Battery: 2.0V ~ 3.3V
- Vin: 12V (± 5%); VSB: 5V (± 5%), RTC Battery: 2.0V ~ 3.3V
- Vin: 12V (± 5%); VSB: 5V (± 5%), RTC Battery: 2.0V ~ 3.3V
- Vin: 12V (± 5%); VSB: 5V (± 5%), RTC Battery: 2.0V ~ 3.3V
- Vin: 12V (± 5%); VSB: 5V (± 5%), RTC Battery: 2.0V ~ 3.3V
Power Consumption
- Max.: 231.2W at 12V (i9-12900E)
Idel: 12.63W at 12V (i9-12900E)
*Only for reference and will depend on custom software loading. For more details please refer to the user manual. - Max.: 231.2W at 12V (i9-12900E)
Idel: 12.63W at 12V (i9-12900E)
*Only for reference and will depend on custom software loading. For more details please refer to the user manual. - Max.: 231.2W at 12V (i9-12900E)
Idel: 12.63W at 12V (i9-12900E)
*Only for reference and will depend on custom software loading. For more details please refer to the user manual. - Max.: 231.2W at 12V (i9-12900E)
Idel: 12.63W at 12V (i9-12900E)
*Only for reference and will depend on custom software loading. For more details please refer to the user manual. - Max.: 231.2W at 12V (i9-12900E)
Idel: 12.63W at 12V (i9-12900E)
*Only for reference and will depend on custom software loading. For more details please refer to the user manual.
Environment
Operational Temperature
- 0 ~ 60° C (32 ~ 140° F)
- 0 ~ 60° C (32 ~ 140° F)
- 0 ~ 60° C (32 ~ 140° F)
- 0 ~ 60° C (32 ~ 140° F)
- 0 ~ 60° C (32 ~ 140° F)
Storage Temperature
- - 40 ~ 85° C (-40 ~185° F)
- - 40 ~ 85° C (-40 ~185° F)
- - 40 ~ 85° C (-40 ~185° F)
- - 40 ~ 85° C (-40 ~185° F)
- - 40 ~ 85° C (-40 ~185° F)
Humidity
- Operating: 40° C @ 95% relative humidity, non-condensing; Storage: 60° C @ 95%relative humidity, non-condensing
- Operating: 40° C @ 95% relative humidity, non-condensing; Storage: 60° C @ 95%relative humidity, non-condensing
- Operating: 40° C @ 95% relative humidity, non-condensing; Storage: 60° C @ 95%relative humidity, non-condensing
- Operating: 40° C @ 95% relative humidity, non-condensing; Storage: 60° C @ 95%relative humidity, non-condensing
- Operating: 40° C @ 95% relative humidity, non-condensing; Storage: 60° C @ 95%relative humidity, non-condensing
Mechanical
Dimensions
- 160 x 120 mm (6.30" x 4.73")
- 160 x 120 mm (6.30" x 4.73")
- 160 x 120 mm (6.30" x 4.73")
- 160 x 120 mm (6.30" x 4.73")
- 160 x 120 mm (6.30" x 4.73")
