AIMB-233 / AIMB-286 with Customized BIOS for Medical Care Systems

4/30/2020

Application Requirements

Medical records are sensitive personal information. Leakage of such data incurs severe legal and/or financial penalties. Designers of medical care systems feel most concerned about security loopholes from the OS level down to the firmware level.

Challenge

Ensuring BIOS protection is difficult. Implementation is costly and requires intricate encryption mechanisms for protection. Compromised BIOS updates expose entire systems to malicious software lurking around.

Solution

Advantech provides a BIOS protection solution utilizing boot guard technology. Security verification is required during BIOS updating. Any BIOS that contains no Authenticated Code Module will be blocked. The recovery mechanism from failed BIOS updating further enhances system stability and security. Backup BIOS is securely stored in a designated location and called up when the recovery process initiates.

Key to Success

  • Cost-effective solution for BIOS security
  • Easy-to-use interface prioritizes boot devices
  • Auto-recovery from failed BIOS reduces operating costs

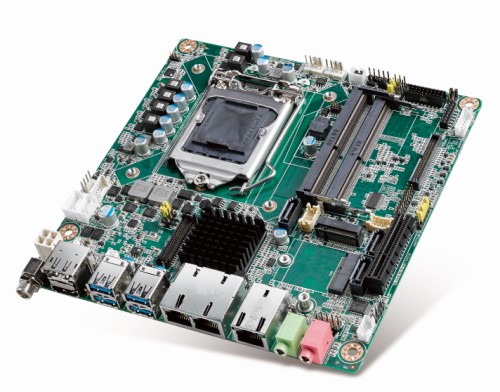

AIMB-233

  • Supports Intel® 8th/9th Gen Core™ i processor (LGA1151) with Intel H310 chipset
  • Two 260-pin SO-DIMM up to 32GB DDR4 2400 MHz SDRAM
  • Multiple display I/O supports versatile Tri display functions for HDMI, Type C Alt., LVDS/eDP
  • Supports PCIex1, 1 F/S miniPCIe, 2 M.2, 4 USB 3.1, 2 USB 3.0 and 2 SATA III
  • Supports wide range 12V~24V DC Input and low profile height
  • Supports WISE-PasS/RMM and Embedded Software APIs

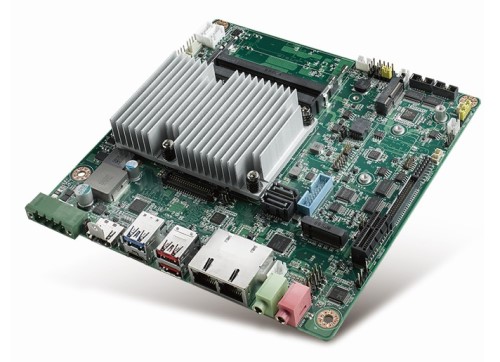

AIMB-286

  • Supports Intel® Core™ core i7-8665UE /i5-8365UE/I3-8145UE/Celereon 4305UE, 15W TDP, BGA 1528 16nm Processor
  • Two 260-pin SO-DIMM up to 32GB DDR4 2400 MHz SDRAM
  • Supports PCIe x 4 (Gen 3), 1 M.2 B key, 1 M.2 E key, 6 COM, 4 USB 3.0 and 3 SATA III
  • Supports dual display of DP/HDMI/LVDS (or eDP)
  • Supports TPM 1.2 / 2.0 (optional)
  • THIN Mini-ITX with 12V DC Input
