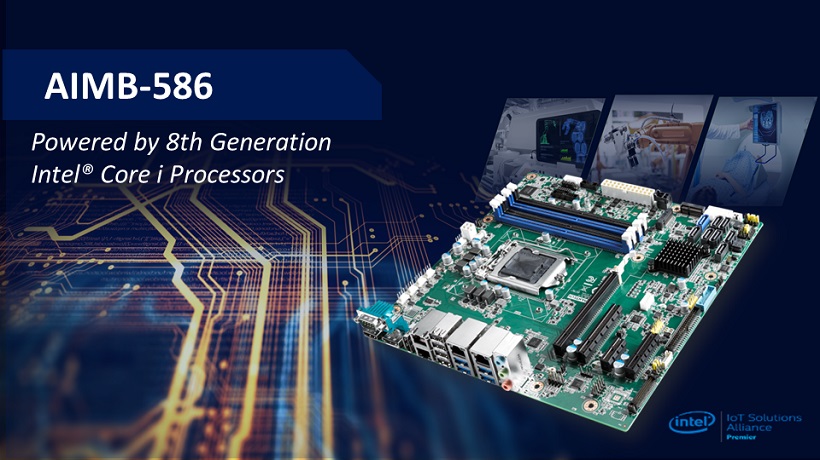

High Expandability AIMB-586 Micro-ATX with 8th Generation Intel® Core i Processors from Advantech
Advantech, the leading embedded computing solution provider introduces AIMB-586, the newest industrial-grade Micro-ATX motherboard based on the Intel® Q370/C246/H310 chipset supporting the latest 8th generation Intel® Core™ I /Pentium®/ Celeron® and E3 Xeon® processors. Providing high computing and graphic performance with high expandability, AIMB-586 is an ideal platform for multiple applications in medical, test & measurement equipment, surveillance, Robot AGV, robot controllers and more. It comes bundled with Advantech’s own WISE-PaaS/RMM software package that offers remote management and security features, plus smart software that boosts IoT applications from the edge to the cloud.
High Expandability and Rich I/O Connectivity
AIMB-586 is equipped with multiple high speed I/O including: 4 x USB 3.1, 2 x USB 3.0, 8 x USB 2.0 (2 from 2nd USB controller), 6 x SATAIII (C246 sku up to 8 x SATAIII), and 2 x M.2 (M-Key x 1; E-Key x 1) supporting NVMe storage and WiFi modules. It also supports 16-bit digital programmable I/O, 6 x COM (1 x supports RS-232/422/485) and a 6W audio amplifier (6W-2ch). AIMB-586 also comes with a maximum of four PCIe expansions: PCIe x16, 2 x PCIe x8 (BOM option), PCIe x4, or PCIe x1. The PCIe Gen3 x16 slot is reserved for high performance GPU cards, the x4 slot is suitable for beamformer cards, capture cards, or HW RAID cards for applications in medical, surveillance, and edge workstations. These high-speed I/O are packed into a standard Micro-ATX motherboard, which makes AIMB-586 suitable for all kinds of high-end applications.
Flexible Dual Power Support and Max 4 LANs Design
AIMB-586 provides flexibility with two power sources options, both ATX and 12V DC-in power sources have been implemented, so AIMB-586 is compliant with ATX PSUs and power adaptors. Moreover, AIMB-586 offers four Gigabit Ethernet ports and Intel iAMT 12.0 and vPro is supported (Q370/C246 PCH with selected CPU) making it highly suitable for network and security related applications.
Excellent Graphics Performance and Strict ESD Protection & Certification
With advanced HD graphics performance, AIMB-586 integrates Intel HD Graphics with DX11.1, OpenCL2.1, and OpenGL5.0 to deliver enhanced graphics performance. AIMB-586 supports three independent displays; either in clone mode or extended mode using HDMI, DisplayPort1.2, eDP, and LVDS (option) with high 4K2K resolution. With enhanced Electrostatic Discharge (ESD) design, AIMB-586 attains the (ESD) level 4 standard (contact 8kv and air 15kv) for high end applications. For medical appliances, an ESD tolerance level is one of the most crucial features needed to protect systems in sensitive environments. AIMB-586 comes bundled with Advantech’s WISE-PaaS/RMM which provides remote device management and system recovery powered by Acronis, and system protection powered by McAfee; allowing users to easily monitor, configure, control, and even recover multiple systems through a single console from any remote site.
- Supports the latest 8th generation Intel® E3 Xeon, Core™ i/ Pentium®/ Celeron® processors
- Supports dual channel DDR4 2666 MHz 288-pin of non-ECC/ECC RAM up to 64 GB
- Intel® Gfx support DX11.1, OpenCL 2.1, OpenGL 5.0
- Supports triple displays: eDP, HDMI (up to HDMI 2.0a), DisplayPort1.2, LVDS (Option)
- Rich I/O & expansion options: Dual/ Quad GbE LAN, 4 x USB 3.1, 2 x USB 3.0, 8 x USB 2.0, x SATAIII (C246 sku up to 8 x SATAIII), 6 x COM ports and 16-bit GPIO, 1 PCIe x16 or 2 PCIe x8, 1 PCIe x4, PCIe x1, 2 x M.2 ( M-Key x 1; E-Key x 1)
- ESD level 4 Design ( 8kv/15kv)
- FCC/CB Class B Certificate
